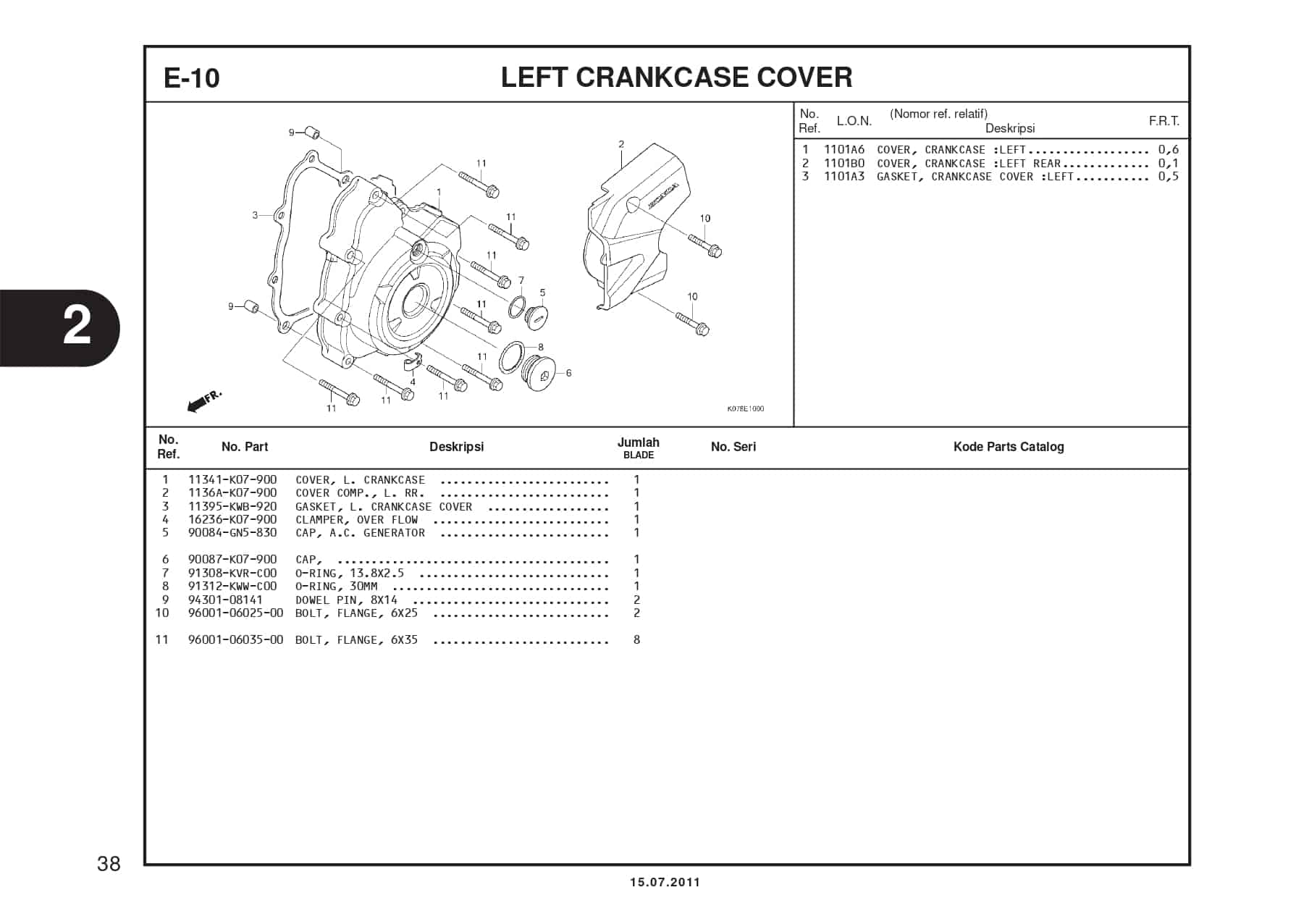

E-10 Left Crankcase Cover – Katalog Suku Cadang Honda Blade 110

#	Informasi Produk	Visual
1	COVER L CRANK CASE Part Number : `11341K07900`
2	COVER COMP L RR Part Number : `1136AK07900`
3	GASKET L CRANKCASE COVER Part Number : `11395KWB920`
4	CLAMPER OVER FLOW Part Number : `16236K07900`
5	CAP AC GEN Part Number : `90084GN5830`
6	CAP 30MM Part Number : `90087K07900`
6	CAP 30MM Part Number : `90087KGH900`
7	O-RING 13.8X2.5 Part Number : `91308KVRC00`
8	O-RING 30MM Part Number : `91312KWWC00`

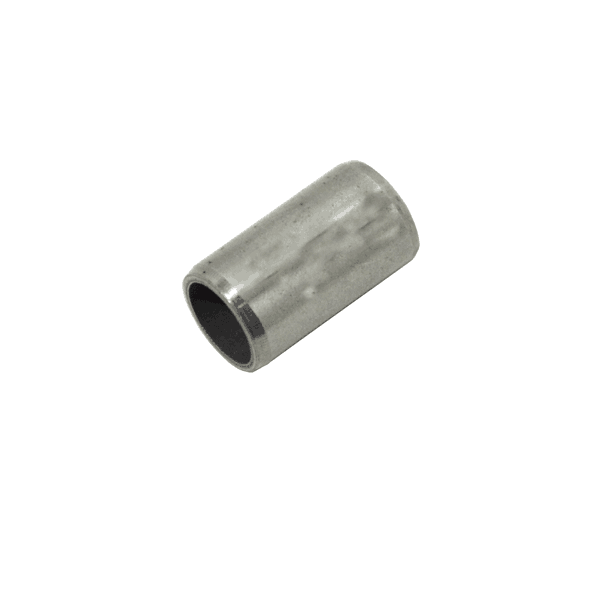

9	9430108140 Part Number : `9430108140`
10	BOLT FLANGE 6X25 Part Number : `960010602500`
11	BOLT FLANGE 6X35 Part Number : `960010603500`
