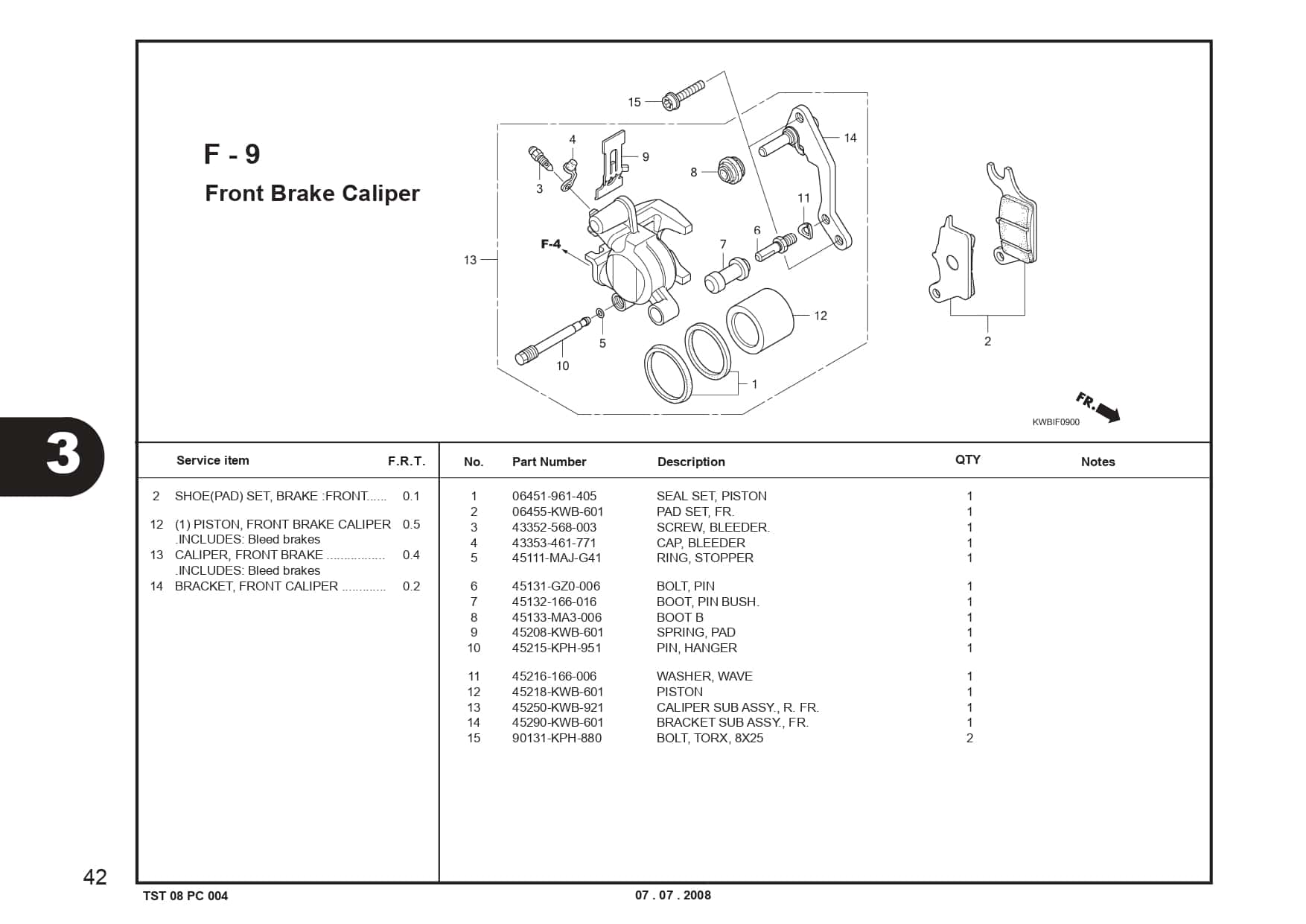

F-9 Front Brake Caliper – Katalog Suku Cadang Honda Blade 110

#	Informasi Produk	Visual
1	SEAL SET PISTON Part Number : `6451961405`
2	PAD SET FR Part Number : `06455KWB601`
3	SCREW,BLEEDER Part Number : `43352568003`
4	CAP,BLEEDER Part Number : `43353461771`
5	O-RING,2.5X1.5 Part Number : `45111MAJG41`
6	PIN,BOLT Part Number : `45131GZ0006`
7	BUSH PIN Part Number : `45132166016`
8	BOOT B,PIN Part Number : `45133MA3006`
9	SPRING PAD Part Number : `45208KWB601`
10	PIN HANGER Part Number : `45215KPH951`
11	WASHER,WAVE Part Number : `45216166006`
12	PISTON Part Number : `45218KWB601`
13	CALIPER SUB ASSY R Part Number : `45250KWB921`
14	BRACKET SUB ASSY FR Part Number : `45290KWB601`
15	BOLT TORX 8X25 Part Number : `90131KPH880`
