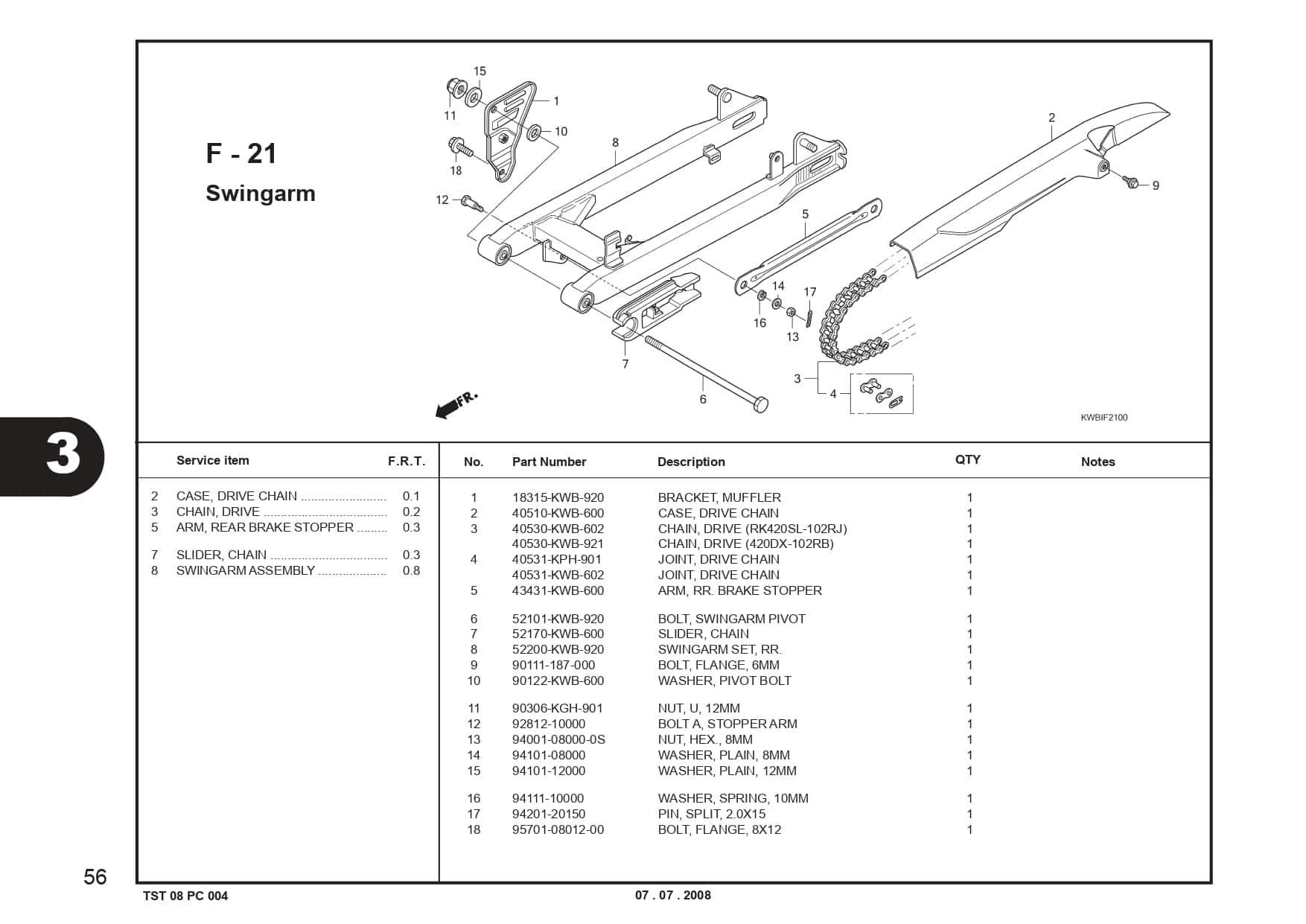

F-21 Swingarm – Katalog Suku Cadang Honda Blade 110

#	Informasi Produk	Visual
1	BRACKET MUFF Part Number : `18315KWB920`
2	CASE DRIVE CHAIN Part Number : `40510KWB600`
3	CHAIN DRIVE RK420SL-102RJ Part Number : `40530KWB602`
3	CHAIN DRIVE 420DX-102RB Part Number : `40530KWB921`
4	40531KPH901 Part Number : `40531KPH901`
4	JOINT RJ DRIVE CHAIN Part Number : `40531KWB602`
5	ARM RR BRK STPR Part Number : `43431KWB600`
6	BOLT SWINGARM PIVOT Part Number : `52101KWB920`
7	SLIDER CHAIN Part Number : `52170KWB600`
8	52200KWB920 Part Number : `52200KWB920`
9	BOLT FLANGE 6MM Part Number : `90111187000`
10	WASHER PIVOT BOLT Part Number : `90122KWB600`
11	NUT,U,12MM Part Number : `90306KGH901`
12	BOLT A ARM STOP Part Number : `9281210000`
13	NUT HEX 8MM Part Number : `94001080000S`
14	WASHER PLAIN 8MM Part Number : `9410108000`
15	WASHER PLAIN /K4 Part Number : `9410112000`
16	WASHER,SPRING10MM Part Number : `9411110000`
17	PIN COTTER 2.0X15 Part Number : `9420120150`
18	BOLT, FLANGE, 8X12 Part Number : `957010801200`
