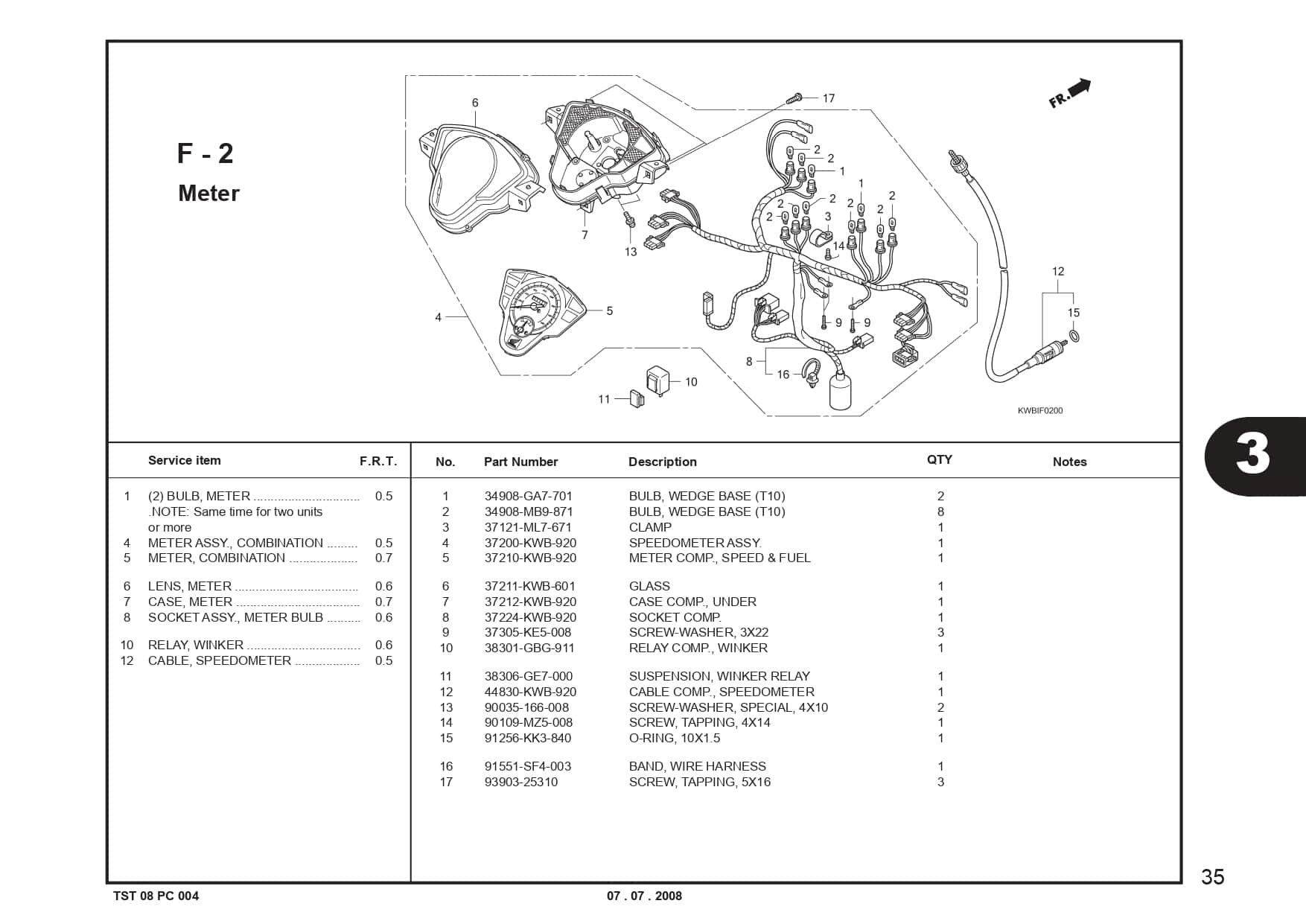

F-2 Meter – Katalog Suku Cadang Honda Blade 110

#	Informasi Produk	Visual
1	BULB W BASE Part Number : `34908GA7701`
2	BULB W BASE Part Number : `34908MB9871`
3	CLAMP Part Number : `37121ML7671`
4	SPEEDOMETER ASSY Part Number : `37200KWB920`
5	SPEEDOMETER COMP Part Number : `37210KWB920`
6	LENS Part Number : `37211KWB601`
7	CASE COMP UNDER Part Number : `37212KWB920`
8	SOCKET COMP Part Number : `37224KWB920`
9	SCREW WASHER (3X22) Part Number : `37305KE5008`
10	RELAY COMP WINKER Part Number : `38301GBG911`
11	SUSPENSION,RELAY Part Number : `38306GE7000`
12	CABLE COMP,SPDMT Part Number : `44830KWB940`
13	SCREW WASHER (4X10) Part Number : `90035166008`
14	SCRW.TAPP 4X14 Part Number : `90109MZ5008`
15	O-RING, 10X1.5 Part Number : `91256KK3840`
16	BAND WIRE HARN (POUND) Part Number : `91551SF4003`
17	SCREW TAPPING 5X16 Part Number : `9390325310`
