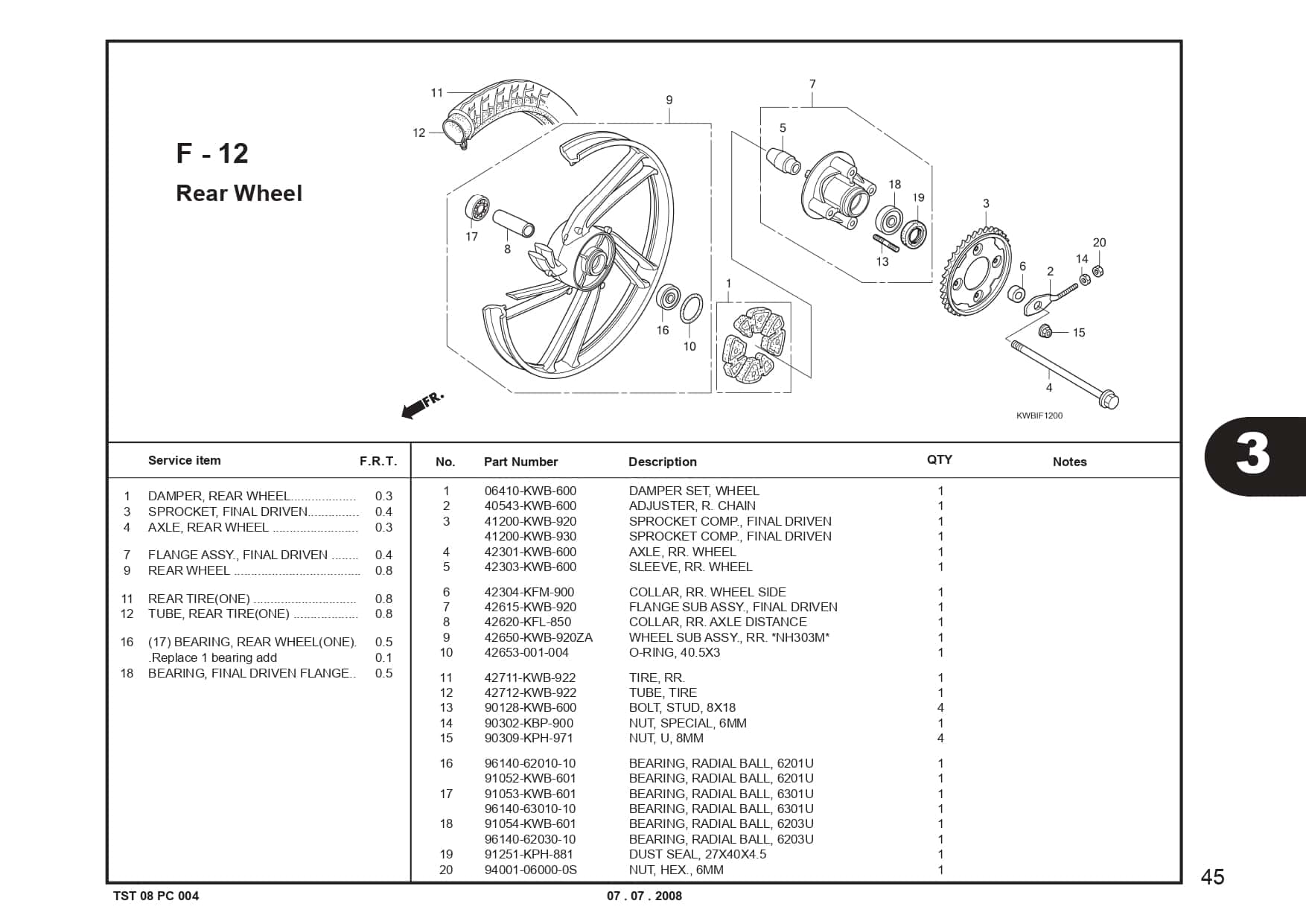

F-12 Rear Wheel – Katalog Suku Cadang Honda Blade 110

#	Informasi Produk	Visual
1	COLLAR RR WHEEL SIDE Part Number : `42304KFM900`
2	FLANGE SUB ASSY FIN Part Number : `42615KWB920`
3	COLLAR RR AXLE DIST Part Number : `42620KFL850`
4	42650KWB920ZA Part Number : `42650KWB920ZA`
5	O-RING 40.5X3 Part Number : `42653001004`
6	TIRE RR TT (80/90-17) Part Number : `42711KWB922`
6	TIRE RR TT (80/90-17) Part Number : `42711KWW010`
6	TIRE RR TT (80/90-17) Part Number : `42711KWW010TB`
7	Tube Tire (2.75-17) Part Number : `2751700000NR00`
8	BOLT STUD, 8X18 Part Number : `90128KWB600`
9	NUT SPECIAL 6MM Part Number : `90302KBP900`
10	NUT U, 8MM Part Number : `90309KPH971`
11	HB6201 Part Number : `961406201010`
12	91052KWB601 Part Number : `91052KWB601`
13	BRG, BALL RADIAL 6301(U) Part Number : `91053KWB601`
14	961406301010 Part Number : `961406301010`
15	91054KWB601 Part Number : `91054KWB601`
16	961406203010 Part Number : `961406203010`
17	DUST SEAL 27 X 40 X 4.5 Part Number : `91251KPH881`
18	NUT HEX 6MM Part Number : `94001060000S`
