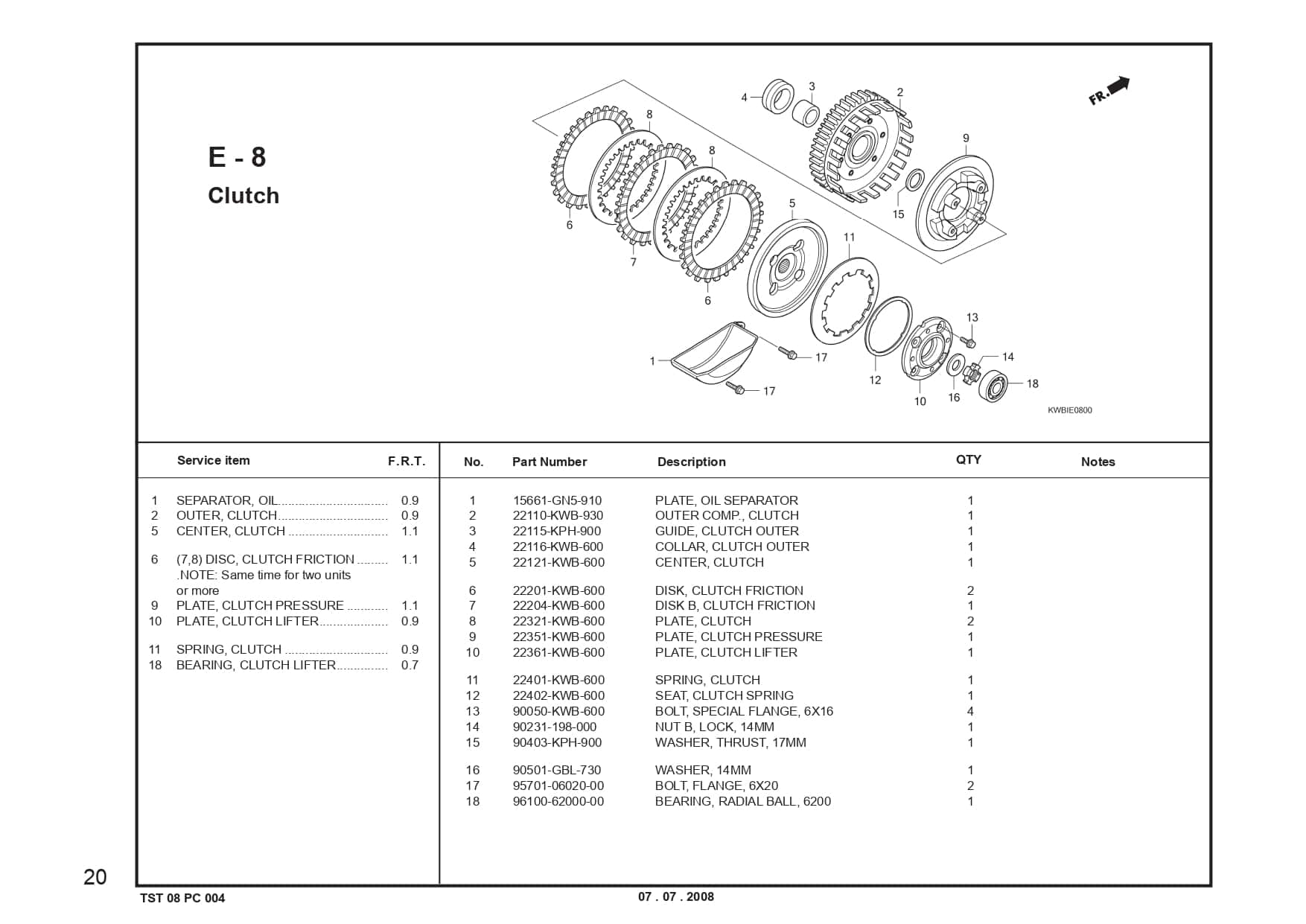

E-8 Clutch – Katalog Suku Cadang Honda Blade 110

#	Informasi Produk	Visual
1	PLATE OIL SEPARATER Part Number : `15661GN5910`
2	OUTER COMP CLUTCH Part Number : `22110KWB931`
3	GUIDE CLUTCH OUTER Part Number : `22115KPH900`
4	COLLAR CLUTCH OUTER Part Number : `22116KWB600`
5	CENTER CLUTCH Part Number : `22121KWB601`
6	DISK, CLUTCH FRICTION SET ( 2 pcs ) Part Number : `22201KWB603`
7	DISK B CLUTCH FRICTION Part Number : `22204KWB603`
8	PLATE CLUTCH Part Number : `22321KWB601`
9	PLATE CLUTCH PRESSURE Part Number : `22351KWB601`
10	PLATE CLUTCH LIFTER Part Number : `22361KWB601`
11	SPRING CLUTCH Part Number : `22401KWB601`
12	SEAT CLUTCH SPRING Part Number : `22402KWB601`
13	SPECIAL BOLT FLANGE 6X16 Part Number : `90050KWB601`
14	NUT B LOCK 14MM Part Number : `90231198000`
15	WASHER, THRUST 17MM Part Number : `90403KPH900`
16	WASHER 14MM Part Number : `90501GBL730`
17	BOLT FLANGE 6X20 Part Number : `957010602000`
18	HB6200 Part Number : `961006200000`
