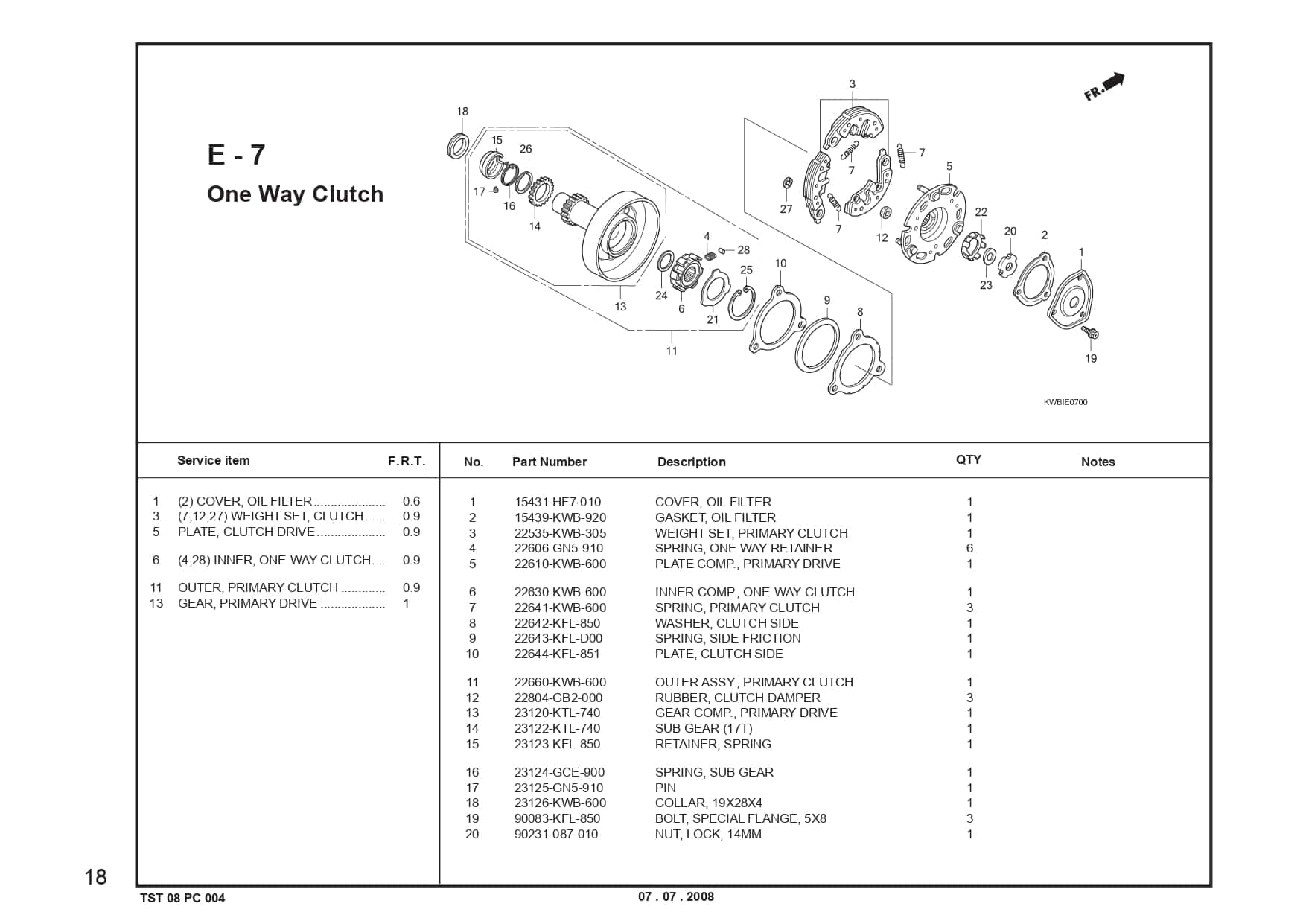

E-7 One Way Clutch – Katalog Suku Cadang Honda Blade 110

#	Informasi Produk	Visual
1	COVER OIL FILTER Part Number : `15431HF7010`
2	GASKET OIL FILTER Part Number : `15439KWB920`
3	WEIGHT SET PRIMARY CLUCTH Part Number : `22535KWB305`
4	SPRING,ONEWAY RET LBL Part Number : `22606GN5910`
5	PLATE COMP PRIMARY DRIVE Part Number : `22610KWB600`
6	INNER COMP ONE WAY CLUTCH Part Number : `22630KWB600`
7	SPRING PRIMARY CLUTCH Part Number : `22641KWB600`
8	WASHER, CLUTCH SIDE Part Number : `22642KFL850`
9	SPG SIDE FRICTION Part Number : `22643KFLD00`
10	PLATE, CLUTCH SIDE Part Number : `22644KFL851`
11	OUTER ASSY PRIMARY CLUTCH Part Number : `22660KWB601`
12	RUBBER CLUTCH DAMPER Part Number : `22804GB2000`
13	GEAR COMP PRIMARY DRIVE Part Number : `23120KTL740`
14	GEAR SUB Part Number : `23122KTL740`
15	RETAINER, SPG Part Number : `23123KFL850`
16	SPG,SUB GEAR LBL Part Number : `23124GCE900`
17	PIN Part Number : `23125GN5910`
18	COLLAR 19X28X4 Part Number : `23126KWB600`
19	BOLT,SPL FLANGE 5X8 Part Number : `90083KFL850`
20	NUT LOCK 14MM Part Number : `90231087010`
21	WASHER,30X45X0,8 Part Number : `90401GB2000`
22	WASHER LOCK Part Number : `90431GN5910`
23	WASHER BLOCK Part Number : `90432086001`
24	WASHER, 17X23X1.5 Part Number : `90433KWB601`
25	CIRCLIP,INT 45 MM Part Number : `90455GB2000`
26	SET RING 23 MM Part Number : `90603P0X000`
27	CIRCLIP 7MM Part Number : `90605166720`
28	ROLLER, 5X8 Part Number : `91101GB2000`
