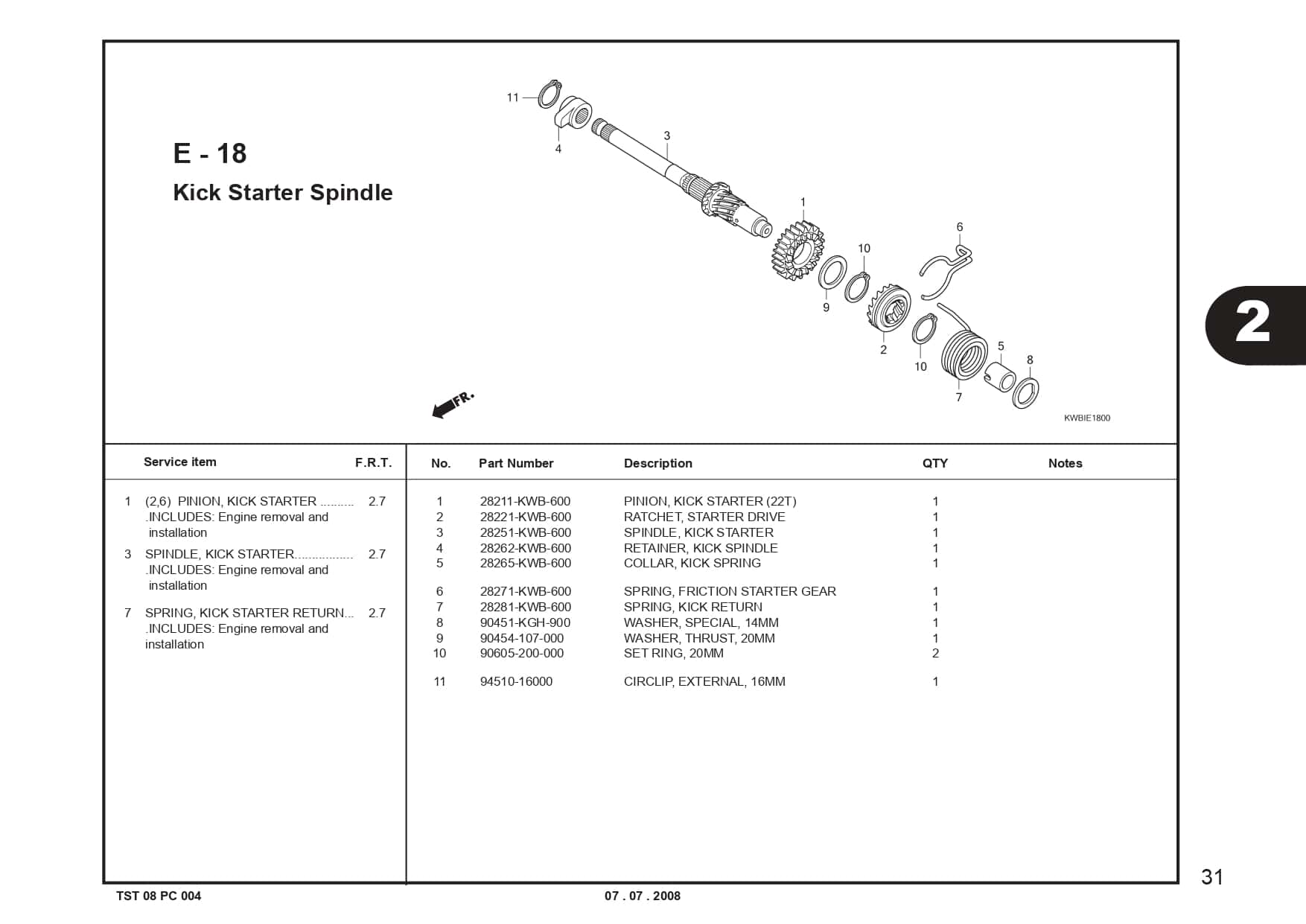

E-18 Kick Starter Spindle – Katalog Suku Cadang Honda Blade 110

#	Informasi Produk	Visual
1	PINION KICK STARTER Part Number : `28211KWB600`
2	RACCHET STARTER DRIVE Part Number : `28221KWB600`
3	SPINDLE KICK STARTER Part Number : `28251KWB600`
4	RETAINER KICK SPINDLE Part Number : `28262KWB600`
5	COLLAR KICK SPG Part Number : `28265KWB600`
6	SPRING FRICTION STARTER PINION Part Number : `28271KWB600`
7	SPG KICK RETURN Part Number : `28281KWB600`
8	WASHER,SPL 14MM Part Number : `90451KGH900`
9	WASHER,THRUST B Part Number : `90454107000`
10	SET RING,20MM Part Number : `90605200000`
11	CIRCLIP,EX 16 Part Number : `9451016000`
