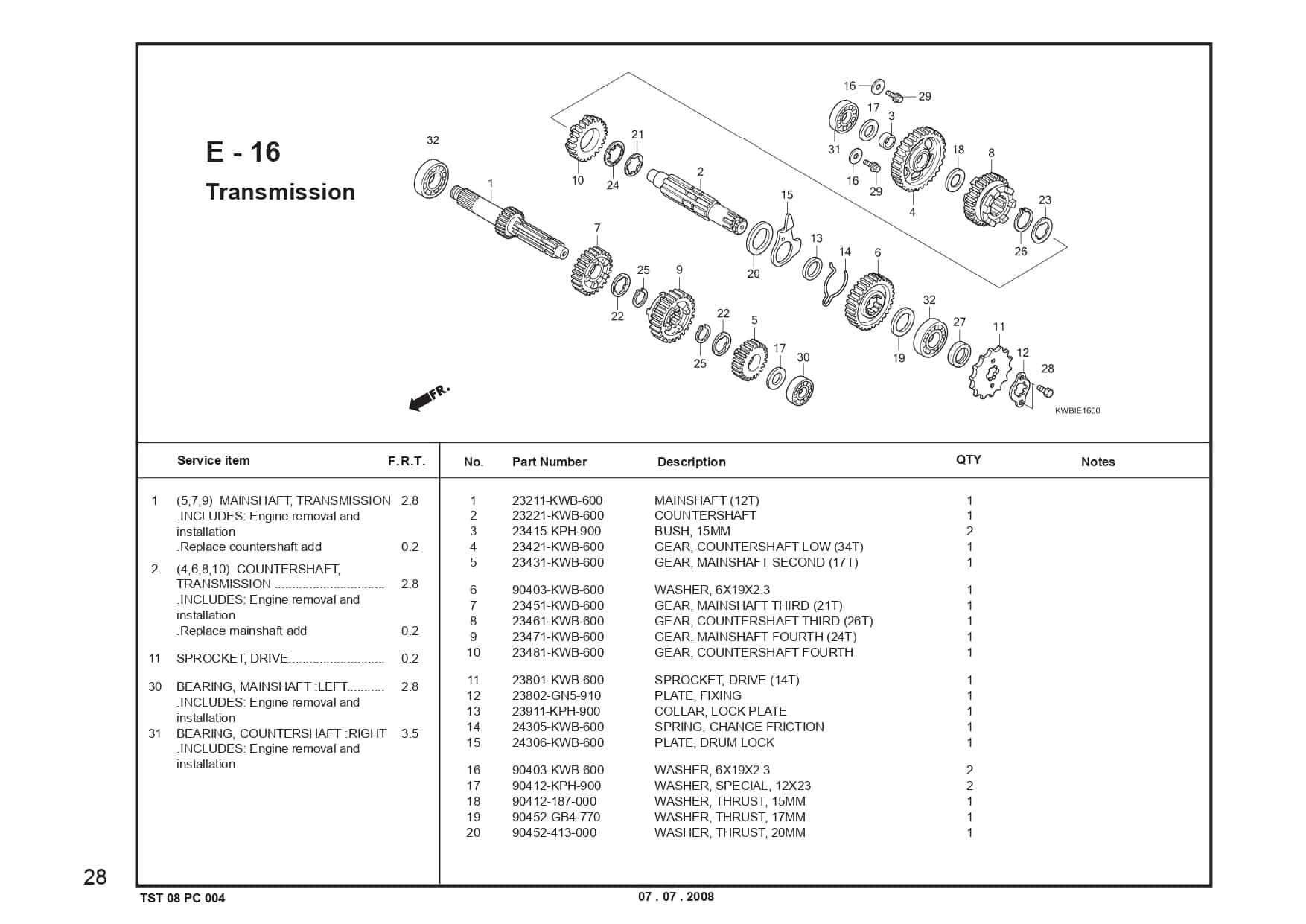

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | SHIFT MAIN 13T | 23211KWB600 | - |
| 2 | SHAFT COUNTER | 23221KWB600 |
|
| 3 | BUSH, 15MM | 23415KPH900 |
|
| 4 | GEAR C-1 34T | 23421KWB600 | - |
| 5 | GEAR M-2 18T | 23431KWB600 | - |
| 6 | WASHER 6X19X2.3 | 90403KWB600 | - |
| 7 | WASHER 6X19X2.3 | 90403KWB600 | - |
| 8 | GEAR C-3 25T | 23461KWB600 | - |
| 9 | GEAR M-4 24T | 23471KWB600 | - |
| 10 | GEAR C-4 22T | 23481KWB600 | - |
| 11 | SPROCKET DRIVE 14T | 23801KWB600 |
|
| 12 | PLATE FIXING | 23802GN5911 |
|
| 13 | COLLAR, LOCK PLATE | 23911KPH900 |
|
| 14 | SPG CHANGE FRICTION | 24305KWB600 |
|
| 15 | PLATE DRUM LOCK | 24306KWB600 |
|
| 16 | WASHER 6X19X2.3 | 90403KWB600 | - |
| 17 | WASHER, SPECIAL, 12X23 | 90412KPH900 |
|
| 18 | WASHER THRUST 15MM | 90412187000 |
|
| 19 | WASHER, TRUST 17 MM | 90452GB4770 |
|
| 20 | WASHER, THRUST, 20MM | 90452413000 |
|
| 21 | WASHER SPLINE 20MM | 90461KWB600 |
|
| 22 | WASHER, SPLINE 17MM | 90461035000 |
|
| 23 | WASHER SPLINE 20MM | 90461459010 |
|
| 24 | WASHER LOCK 20MM | 90465KWB600 |
|
| 25 | CIRCLIP, EXTERNAL, 17MM | 90601001000 | - |
| 26 | CIRCLIP 20MM | 90601459000 |
|
| 27 | OIL SEAL, 17X29X5 | 91204KWB601 |
|
| 28 | BOLT, HEX., 6X10 | 92101060100A |
|
| 29 | BOLT FLANGE 6X12 | 957010601200 |
|
| 30 | BRG.RAD N/COM | 961006001000 | - |
| 31 | BEARING, RADIAL BALL, 6201 | 961006201000 | - |
| 32 | BEARING BALL 6203 | 961006203001 |
|
