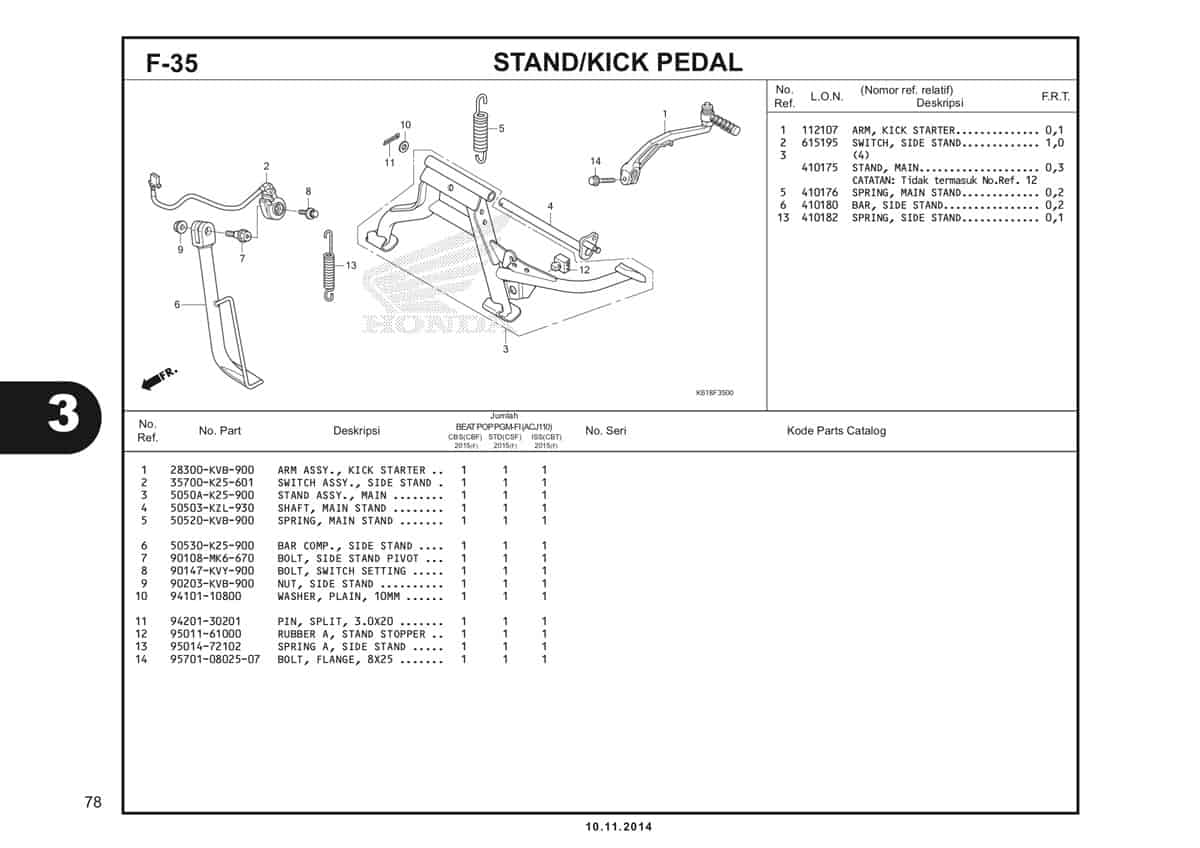

F35 – Stand/Kick Pedal – Katalog Honda BeAT POP eSP K61

#	Informasi Produk	Visual
1	ARM ASSY KICK STARTER Part Number : `28300KVB900`
2	SWITCH ASSY SIDE STAND Part Number : `35700K25601`
3	STAND ASSY MAIN Part Number : `5050AK25900`
4	SHAFT MAIN STAND Part Number : `50503KZL930`
5	SPRING MAIN STAND Part Number : `50520KVB900`
6	BAR COMP., SIDE STAND Part Number : `50530K25900`
7	BOLT SIDE STAND PIVOT Part Number : `90108MK6670`
8	BOLT SW SETTING Part Number : `90147KVY900`
9	NUT SIDE STAND Part Number : `90203KVB900`
10	WASHER PLAIN 10MM Part Number : `9410110800`
11	PIN SPLIT 3.0X20 Part Number : `9420130201`
11	PIN SPLIT 3.0X20 Part Number : `9420130200`
12	STOPPER RUBBER A STAND Part Number : `9501161000`
13	SPRING A SIDE STAND Part Number : `9501472102`
14	BOLT FLANGE 8X25 Part Number : `957010802507`
