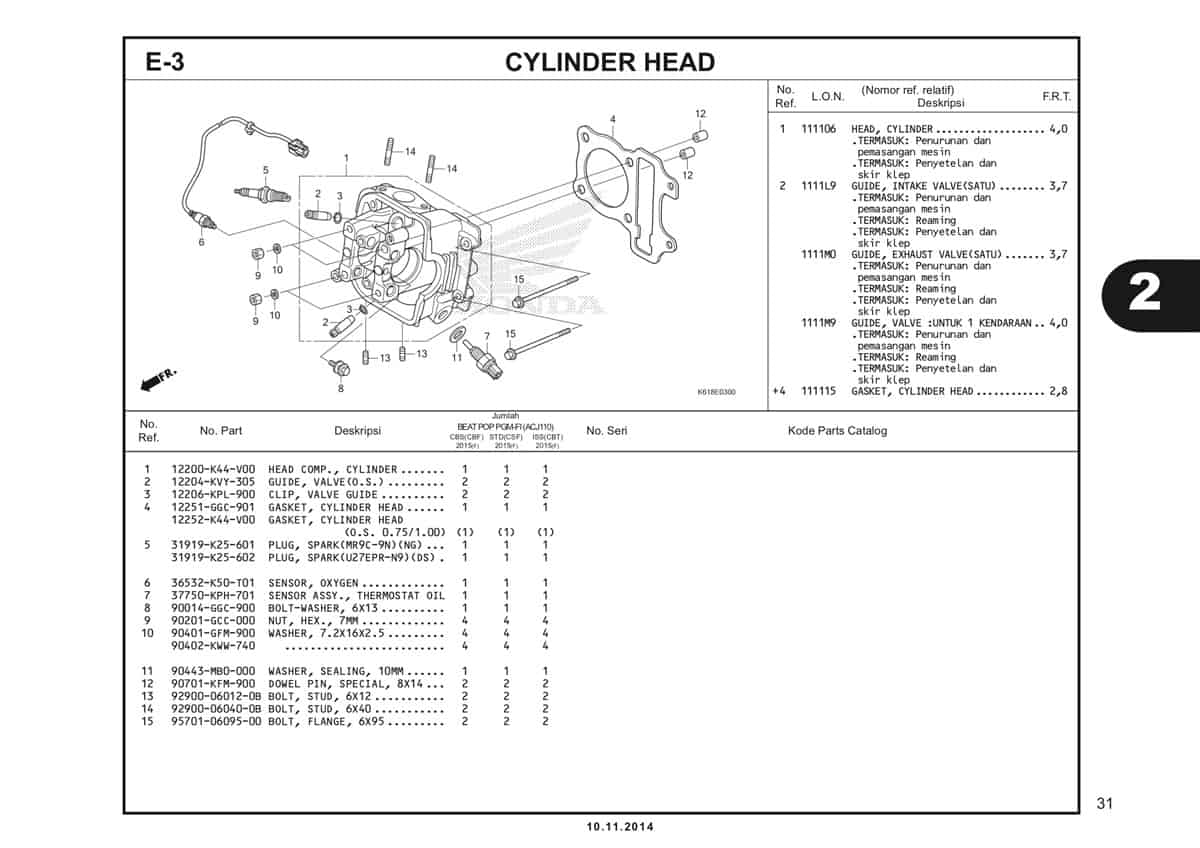

E3 – Cylinder Head – Katalog Honda BeAT POP eSP K61

#	Informasi Produk	Visual
1	HEAD COMP., CYLINDER Part Number : `12200K44V00`
2	GUIDE, VALVE(O.S.) Part Number : `12204KVY305`
3	CLIP VALVE GUIDE Part Number : `12206KPL900`
4	GASKET CYLINDER HEAD Part Number : `12251GGC901`
5	SPARK PLUG MR9C9N (NGK) Part Number : `31919K25601`
5	SPARK PLUG U27EPR-N9 (DS) Part Number : `31919K25602`
5	Spark Plug CPR8EA-9 (NG) Part Number : `31916KRM841`
6	SENSOR OXYGEN(NGK) Part Number : `36532K50T01`
7	SENSOR ASSY., THERMOSTAT OIL Part Number : `37750KPH701`
7	SENSOR ASSY., THERMOSTAT OIL Part Number : `37750K16A21`
8	BOLT, WASHER, 6X13 Part Number : `90014GGC900`
9	NUTHEX 7MM Part Number : `90201GCC000`
10	WASHER 7.2X16X2.5 Part Number : `90401GCC000`
10	WASHER 7.2X16X2.5 Part Number : `90402KWW740`
11	WASHER SEALING 10MM Part Number : `90443MB0000`
12	DOWEL PIN, SPECIAL, 8X14 Part Number : `90701KFM900`
13	BOLT STUD 6X12 Part Number : `92900060120B`
14	BOLT, STUD, 6X40 Part Number : `92900060400B`
15	BOLT FLANGE 6X95 Part Number : `957010609500`
