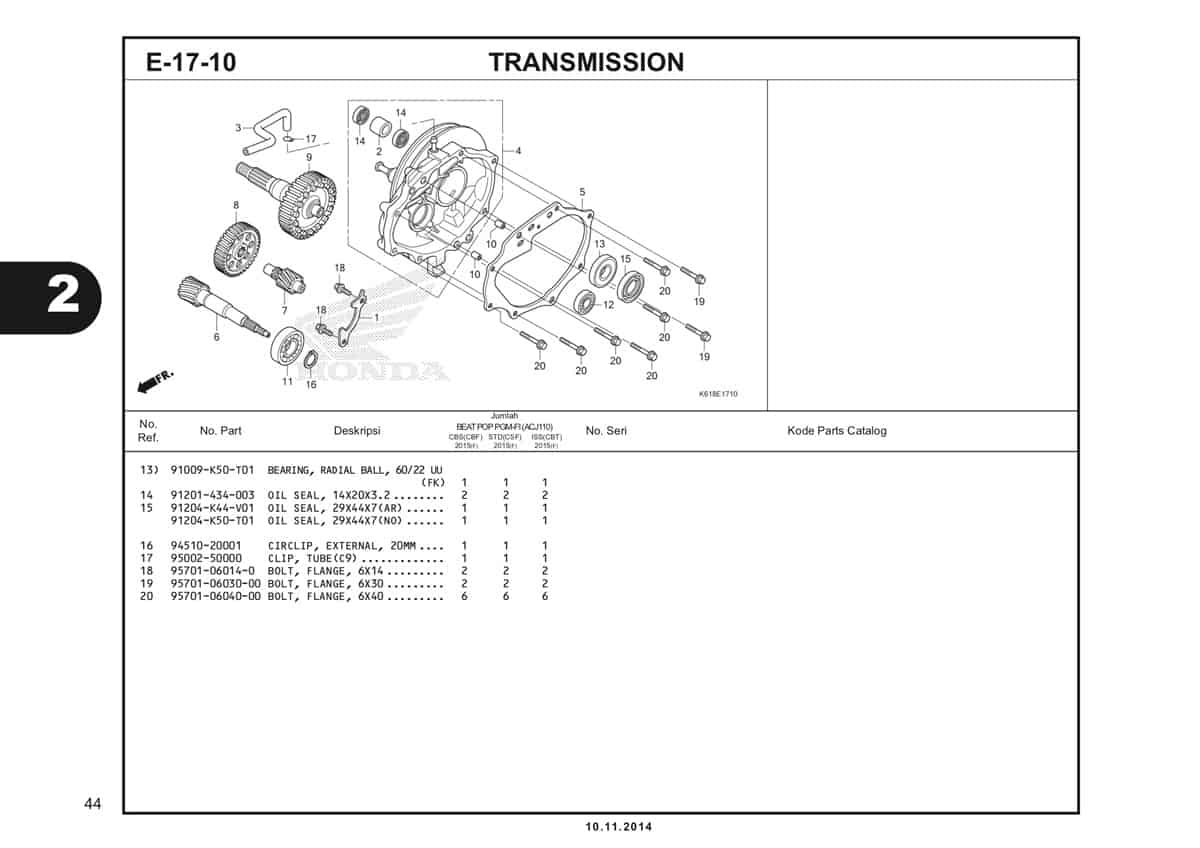

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | PLATE MISSION BEARING SET | 11108KZL930 |
|
| 2 | SLEEVE RR BRAKE CAM | 11204KGF900 |
|
| 3 | TUBE MISSION BREATHER | 11211K50T00 |
|
| 4 | Case Assy. Mission | 21200K25FA0 |
|
| 5 | GASKET MISSION CASE | 21395KVB901 |
|
| 6 | SHAFT,DRIVE | 23411KZL930 |
|
| 7 | COUNTERSHAFT(12T) | 23421K44V00 |
|
| 7 | COUNTERSHAFT(12T) | 23421KZL930 |
|
| 8 | GEAR, COUNTER(51T) | 23422KZL930 |
|
| 9 | GEAR COMP FINAL(45T) | 23430K44V00 |
|
| 10 | PIN DOWEL 8X12 | 90702KFM900 |
|
| 10 | PIN DOWEL 8X12 | 90702KVRC00 |
|
| 11 | Bearing Radial Ball 6204 | LF6204 |
|
| 11 | BRG,BALL RADIAL 6204 | 91003K50T01 |
|
| 11 | BRG,BALL RADIAL 6204 | 91003KZR601 |
|
| 11 | BEARING RADIAL BALL 6204 | 91003KZR602 |
|
| 12 | BRG,BALL RADIAL 6201 | 91006K50T01 |
|
| 12 | BEARING RADIAL BALL 6201 | 91006KZR601 |
|
| 12 | BEARING RADIAL BALL 6201 | 91006KZR602 |
|
| 13 | BEARING RAD BALL 60/22UU | 91009K44V01 |
|
| 13 | BRG,BALL RADIAL 60/22 UU | 91009K50T01 |
|
| 14 | OIL SEAL 14X20X3.2 | 91201434003 |
|
| 14 | OIL SEAL 14X20X3.2 | 91201434005 |
|
| 15 | OIL SEAL 29X44X7(NOK) | 91204K50T01 |
|
| 16 | CIRCLIP, EXTERNAL, 20MM | 9451020000 |
|
| 17 | CLIP,TUBE 5.0 MM | 9500250000 |
|
| 18 | BOLT FLANGE 6X14 | 957010601400 |
|
| 19 | BOLT FLANGE 6X30 | 957010603000 |
|
| 20 | BOLT FLANGE 6X40 | 957010604000 |
|
