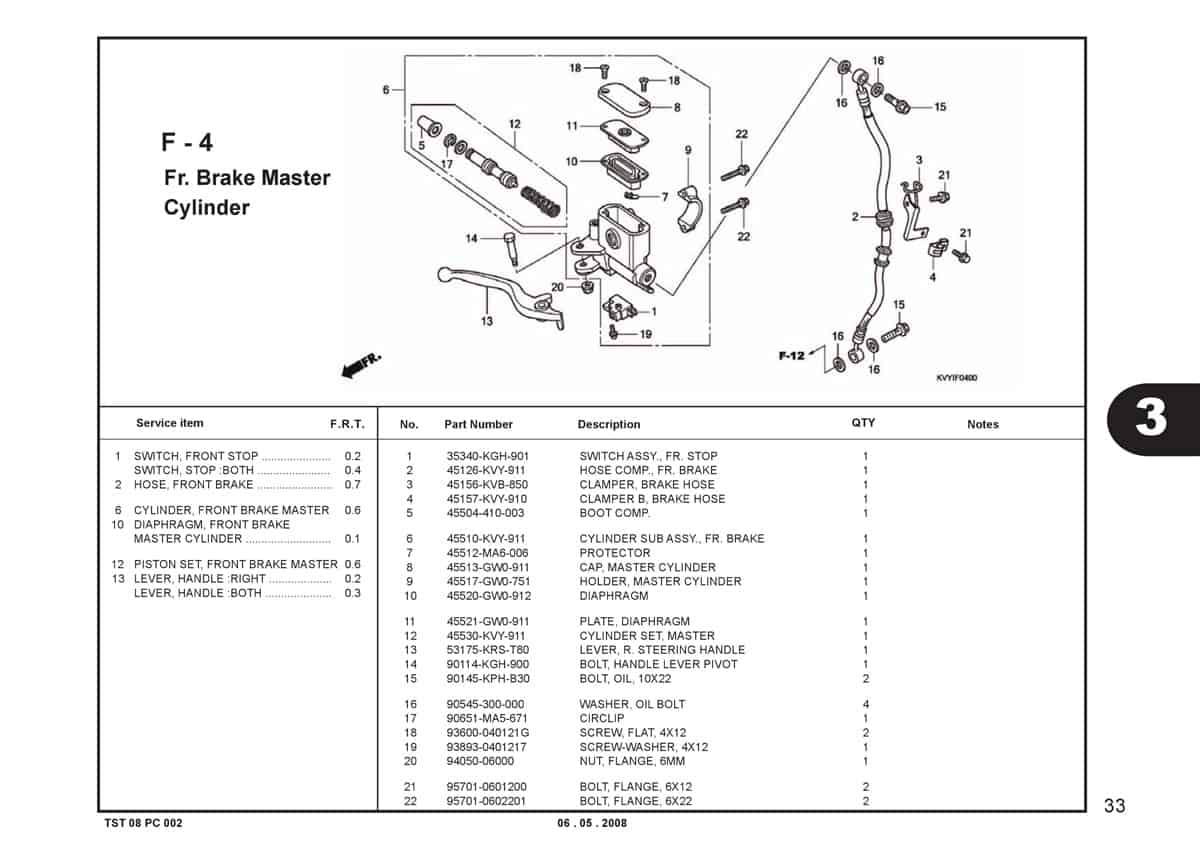

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | SW ASSY,FR STOP | 35340KGH901 |
|
| 2 | HOSE COMP FR BRK | 45126KVY911 |
|
| 3 | CLAMPER BRAKE HOSE | 45156KVB910 | - |
| 4 | CLAMPER B BRK HOSE | 45157KVY910 |
|
| 5 | BOOT COMP | 45504410003 |
|
| 6 | CYLINDER SUB ASSY F | 45510KVY911 |
|
| 7 | PROTECTOR | 45512MA6006 |
|
| 8 | CAP,MASTER CYLINDER | 45513GW0911 |
|
| 8 | CAP,MASTER CYLINDER | 45513GW0913 |
|
| 9 | HOLDER M/C | 45517GW0751 |
|
| 10 | DIAPHRAGM | 45520GW0911 |
|
| 11 | PLATE,DIAPHRAGM | 45521GW0911 |
|
| 12 | CYLINDER SET MASTER | 45530KVY911 |
|
| 13 | LEVER R STRG HDL | 53175KRST80 |
|
| 14 | BOLT HANDLE LEVER | 90114KGH900 |
|
| 15 | BOLT OIL, 10X22 (NISSIN) | 90145KPHB30 |
|
| 16 | WASHER OIL BOLT | 90545300000 |
|
| 17 | CIRCLIP | 90651MA5671 |
|
| 18 | SCREW FLAT, 4X12 | 93600040121G |
|
| 19 | SCREW WASHER 4X12 | 938930401217 |
|
| 20 | NUT,FLANGE 6MM | 9405006000 |
|
| 21 | BOLT FLANGE 6X12 | 957010601200 |
|
| 22 | BOLT FLANGE 6X22 | 957010602200 |
|
