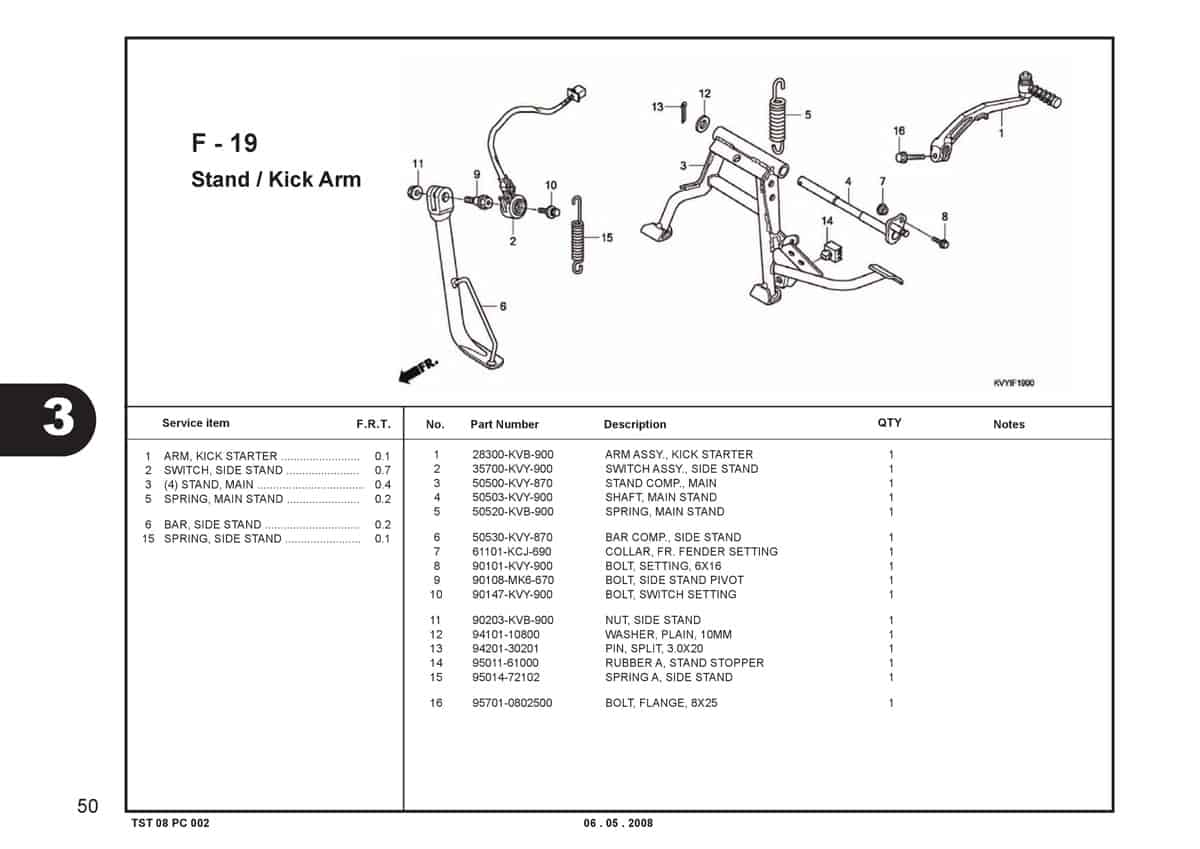

F19 – Stand/Kick Arm – Katalog Honda BeAT Karbu KVY

#	Informasi Produk	Visual
1	ARM ASSY KICK STARTER Part Number : `28300KVB900`
2	SWITCH ASSY SIDE STAND Part Number : `35700KVY900`
3	STAND MAIN Part Number : `50500KVY870`
4	SHAFT MAIN STAND Part Number : `50503KVY900`
5	SPRING MAIN STAND Part Number : `50520KVB900`
6	BAR COMP SIDE STAND Part Number : `50530KVY870`
7	COLLAR FR FENDER Part Number : `61101KCJ690`
8	BOLT SETTING 6X16 Part Number : `90101KVY900`
9	BOLT SIDE STAND PIVOT Part Number : `90108MK6670`
10	BOLT SW SETTING Part Number : `90147KVY900`
11	NUT SIDE STAND Part Number : `90203KVB900`
12	WASHER PLAIN 10MM Part Number : `9410110800`
13	PIN SPLIT 3.0X20 Part Number : `9420130201`
13	PIN SPLIT 3.0X20 Part Number : `9420130200`
14	STOPPER RUBBER A STAND Part Number : `9501161000`
15	SPRING A SIDE STAND Part Number : `9501472102`
16	BOLT FLANGE 8X25 Part Number : `957010802500`
