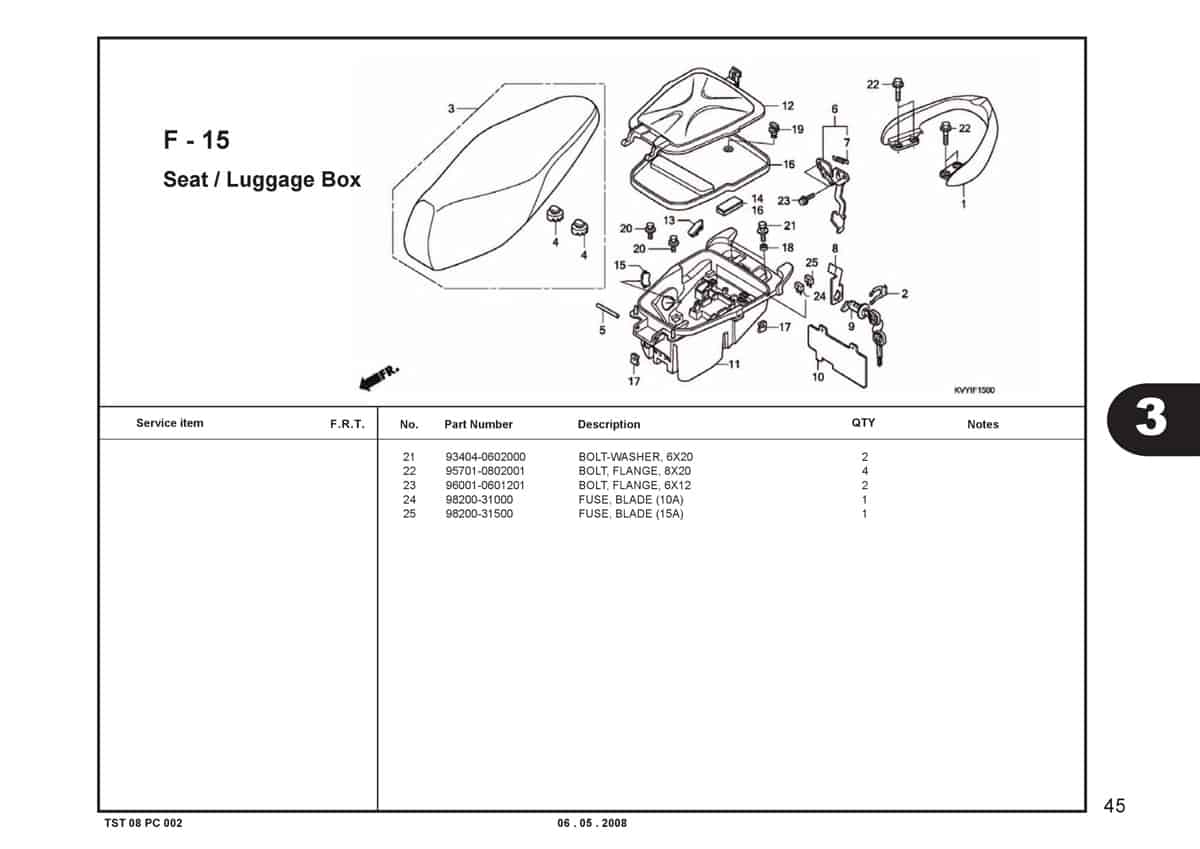

F15 – Seat/Luggage Box – Katalog Honda BeAT Karbu KVY

#	Informasi Produk	Visual
1	RAIL RR GRAB Part Number : `50400KVY900`
2	SPRING LOCK KEY Part Number : `75581GN8920`
3	SEAT COMP DOUBLE Part Number : `77200KVY700`
4	RUBBER B SEAT SET Part Number : `77214KPH900`
5	PIN SEAT HINGE Part Number : `77215KVY900`
6	SEAT CATCH COMP Part Number : `77230KVY900`
7	SPRING SEAT LOCK Part Number : `77234GN2000`
8	WASHER SEAT LOCK Part Number : `77236KVY900`
9	KEY SEAT LOCK Part Number : `77240KTM851`
10	GUARD HEAT Part Number : `80107KVY900`
11	BOX,LUGGAGE Part Number : `8125AKVY960`
12	COVER LUGGAGE BOX Part Number : `81251KVY900`
13	CAP LUGGAGE BOX Part Number : `81252KVY900`
15	CAP LUGGAGE SIDE Part Number : `81254KVY960`
16	COVER ASSY.BATTERY Part Number : `81256KVY700`
17	NUT SPRING 4MM Part Number : `90302GW3980`
18	COLLAR LUGGAGE SET Part Number : `90501KVY900`
19	CLIP,TRIM Part Number : `90683GAZ004`
20	BOLT WASHER 6X10 Part Number : `934040601000`
21	BOLT WASHER 6X20 Part Number : `934040602000`
22	BOLT FLANGE 8X20 Part Number : `957010802000`
23	BOLT FLANGE SH 6X12 Part Number : `960010601200`
24	FUSE, BLADE (10A) Part Number : `9820031001`
25	BLADE FUSE 15A Part Number : `9820031500`
