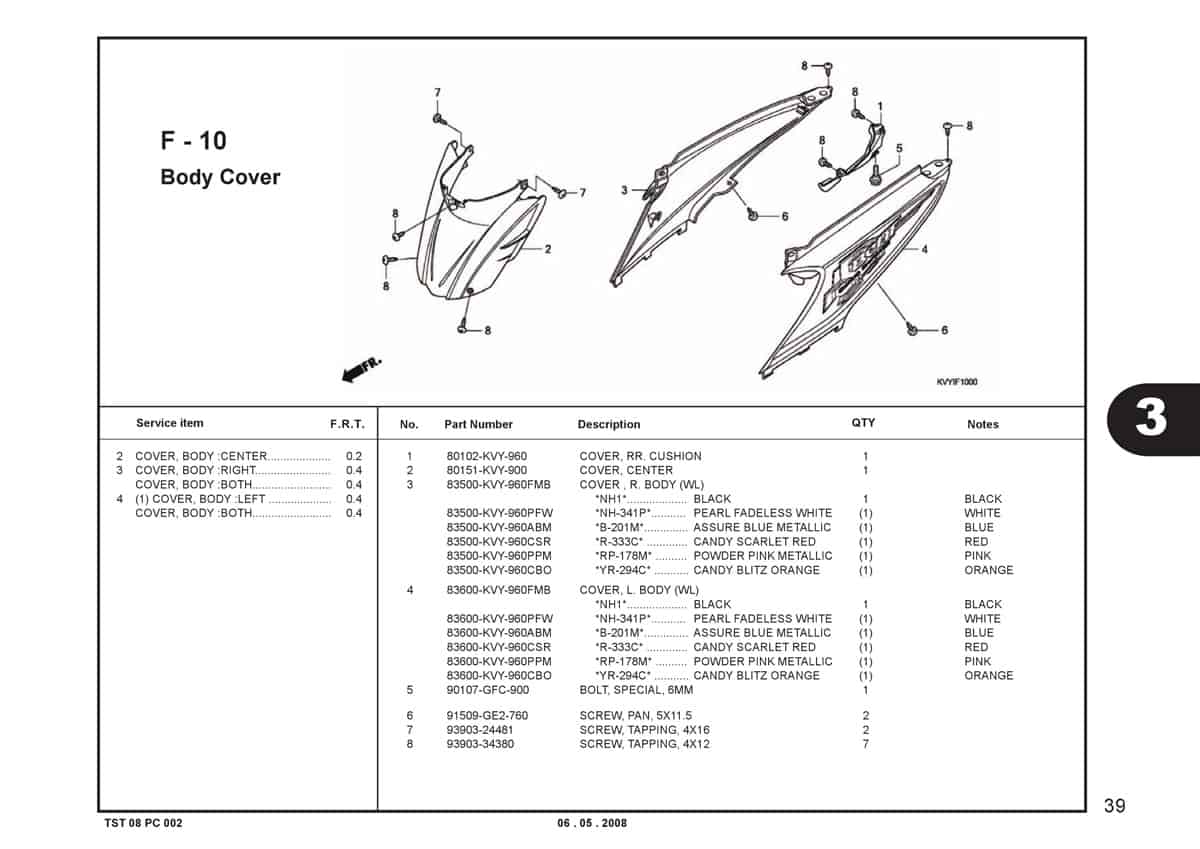

F10 – Body Cover – Katalog Honda BeAT Karbu KVY
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
COVER RR CUSH |
80102KVY960 |
|
| 2 |
COVER CENTER |
80151KVY900 |
|
| 3 |
COVER R BODY(BLK) |
83500KVY960FMB |
|
| 3 |
COVER R BODY(PL FD WHT) |
83500KVY960PFW |
-
|
| 3 |
COVER R BODY(AS BL MT) |
83500KVY960ABM |
-
|
| 3 |
COVER R BODY(CN SC MT) |
83500KVY960CSR |
-
|
| 3 |
COVER R BODY(PD PK MT) |
83500KVY960PPM |
-
|
| 3 |
COVER R BODY(CN BZ OR) |
83500KVY960CBO |
-
|
| 4 |
COVER L BODY(BLK) |
83600KVY960FMB |
|
| 4 |
COVER L BODY(PL FD WHT) |
83600KVY960PFW |
-
|
| 4 |
COVER L BODY(AS BL MT) |
83600KVY960ABM |
-
|
| 4 |
COVER L BODY(CN SC MT) |
83600KVY960CSR |
|
| 4 |
COVER L BODY(PD PK MT) |
83600KVY960PPM |
-
|
| 4 |
COVER L BODY(CN BZ OR) |
83600KVY960CBO |
-
|
| 5 |
BOLT SPECIAL 6MM |
90107GFC900 |
-
|
| 6 |
SCREW PAN 5X11.5 |
91509GE2760 |
|
| 7 |
SCREW, TAPPING, 4X16 |
9390324480 |
|
| 8 |
SCREW TAPPING 4X12 |
9390334380 |
|
