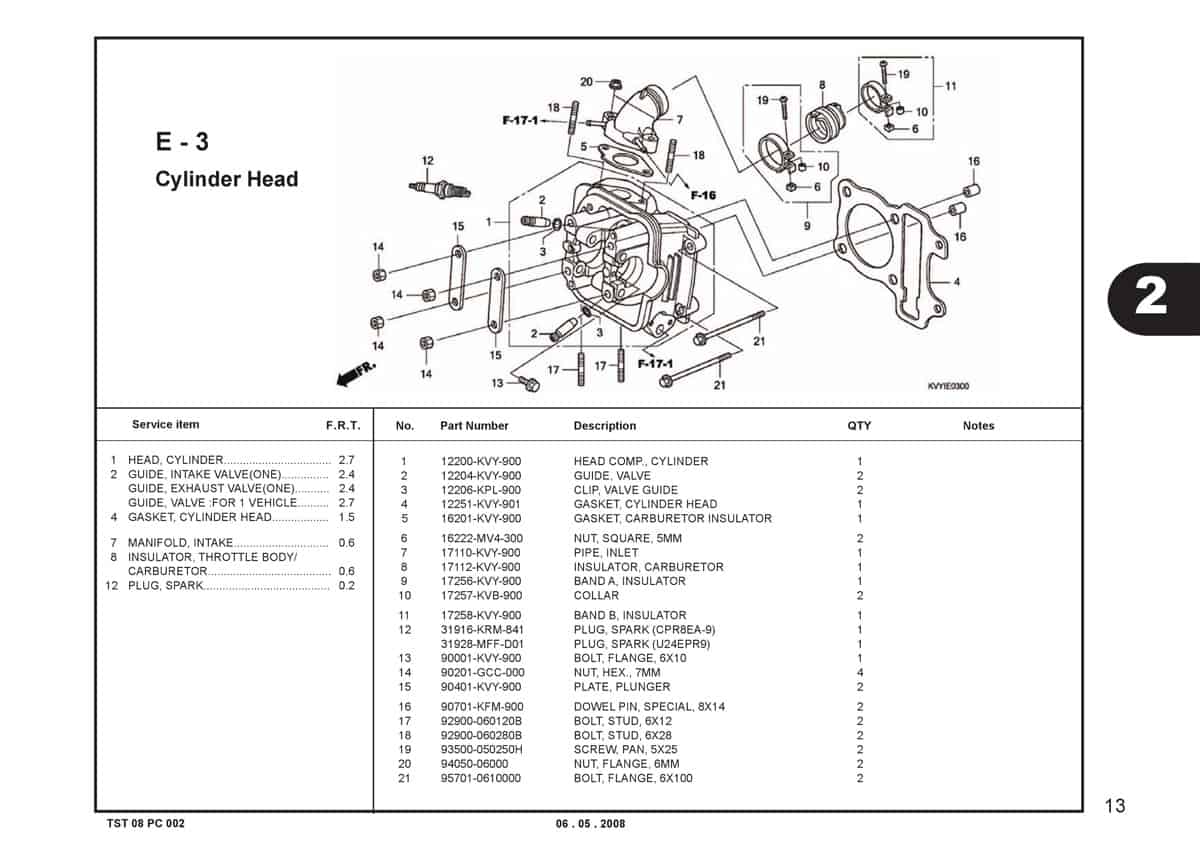

E3 – Cylinder Head – Katalog Honda BeAT Karbu KVY

#	Informasi Produk	Visual
1	HEAD COMP., CYLINDER Part Number : `12200KVY900`
2	GUIDE VALVE Part Number : `12204KVY305`
3	CLIP VALVE GUIDE Part Number : `12206KPL900`
4	GASKET CYLINDER HEAD Part Number : `12251KVY901`
5	GASKET CARB INSULATOR Part Number : `16201KVY900`
6	NUT,SQUARE 5MM Part Number : `16222MV4300`
7	PIPE INLET Part Number : `17110KVY900`
8	INSULATOR CARB Part Number : `17112KVY900`
9	BAND A INSULATOR Part Number : `17256KVY900`
10	COLLAR Part Number : `17257KVB900`
11	BAND B INSULATOR Part Number : `17258KVY900`
12	SPARK PLUG CPR8EA9 (NGK) Part Number : `31916KRM841`
12	SPARK PLUG U24EPR9 (DS) Part Number : `31928MFFD01`
12	Spark Plug U24ESR-N (DS) Part Number : `9805958826`
13	BOLT FLANGE 6X10 Part Number : `90001KVY900`
14	NUT, HEX., 7MM Part Number : `90201GCC000`
15	PLATE PLUNGER Part Number : `90401KVY900`
16	DOWEL PIN, SPECIAL, 8X14 Part Number : `90701KFM900`
17	BOLT STUD 6X12 Part Number : `92900060120B`
18	BOLT STUD 26X28 Part Number : `92900060280B`
19	SCREW PAN 5X25 Part Number : `93500050250H`
19	SCREW PAN 5X25 Part Number : `93500050250G`
19	SCREW PAN 5X25 Part Number : `93500050250A`
20	NUT,FLANGE 6MM Part Number : `9405006000`
20	NUT,FLANGE 6MM Part Number : `9405006080`
21	BOLT FLANGE 6X100 Part Number : `957010610000`
