Diagram Bagian

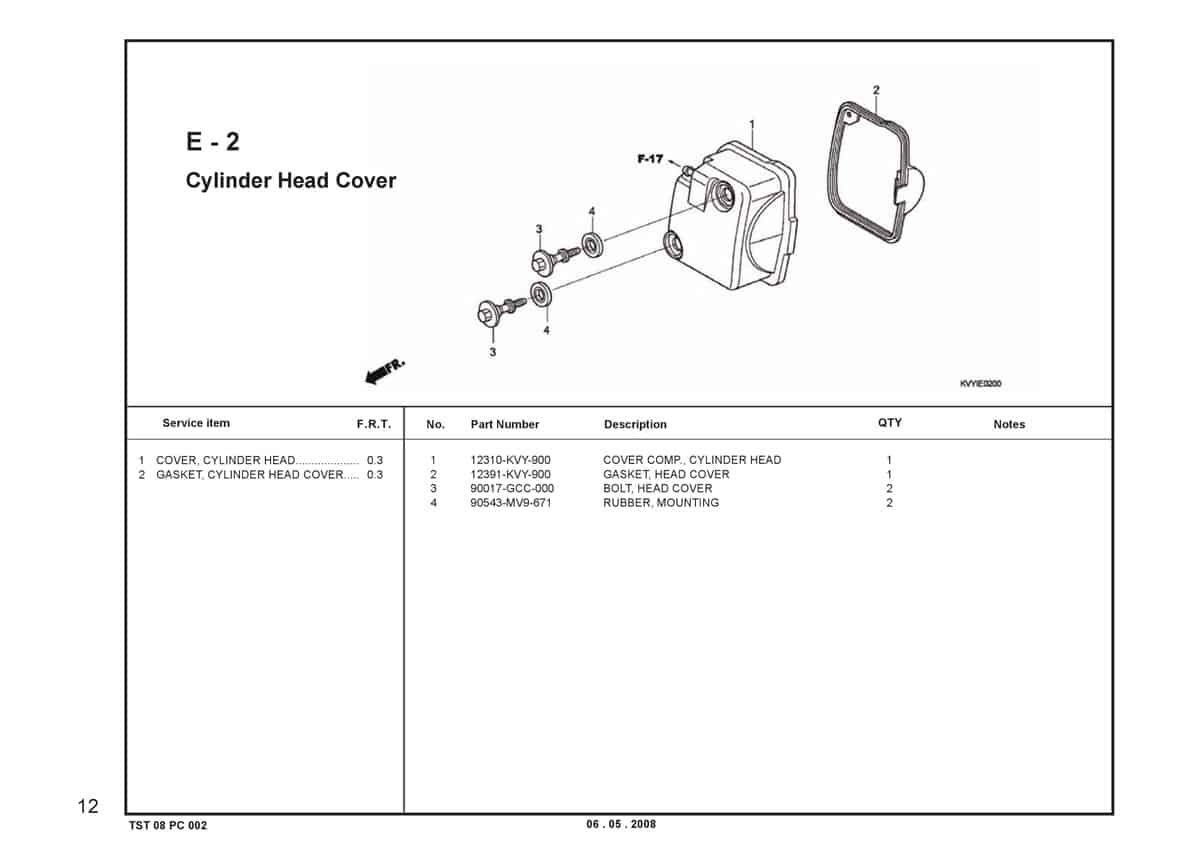

E2 – Cylinder Head Cover – Katalog Honda BeAT Karbu KVY
Technical Diagram
Daftar Suku Cadang
# Informasi Produk Visual
1
COVER COMP HEAD
Part Number : 12310KVY900
COVER COMP HEAD
2
GASKET,HEAD COVER
Part Number : 12391KVY900
GASKET,HEAD COVER
3
BOLT HEAD COVER
Part Number : 90017GCC000
BOLT HEAD COVER
3
BOLT HEAD COVER
Part Number : 90017KGH900
BOLT HEAD COVER
4
Rubber Mounting
Part Number : 90543MV9670
Rubber Mounting
