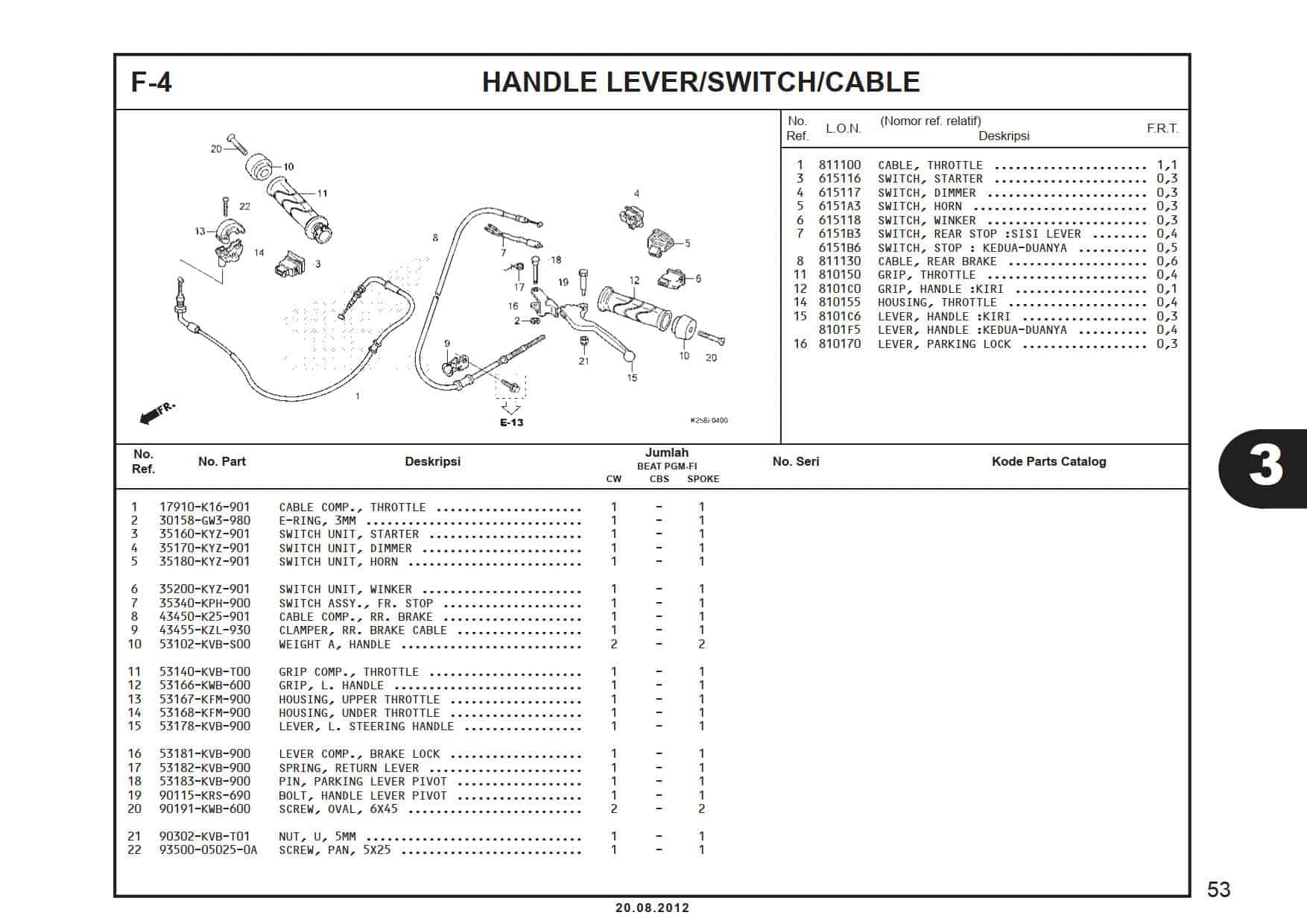

F-4 Handle Lever/Switch/Cable – Katalog Suku Cadang Honda BeAT FI K25A

#	Informasi Produk	Visual
1	CABLE COMP THROTTLE Part Number : `17910K16901`
2	E-RING 3MM Part Number : `30158GW3980`
3	SWITCH UNIT START Part Number : `35160KYZ901`
4	SWITCH UNIT DIMMER Part Number : `35170KYZ901`
5	SWITCH UNIT HORN Part Number : `35180KYZ901`
6	SWITCH UNIT WINKER Part Number : `35200KYZ901`
7	SWITCH ASSY., FR. STOP Part Number : `35340GZ9003`
7	SWITCH ASSY., FR. STOP Part Number : `35340KPH901`
7	SWITCH ASSY., FR. STOP Part Number : `35340K16901`
8	CABLE COMP RR BRAKE Part Number : `43450K25901`
9	CLAMPER RR BRAKE CABLE Part Number : `43455KZL930`
10	WEIGHT A HDL Part Number : `53102KVBS00`
11	GRIP COMP THROT Part Number : `53140KVBT00`
12	GRIP L HDL Part Number : `53166KWB600`
12	GRIP L HDL Part Number : `53166K2SN00`
13	HOUSING UP THROT Part Number : `53167KFM900`
14	HOUSING UND THROT Part Number : `53168KFM900`
15	LEVER L STRG HDL Part Number : `53178KVB900`
16	LEVER COMP BRAKE LOCK Part Number : `53181KVB900`
17	SPRING RETURN LEVER Part Number : `53182KVB900`
18	PIN PARKING LEVER PIVOT Part Number : `53183KVB900`
19	BOLT HNDL LEVER PIVOT Part Number : `90115KRS690`
20	SCREW OVAL 6X45 Part Number : `90191KWB600`
21	NUT,U,5MM Part Number : `90302KVBT01`
22	SCREW,PAN 5X25 Part Number : `93500050250A`
