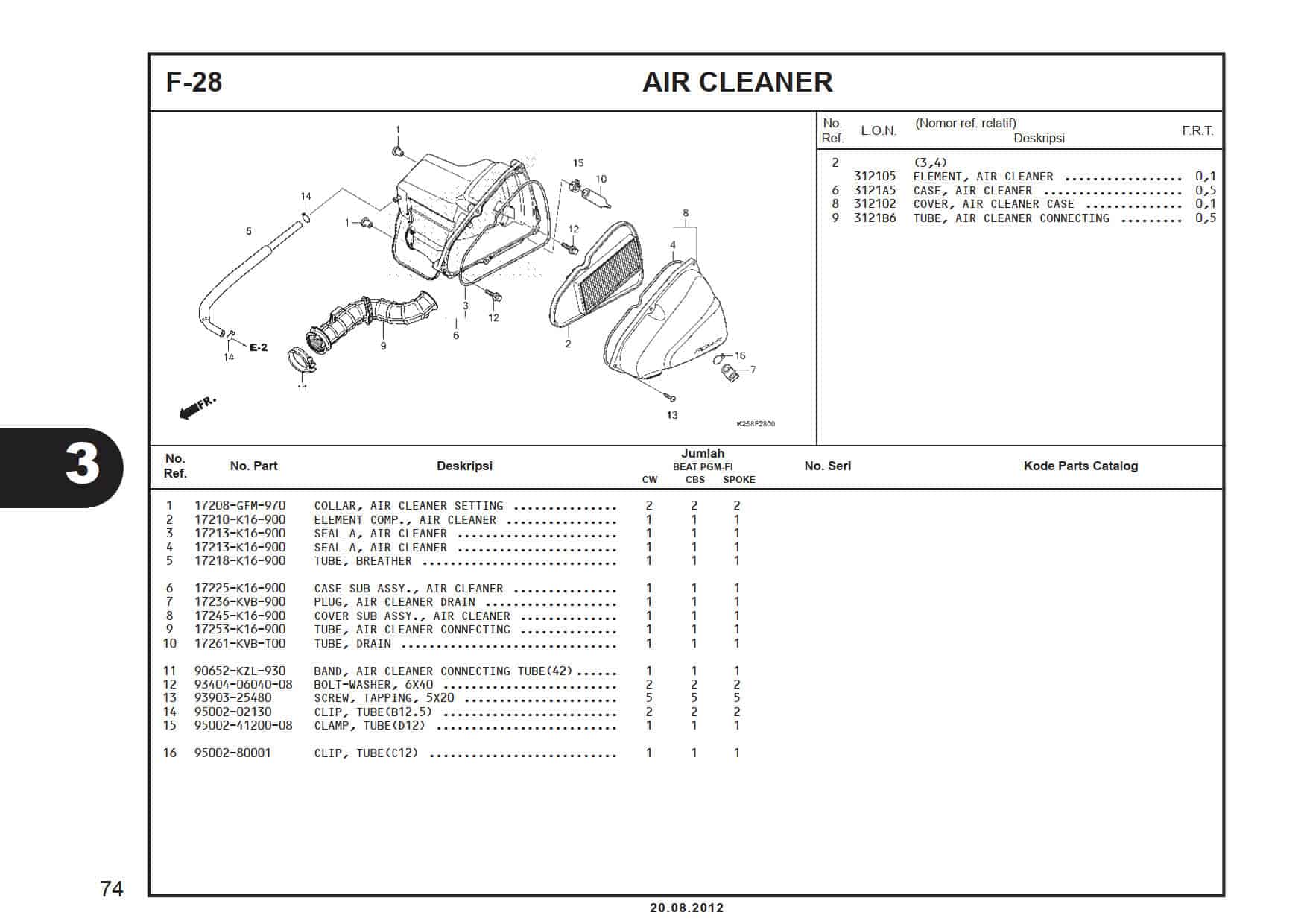

F-28 Air Cleaner – Katalog Suku Cadang Honda BeAT FI K25A

#	Informasi Produk	Visual
1	COLLAR, AIR CLEANER SETTING Part Number : `17208GFM970`
2	ELEMENT COMP., AIR CLEANER Part Number : `17210K16900`
2	ELEMENT COMP., AIR CLEANER Part Number : `17210K46N20`
3	SEAL A, AIR CLEANER Part Number : `17213K16900`
4	SEAL A, AIR CLEANER Part Number : `17213K16900`
5	TUBE, BREATHER Part Number : `17218K16900`
6	CASE SUB ASSY., AIR CLEANER Part Number : `17225K16900`
7	PLUG A/C DRAIN Part Number : `17236KVB900`
8	COVER SUB ASSY., AIR CLEANER Part Number : `17245K16900`
9	TUBE, AIR CLEANER CONNECTING Part Number : `17253K16900`
10	TUBE DRAIN Part Number : `17261KVBT00`
11	BAND A/C CONNECTING TUBE(42) Part Number : `90652KZL930`
12	BOLT WASHER 6X40 Part Number : `934040604008`
13	SCREW,TAPP 5X2 Part Number : `9390325480`
14	CLIP, TUBE(B12.5) Part Number : `9500202130`
15	CLAMP D12 TUBE Part Number : `950024120008`
16	CLIP TUBE (C12) Part Number : `9500280000`
