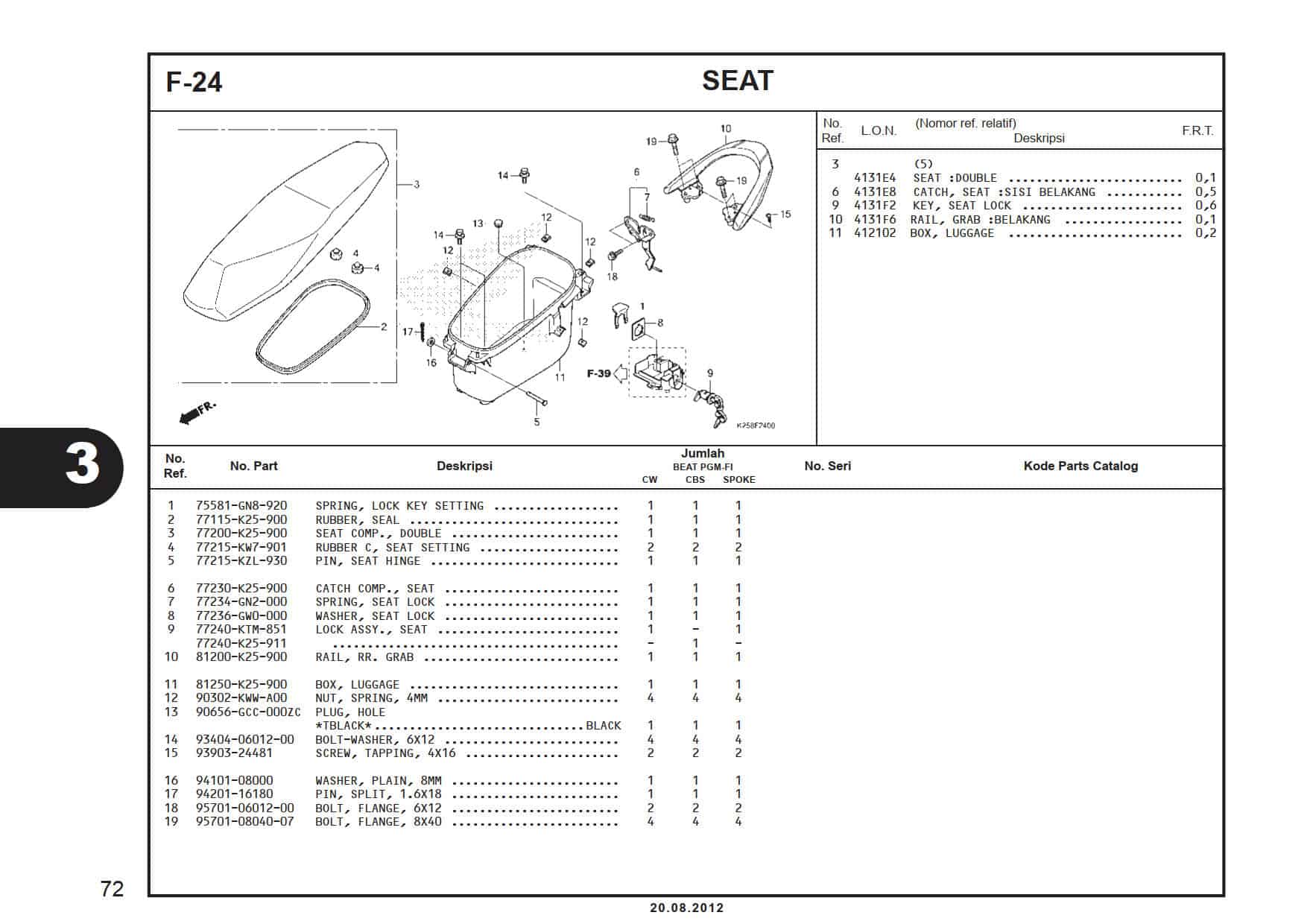

F-24 Seat – Katalog Suku Cadang Honda BeAT FI K25A

#	Informasi Produk	Visual
1	SPRING LOCK KEY Part Number : `75581GN8920`
2	RUBBER, SEAL Part Number : `77115K25900`
3	SEAT COMP DOUBLE Part Number : `77200K25900ZA`
4	RUBBER C SEAT SET Part Number : `77215KW7901`
5	PIN SEAT HINGE Part Number : `77215KZL930`
6	CATCH COMP., SEAT Part Number : `77230K25900`
7	SPRING SEAT LOCK Part Number : `77234GN2000`
8	WASHER SEAT LOCK Part Number : `77236GW0000`
9	KEY SEAT LOCK Part Number : `77240KTM851`
9	LOCK ASSY,SEAT Part Number : `77240K25911`
10	RAIL, RR. GRAB Part Number : `81200K25900`
11	BOX LUGGAGE Part Number : `81250K25600`
12	NUT SPRING 4MM Part Number : `90302KWWA00`
13	PLUG HOLE Part Number : `90656GCC000ZC`
13	PLUG HOLE Part Number : `90656GCC000ZE`
14	BOLT WASHER 6X12 Part Number : `934040601200`
15	SCREW TAPPING 4x16 Part Number : `9390324480`
16	WASHER PLAIN 8MM Part Number : `9410108000`
17	PIN SPLIT 1.6X18 Part Number : `9420116180`
18	BOLT FLANGE 6X12 Part Number : `957010601200`
19	BOLT FLANGE 8X40 Part Number : `957010804007`
