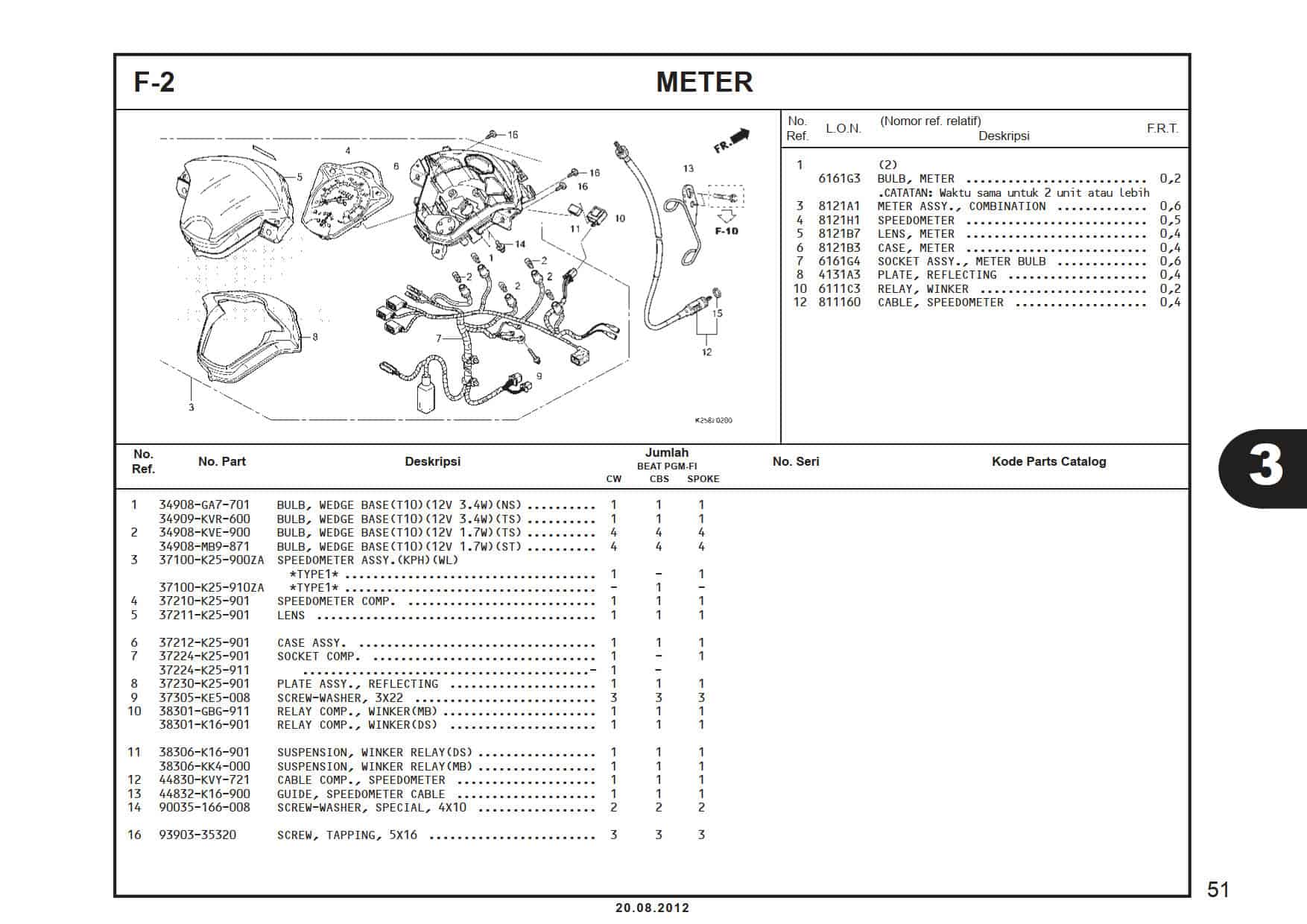

F-2 Meter – Katalog Suku Cadang Honda BeAT FI K25A

#	Informasi Produk	Visual
1	BULB W BASE Part Number : `34908GA7701`
1	BULB W BASE(T10 12V 3.4W) Part Number : `34909KVR600`
2	BULB W BASE (T10 12V1.7W) Part Number : `34908KVE900`
2	BULB W BASE Part Number : `34908MB9871`
3	SPEEDOMETER ASSY Part Number : `37200K25901`
3	SPEEDOMETER ASSY Part Number : `37100K25900ZA`
3	SPEEDOMETER ASSY Part Number : `37100K25910ZA`
4	SPEEDOMETER COMP Part Number : `37210K25901`
5	LENS Part Number : `37211K25901`
6	CASE ASSY Part Number : `37212K25901`
7	SOCKET COMP Part Number : `37224K25901`
7	SOCKET COMP Part Number : `37224K25911`
8	PLATE,REFLECTION ASSY Part Number : `37230K25901`
9	SCREW WASHER (3X22) Part Number : `37305KE5008`
10	RELAY COMP WINKER Part Number : `38301GBG911`
10	RELAY COMP WINKER Part Number : `38301K16901`
11	SUSPENSION WINKER RELAY Part Number : `38306K16901`
11	SUSPENSION RELAY Part Number : `38306KK4000`
12	CABLE COMP,SPDMT Part Number : `44830KVY721`
13	GUIDE, SPEEDOMETER CABLE Part Number : `44832K16900`
14	SCREW WASHER (4X10) Part Number : `90035166008`
16	SCREW TAPPING 5X16 Part Number : `9390335320`
