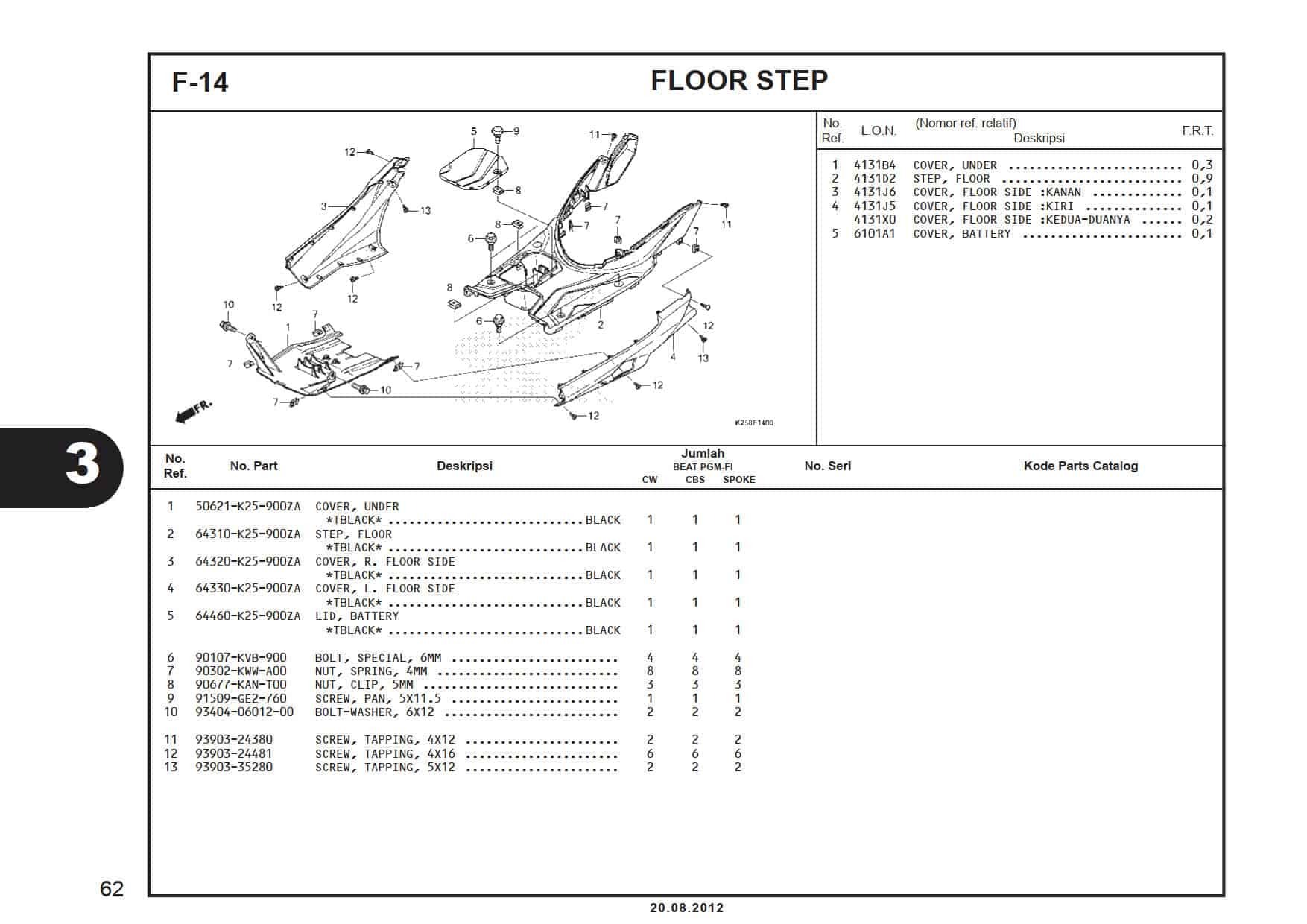

F-14 Floor Step – Katalog Suku Cadang Honda BeAT FI K25A

#	Informasi Produk	Visual
1	COVER UNDER Part Number : `50621K25900ZA`
1	COVER UNDER Part Number : `50621K25600ZA`
2	STEP FLOOR Part Number : `6431AK25900`
3	COVER R FLOOR SIDE Part Number : `64320K25900ZA`
4	COVER L FLOOR SIDE Part Number : `64330K25900ZA`
5	LID BATTERY Part Number : `64460K25900ZA`
6	BOLT SPECIAL 6MM Part Number : `90107KVB900`
7	NUT SPRING 4MM Part Number : `90302KWWA00`
8	NUT CLIP 5MM. Part Number : `90677KANT00`
9	SCREW PAN 5X11.5 Part Number : `91509GE2760`
10	BOLT WASHER 6X12 Part Number : `934040601200`
10	BOLT WASHER 6X12 Part Number : `934040601207`
11	SCREW TAPPING 4X12 Part Number : `9390324380`
12	SCREW TAPPING 4X16 Part Number : `9390324480`
12	SCREW TAPPING 4X16 Part Number : `9390334480`
13	SCREW TAPPING 5X12 Part Number : `9390335280`
