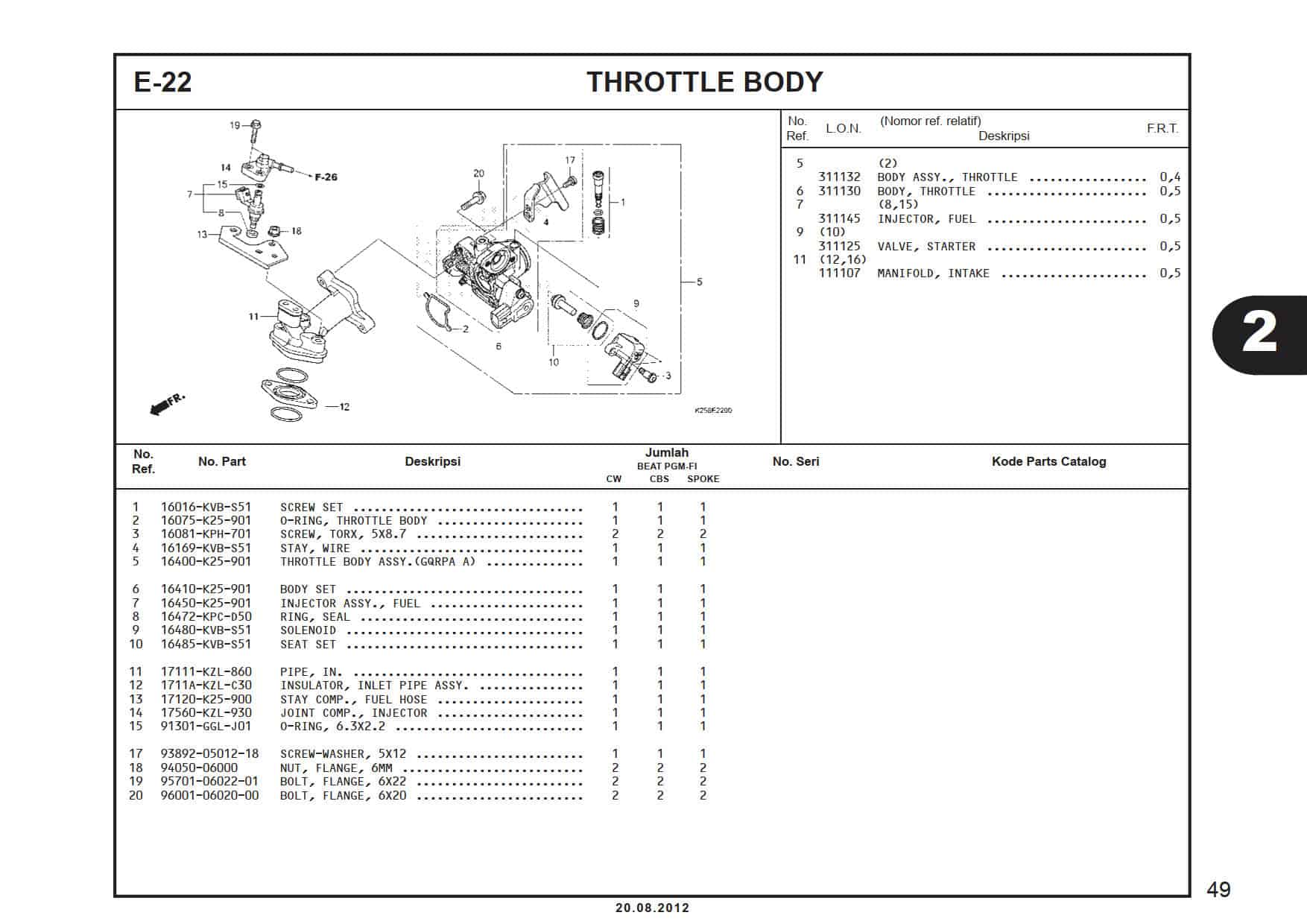

E-22 Throttle Body – Katalog Suku Cadang Honda BeAT FI K25A

#	Informasi Produk	Visual
1	SCREW SET Part Number : `16016KVBS51`
1	SCREW SET Part Number : `16016K03H11`
2	O-RING THROTTLE BODY Part Number : `16075K25901`
3	SCREW, TORX, 5X8.7 Part Number : `16081KPH701`
3	SCREW, TORX, 5X8.7 Part Number : `16081KYJ902`
4	STAY WIRE Part Number : `16169KVBS51`
5	THROTTLE BODY ASSY Part Number : `16400K25901`
6	BODY SET Part Number : `16410K25901`
7	INJECTOR ASSY FUEL Part Number : `16450K25901`
8	RING, SEAL Part Number : `16472KPCD50`
9	SOLENOID SET Part Number : `16480KVBS51`
10	SEAT SET Part Number : `16485KVBS51`
11	PIPE INLET Part Number : `17111KZL860`
12	INSULATOR,INLET PIPE ASSY Part Number : `1711AKZLC30`
13	STAY COMP., FUEL HOSE Part Number : `17120K25900`
14	JOINT COMP INJECTOR Part Number : `17560KZL930`
15	O-RING, 6.3X2.2 Part Number : `91301GGLJ01`
17	SCREW WASHER 5X12 Part Number : `938920501218`
18	NUT,FLANGE 6MM Part Number : `9405006000`
19	BOLT FLANGE 6X22 Part Number : `957010602200`
20	BOLT FLANGE 6X20 Part Number : `960010602000`
