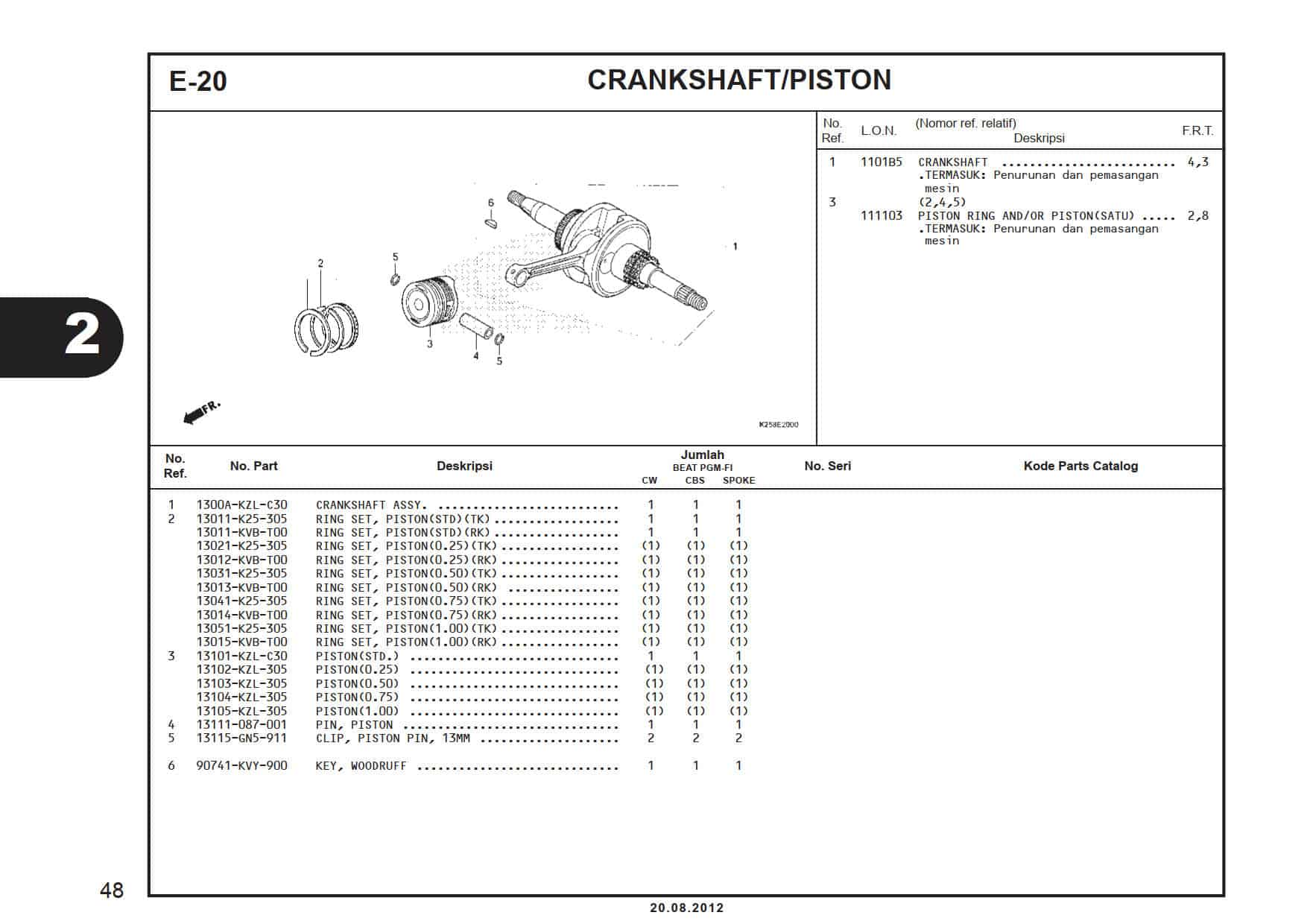

E-20 CrankShaft/ Piston – Katalog Suku Cadang Honda BeAT FI K25A

#	Informasi Produk	Visual
1	CRANKSHAFT ASSY Part Number : `1300AKZLC30`
2	RING SET, PISTON (STD) Part Number : `13011K25305`
2	RING SET, PISTON (STD) Part Number : `13011KVBT00`
2	RING SET, PISTON (0,25) Part Number : `13021K25305`
2	RING SET, PISTON (0.25) Part Number : `13012KVBT00`
2	RING SET, PISTON (0,50) Part Number : `13031K25305`
2	RING SET, PISTON (0.50) Part Number : `13013KVBT00`
2	RING SET, PISTON (0,75) Part Number : `13041K25305`
2	RING SET, PISTON(0.75) Part Number : `13014KVBT00`
2	RING SET, PISTON (1,00) Part Number : `13051K25305`
2	RING SET, PISTON(1.00) Part Number : `13015KVBT00`
3	PISTON (STD) Part Number : `13101KZLC30`
3	PISTON (0,25) Part Number : `13102KZL305`
3	PISTON (0,50) Part Number : `13103KZL305`
3	PISTON (0,75) Part Number : `13104KZL305`
3	PISTON (1,00) Part Number : `13105KZL305`
4	PIN PISTON Part Number : `13111087001`
5	Clip Piston Pin 13MM Part Number : `13115GN5911`
5	Clip Piston Pin 13MM Part Number : `13115GN5910`
6	KEYWOODRUFF Part Number : `90741KVY900`
