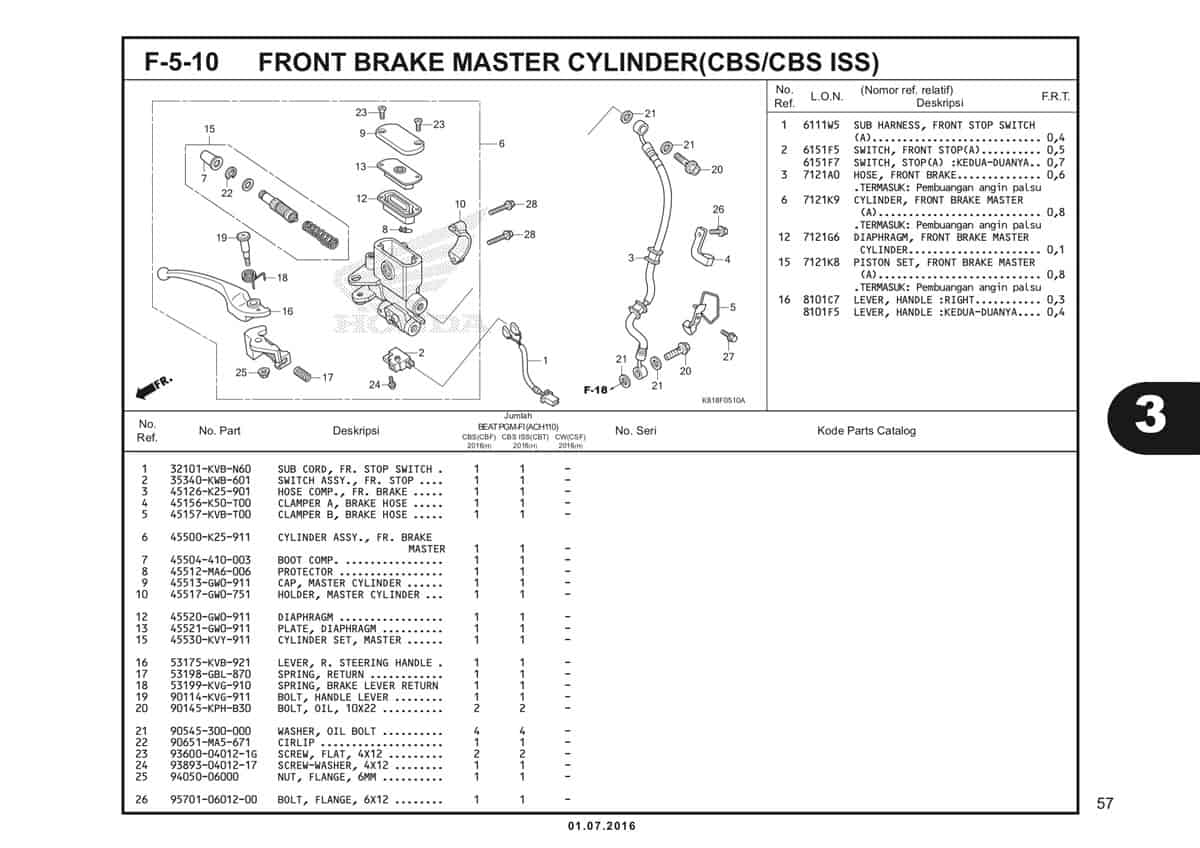

F5 – 10 – Front Brake Master Cylinder – Katalog Honda BeAT eSP K81

#	Informasi Produk	Visual
1	SUB CORD FR STOP SW Part Number : `32101KVBN60`
2	SWITCH FR STOP ASSY Part Number : `35340KWB601`
3	HOSE COMP FR BRAKE Part Number : `45126K25901`
4	CLAMPER A, BRAKE SHOE Part Number : `45156K50T00`
5	CLAMPER B BRAKE HOS Part Number : `45157KVBT00`
6	CYLINDER ASSY, FR BRAKE MASTER Part Number : `45500K25911`
7	BOOT COMP Part Number : `45504410003`
8	PROTECTOR Part Number : `45512MA6006`
9	CAP,MASTER CYLINDER Part Number : `45513GW0911`
10	HOLDER M/C Part Number : `45517GW0751`
12	DIAPHRAGM Part Number : `45520GW0911`
13	PLATE,DIAPHRAGM Part Number : `45521GW0911`
15	CYLINDER SET MASTER Part Number : `45530KVY911`
16	LEVER R STRG HDL Part Number : `53175KVB921`
17	SPRING RETURN Part Number : `53198GBL870`
18	SPRING BRAKE LEVER RETURN Part Number : `53199KVG910`
19	BOLT HANDLE LEVER Part Number : `90114KVG911`
20	BOLT OIL, 10X22 (NISSIN) Part Number : `90145KPHB30`
21	WASHER OIL BOLT Part Number : `90545300000`
22	CIRCLIP Part Number : `90651MA5671`
23	SCREW FLAT, 4X12 Part Number : `93600040121G`
24	SCREW WASHER 4X12 Part Number : `938930401217`
25	NUT,FLANGE 6MM Part Number : `9405006000`
26	BOLT FLANGE 6X12 Part Number : `957010601200`
27	BOLT FLANGE 6X14 Part Number : `957010601400`
28	BOLT FLANGE 6X22 Part Number : `960010602200`
