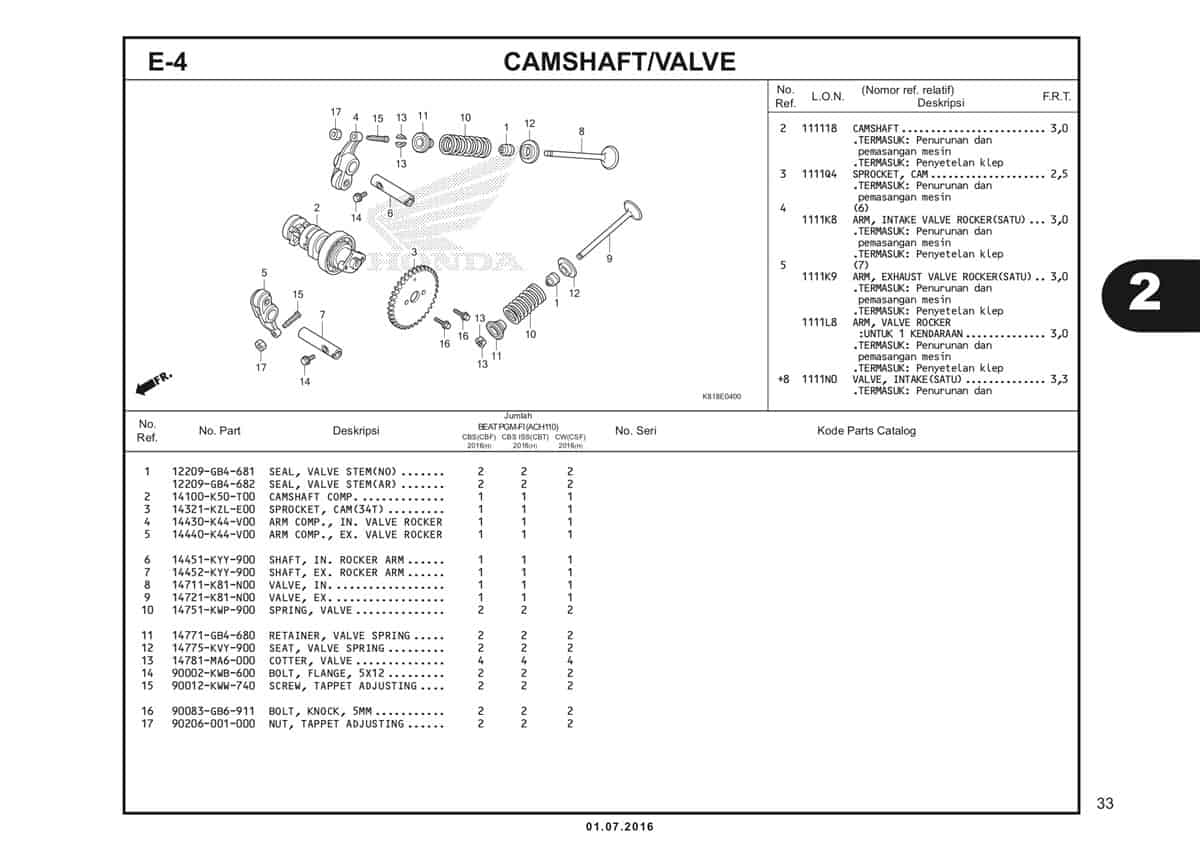

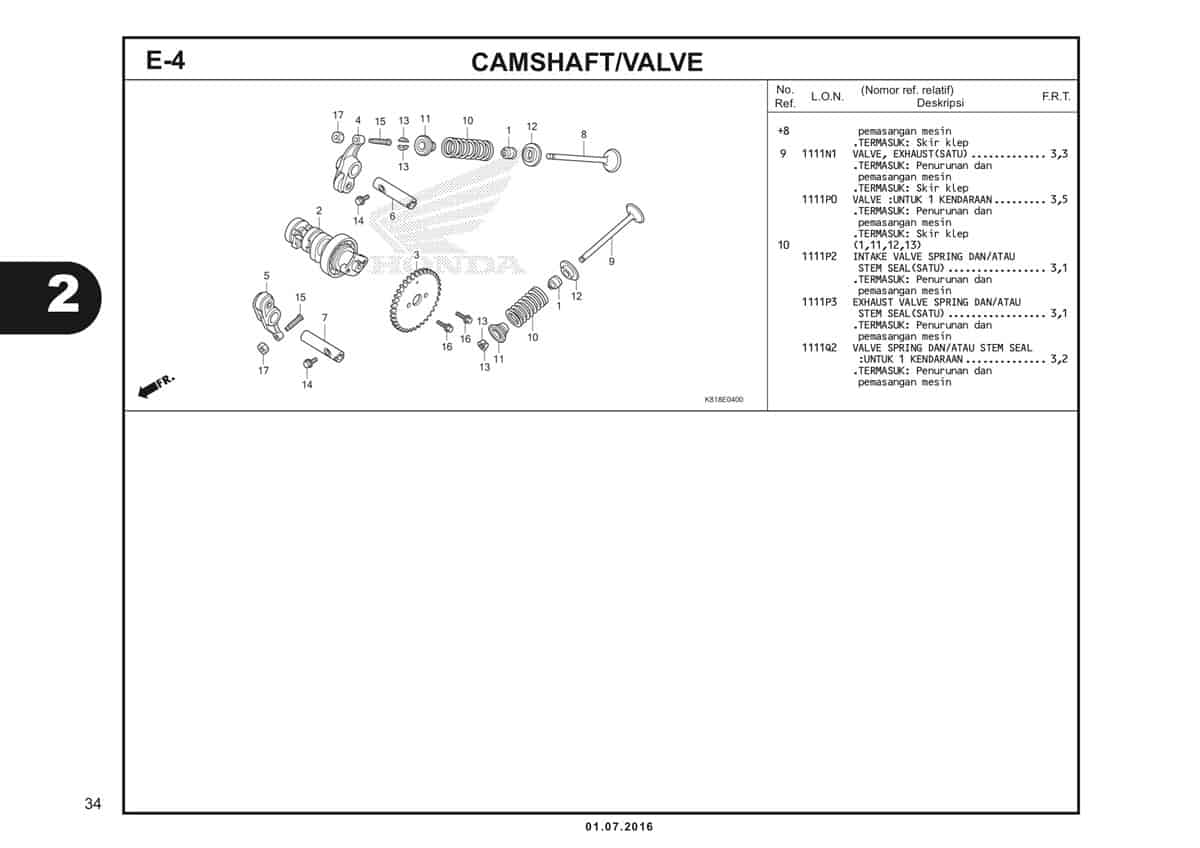

E4 – Camshaft/Valve – Katalog Honda BeAT eSP K81

#	Informasi Produk	Visual
1	SEAL,VALVE STEM Part Number : `12209GB4681`
1	SEAL VLV. STEM Part Number : `12209GB4682`
2	SHAFTCOMP, CAM Part Number : `14100K50T00`
3	SPROCKET, CAM(34T) Part Number : `14321KZLE00`
4	ARM COMP IN VALVE Part Number : `14430K44V00`
4	ARM COMP IN VALVE Part Number : `14430K93N00`
5	ARM COMP EX VALVE Part Number : `14440K44V00`
5	ARM COMP EX VALVE Part Number : `14440K93N00`
6	SHAFT IN ROCKER ARM Part Number : `14451KYY900`
7	SHAFT EX ROCKER ARM Part Number : `14452KYY900`
8	VALVE INLET Part Number : `14711K81N00`
9	VALVE EXHAUST Part Number : `14721K81N00`
10	SPRING VALVE Part Number : `14751KWP900`
11	RETAINER Part Number : `14771GB4680`
12	SEAT, VALVE SPRING Part Number : `14775KVY900`
13	COTTER,VALVE Part Number : `14781MA6000`
14	BOLT FLANGE 5X12 Part Number : `90002KWB600`
15	SCREW TAPPET ADJUSTING Part Number : `90012KWW740`
16	BOLT, KNOCK, 5MM Part Number : `90083GB6911`
17	NUT,TAPPET ADJUST Part Number : `90206001000`
