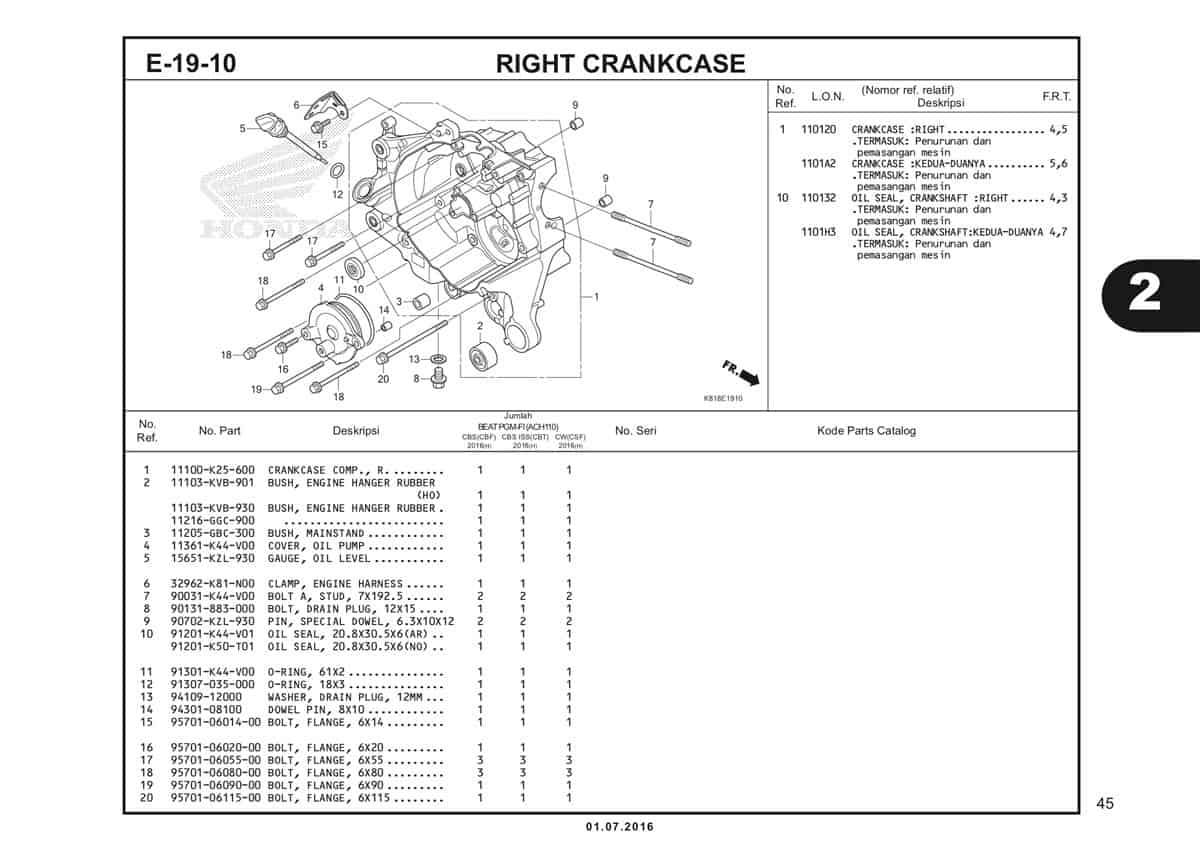

E19 – 10 – Right Crankcase – Katalog Honda BeAT eSP K81

#	Informasi Produk	Visual
1	CRANK CASE COMP,RIGHT Part Number : `11100K25600`
2	RUB.BUSH,ENG.HANGER Part Number : `11103KVB930`
2	RUB.BUSH,ENG.HANGER Part Number : `11103K0JN00`
2	RUB.BUSH,ENG.HANGER Part Number : `11103K0JN21`
3	BUSH M STAND Part Number : `11205GBC300`
4	COVER OIL PUMP Part Number : `11361K44V00`
5	GAUGE OIL LEVEL Part Number : `15651KZL930`
5	GAUGE OIL LEVEL Part Number : `15651KZR600`
6	CLAMP ENGINE HARNESS Part Number : `32962K44V00`
7	BOLT A STUD 7X192.5 Part Number : `90031K44V00`
8	BOLT DRAIN PLUG 12X15 Part Number : `90131883000`
9	PIN DOWEL SPL 6.3X10X12 Part Number : `90702KZL930`
10	OIL SEAL,20.8X30.5X6 Part Number : `91201K44V01`
10	OIL SEAL,20.8X30.5X6 Part Number : `91201K50T01`
11	O-RING, 61X2 Part Number : `91301K44V00`
12	O-RING, 18X3 Part Number : `91307035000`
13	WASHER, DRAIN PLUG, 12MM Part Number : `9410912000`
14	PIN DOWEL 8X10 Part Number : `9430108100`
15	BOLT FLANGE 6X14 Part Number : `957010601400`
16	BOLT FLANGE 6X20 Part Number : `957010602000`
17	BOLT FLANGE 6X55 Part Number : `957010605500`
18	BOLT FLANGE 6X80 Part Number : `957010608000`
19	BOLT FLANGE 6X90 Part Number : `957010609000`
20	BOLT FLANGE 6X115 Part Number : `957010611500`
