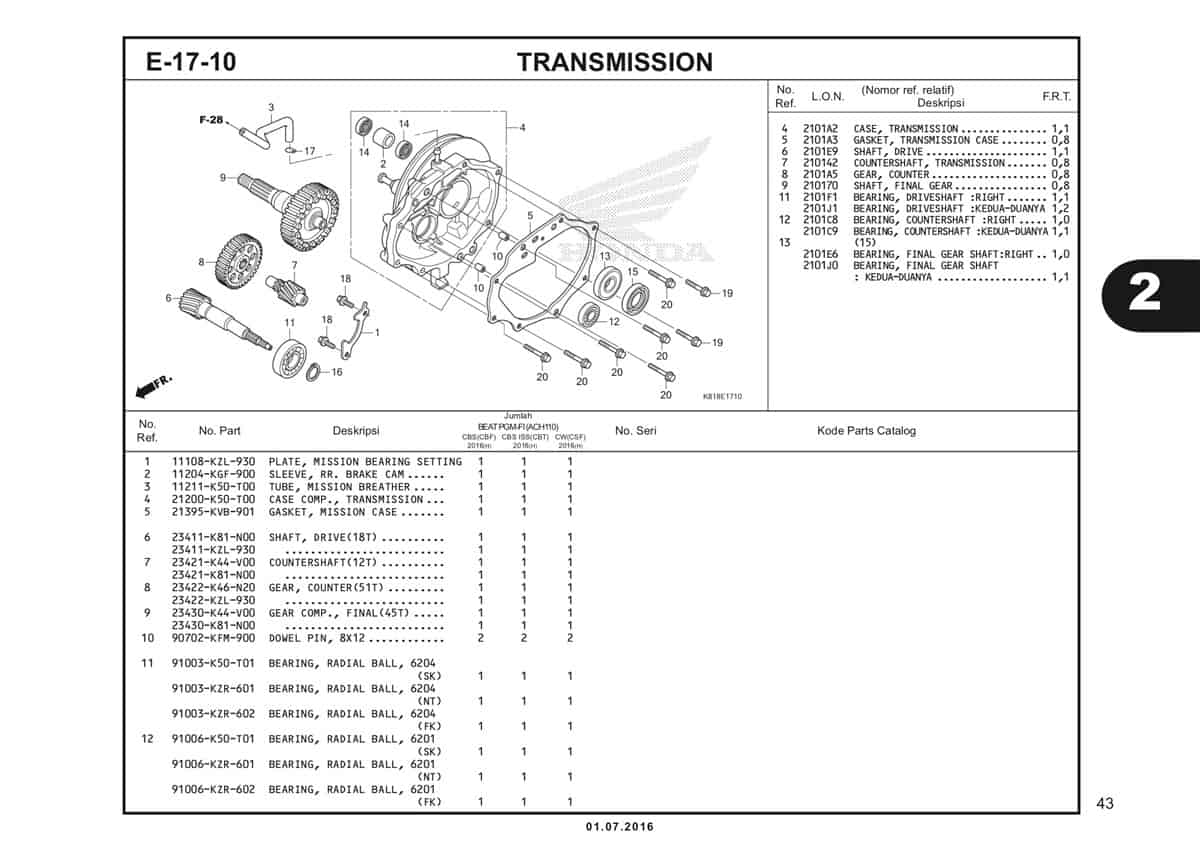

E17 – 10 – Transmission – Katalog Honda BeAT eSP K81

#	Informasi Produk	Visual
1	PLATE MISSION BEARING SET Part Number : `11108KZL930`
2	SLEEVE RR BRAKE CAM Part Number : `11204KGF900`
3	TUBE MISSION BREATHER Part Number : `11211K50T00`
4	Case Assy. Mission Part Number : `21200K25FA0`
5	GASKET MISSION CASE Part Number : `21395KVB901`
6	SHAFT,DRIVE Part Number : `23411KZL930`
6	SHAFT,DRIVE Part Number : `23411KZLC30`
7	COUNTERSHAFT(12T) Part Number : `23421K44V00`
8	GEAR, COUNTER(51T) Part Number : `23422KZL930`
9	GEAR COMP FINAL(45T) Part Number : `23430K44V00`
10	PIN DOWEL 8X12 Part Number : `90702KFM900`
11	BRG,BALL RADIAL 6204 Part Number : `91003K50T01`
11	BRG,BALL RADIAL 6204 Part Number : `91003KZR601`
11	BEARING RADIAL BALL 6204 Part Number : `91003KZR602`
12	BRG,BALL RADIAL 6201 Part Number : `91006K50T01`
12	BEARING RADIAL BALL 6201 Part Number : `91006KZR601`
12	BEARING RADIAL BALL 6201 Part Number : `91006KZR602`
13	BEARING RAD BALL 60/22UU Part Number : `91009K44V01`
13	BRG,BALL RADIAL 60/22 UU Part Number : `91009K50T01`
14	OIL SEAL 14X20X3.2 Part Number : `91201434003`
14	OIL SEAL 14X20X3.2 Part Number : `91201434005`
15	OIL SEAL 29X44X7(NOK) Part Number : `91204K50T01`
16	CIRCLIP, EXTERNAL, 20MM Part Number : `9451020000`
17	CLIP,TUBE 5.0 MM Part Number : `9500250000`
18	BOLT FLANGE 6X14 Part Number : `957010601400`
19	BOLT FLANGE 6X30 Part Number : `957010603000`
20	BOLT FLANGE 6X40 Part Number : `957010604000`
