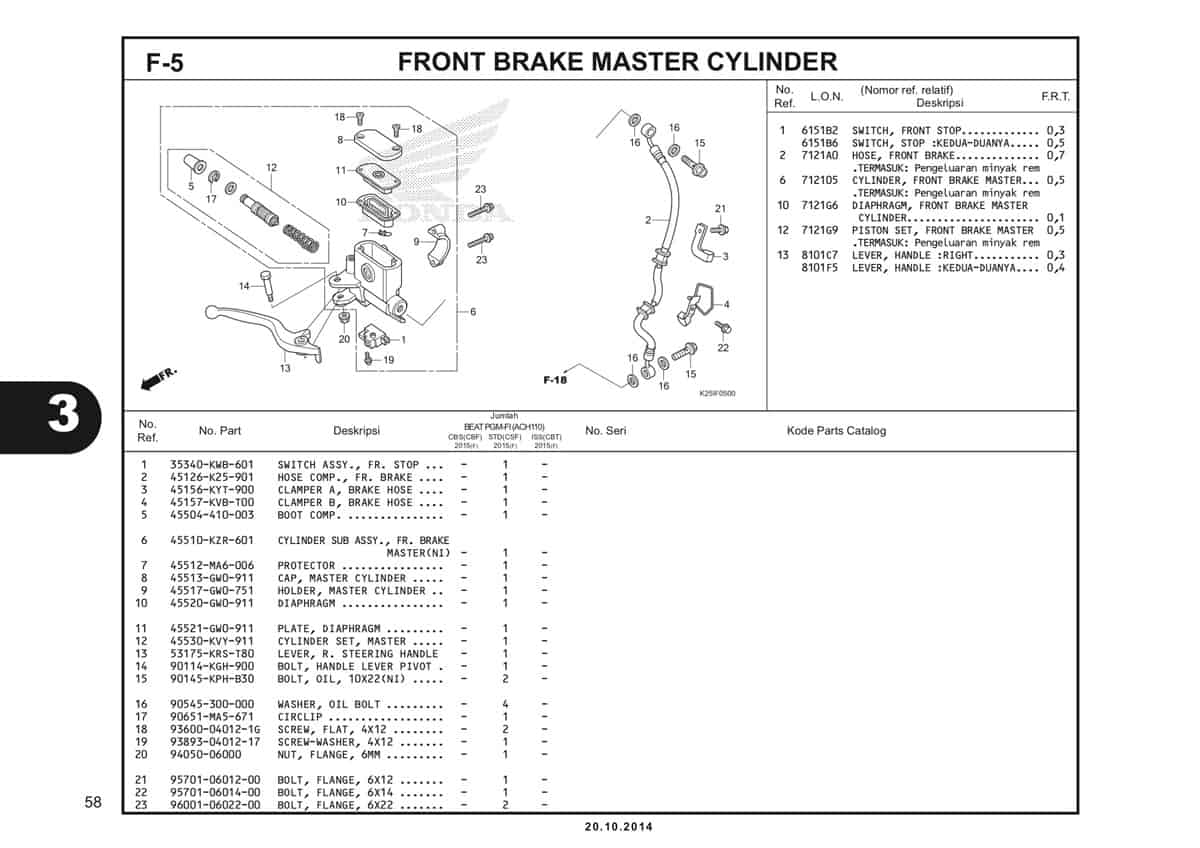

F5 – Front Brake Master Cylinder – Katalog Honda BeAT eSP K25

#	Informasi Produk	Visual
1	Switch FR Stop Assy Part Number : `35340KWB601`
1	Switch FR Stop Assy Part Number : `35340MA5671`
1	Switch FR Stop Assy Part Number : `35340GW3980`
2	Hose Comp FR Brake Part Number : `45126K25901`
3	Clamper A Brake Hose Part Number : `45156KYT900`
4	Clamper B Brake Hose Part Number : `45157KVBT00`
5	Boot Comp Part Number : `45504410003`
6	Cylinder Sub Assy FR Brake Part Number : `45510KZR601`
6	Cylinder Sub Assy FR Brake Part Number : `45510K81N21`
7	Protector Part Number : `45512MA6006`
8	Cap Master Cylinder Part Number : `45513GW0911`
9	Holder M/C Part Number : `45517GW0751`
10	Diaphragm Part Number : `45520GW0911`
11	Plate Diaphragm Part Number : `45521GW0911`
12	Cylinder Set Mater Part Number : `45530KVY911`
13	Lever R Steering Handle Part Number : `53175KRST80`
14	Bolt Handle Lever Part Number : `90114KGH900`
15	Bolt oil 10X22 (NISSIN) Part Number : `90145KPHB30`
16	Washer Oil Bolt Part Number : `90545300000`
17	Circlip Part Number : `90651MA5671`
18	Screw Flat 4X12 Part Number : `93600040121G`
19	Screw Washer 4X12 Part Number : `938930401217`
20	Nut Flange 6MM Part Number : `9405006000`
21	Bolt Flange 6X12 Part Number : `957010601200`
21	Bolt Flange 6X12 Part Number : `90102MN1670`
22	Bolt Flange 6X14 Part Number : `957010601400`
22	Bolt Flange 6X14 Part Number : `90001K56N00`
23	Bolt Flange 6X22 Part Number : `960010602200`
