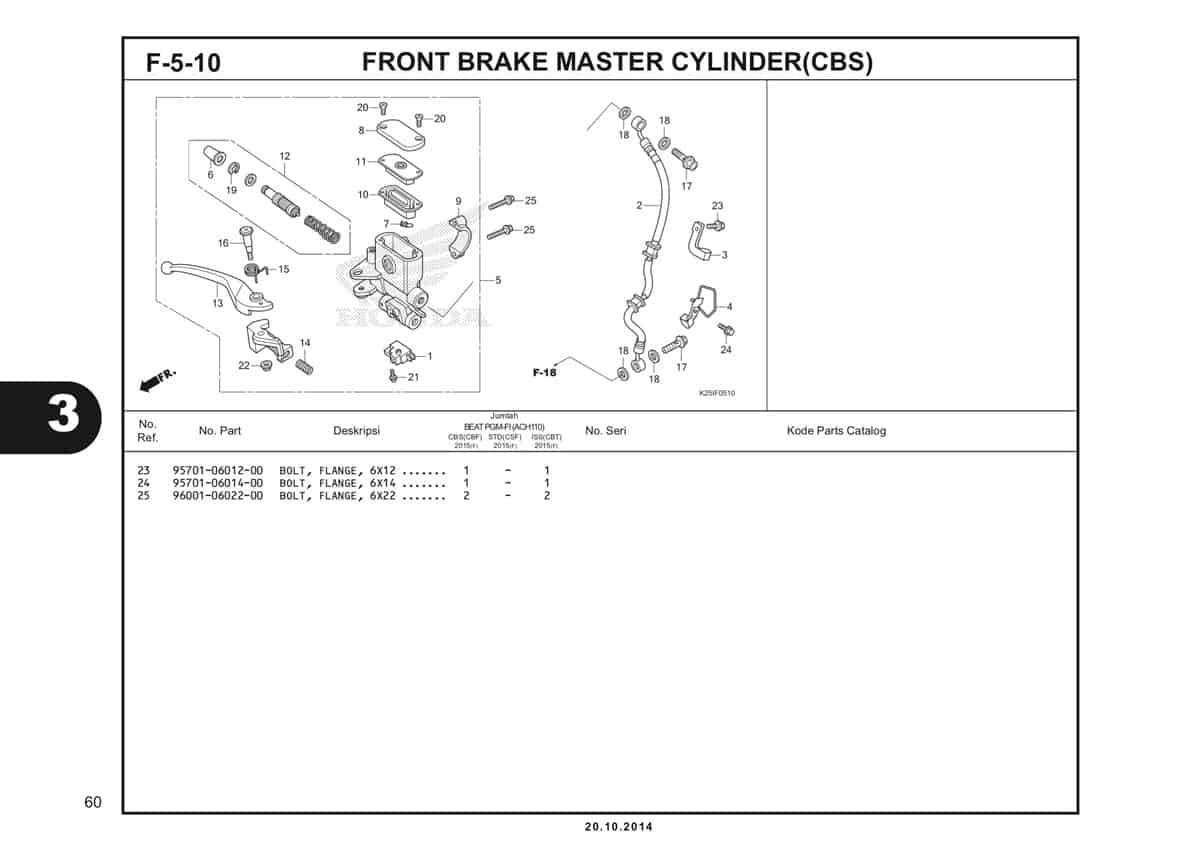

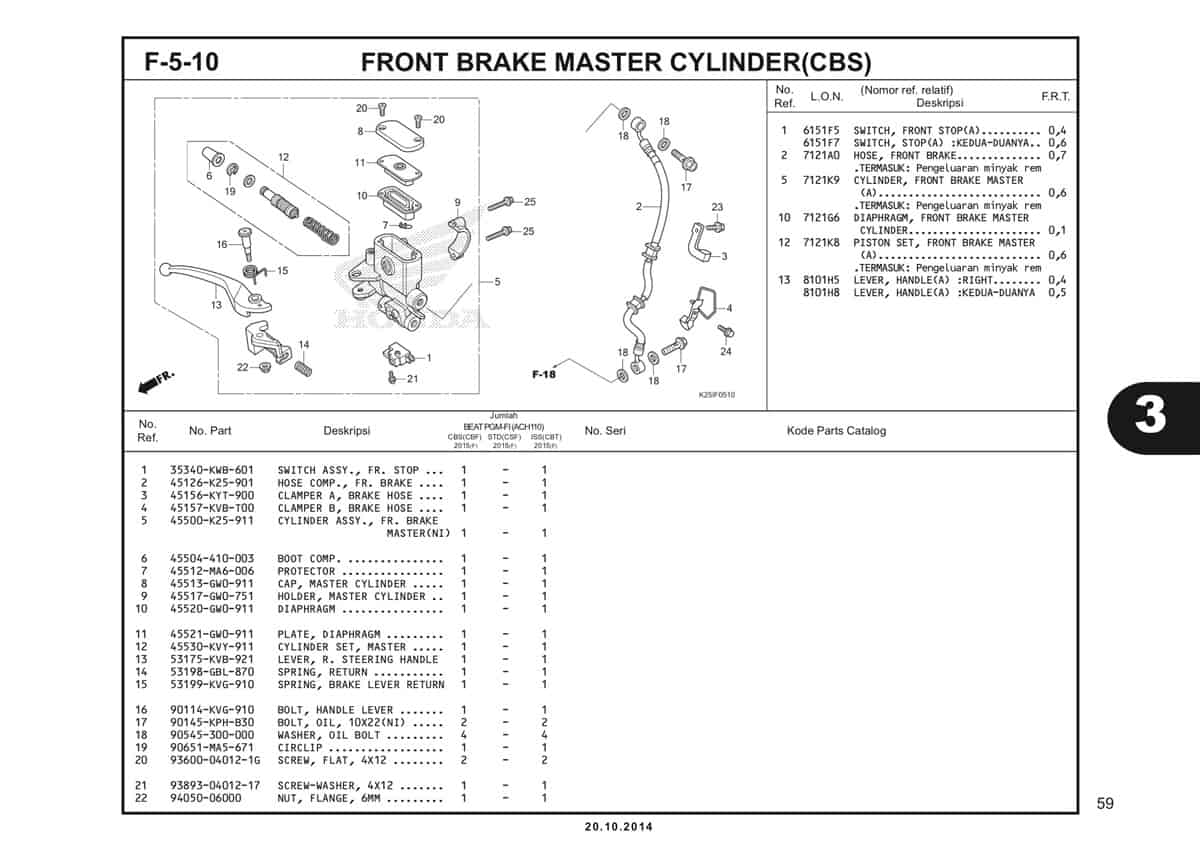

F5 – 10 – Front Brake Master Cylinder (CBS) – Katalog Honda BeAT eSP K25

#	Informasi Produk	Visual
1	Switch FR Stop Assy Part Number : `35340KWB601`
1	Switch FR Stop Assy Part Number : `35340GW3980`
2	Hose Comp FR Brake Part Number : `45126K25901`
3	Clamper A Brake Hose Part Number : `45156KYT900`
4	Clamper B Brake Hose Part Number : `45157KVBT00`
5	Master Cylinder Assy FR Part Number : `45500K25911`
6	Boot Comp Part Number : `45504410003`
7	Protector Part Number : `45512MA6006`
8	Cap Master Cylinder Part Number : `45513GW0911`
9	Holder Master Cylinder Part Number : `45517GW0751`
10	Diaphragm Part Number : `45520GW0911`
11	Plate Diaphragm Part Number : `45521GW0911`
12	Master Cylinder Set Part Number : `45530KVY911`
13	Lever R Steering Handle Part Number : `53175KVB921`
14	Spring Return Part Number : `53198GBL870`
15	Spring Brake Lever Return Part Number : `53199KVG910`
16	Bolt Handle Lever Part Number : `90114KVG911`
17	Bolt Oil 10X22 (NISSIN) Part Number : `90145KPHB30`
18	Washer Oil Bolt Part Number : `90545300000`
19	Circlip Part Number : `90651MA5671`
20	Screw Flat 4X12 Part Number : `93600040121G`
21	Screw Washer 4X12 Part Number : `938930401217`
22	Nut Flange 6MM Part Number : `9405006000`
22	Nut Flange 6MM Part Number : `9405006080`
23	Bolt Flange 6X12 Part Number : `957010601200`
24	Bolt Flange 6X14 Part Number : `957010601400`
24	Bolt Flange 6X14 Part Number : `960010601400`
25	Bolt Flange 6X22 Part Number : `960010602200`
