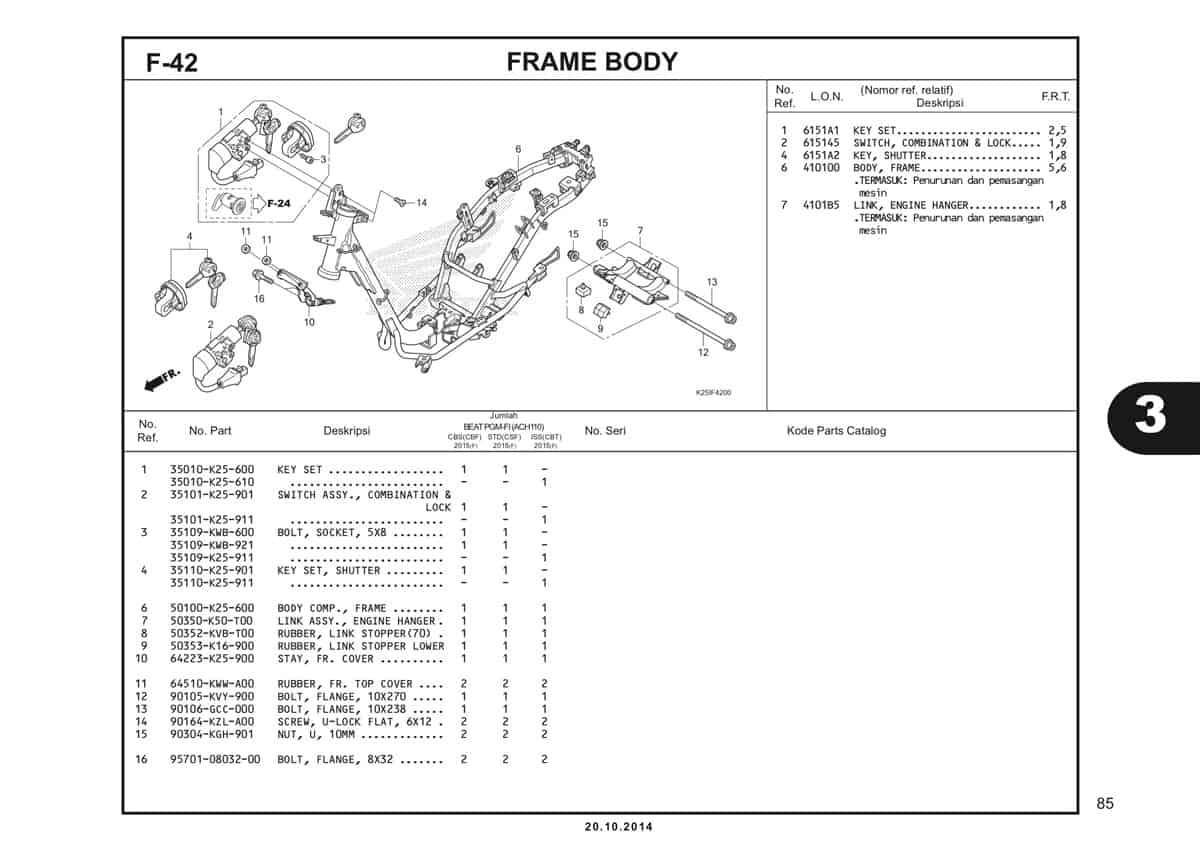

F42 – Frame Body – Katalog Honda BeAT eSP K25

#	Informasi Produk	Visual
1	Key Set Part Number : `35010K25600`
1	Key Set Part Number : `35010K25610`
2	Switch Assy Comb & Lock Part Number : `35101K25901`
2	Switch Assy Comb & Lock Part Number : `35101K25911`
3	Socket Bolt 5X8 Part Number : `35109KWB600`
3	Socket Bolt 5X8 Part Number : `35109KWB920`
3	Socket Bolt 5X8 Part Number : `35109KWWA01`
4	Set Key Shutter Part Number : `35110K25901`
4	Set Key Shutter Part Number : `35110K25911`
6	Body Comp Frame Part Number : `50100K25600`
7	Link Assy Engine Hanger Part Number : `50350K50T00`
8	Rubber Link Stopper (70) Part Number : `50352KVBT00`
9	Rubber Link Stopper Lower Part Number : `50353K16900`
10	Stay FR Cover Part Number : `64223K25900`
11	Rubber FR Top Cover Part Number : `64510KWWA00`
12	Bolt Flange 10X270 Part Number : `90105KVY900`
13	Bolt Flange10X238 Part Number : `90106GCC000`
14	Screw U-Lock Flat 6X12 Part Number : `90164KZLA00`
15	Nut U10MM Part Number : `90304KGH901`
16	Bolt Flange 8X32 Part Number : `957010803200`
