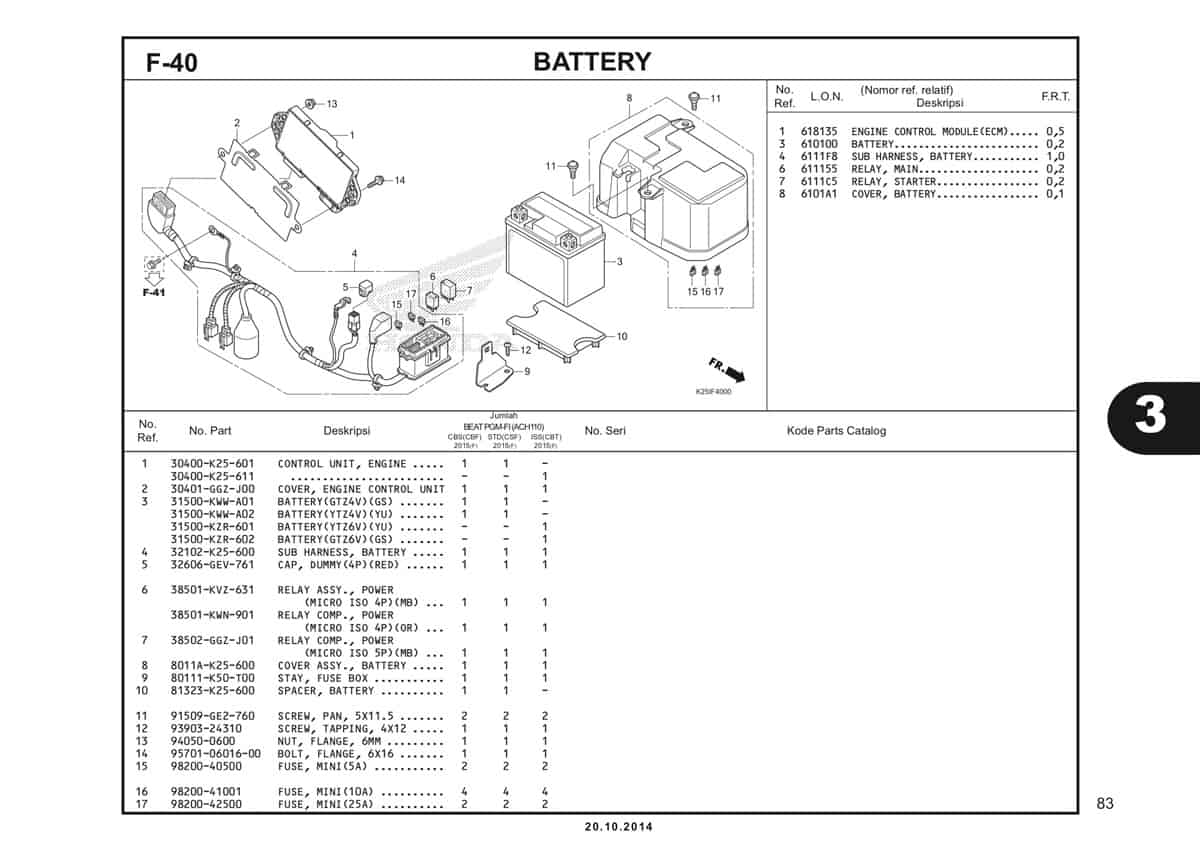

F40 – Battery – Katalog Honda BeAT eSP K25

#	Informasi Produk	Visual
1	Engine Control Unit (NON ISS) Part Number : `30400K25600C1`
1	Engine Control Unit (ISS) Part Number : `30400K25610C1`
2	Cover Engine Control Unit Part Number : `30401GGZJ00`
3	Battery GTZ4V Part Number : `31500KWWA01`
3	Battery YTZ4-V Part Number : `31500KWWA02`
3	Battery YTZ6-V Part Number : `31500KZR601`
3	Battery (GTZ6V) Part Number : `31500KZR602`
4	Sub Harness Battery Part Number : `32102K25600`
5	Dummy WPC 4P 090 M (RED) Part Number : `32606GEV761`
6	Relay Comp Microiso Low Hight Part Number : `38501KVZ631`
6	Relay Comp Power Part Number : `38501KWN901`
7	Relay Comp Power Part Number : `38502GGZJ01`
8	Cover Battery Assy Part Number : `8011AK25600`
9	Stay Fuse Box Part Number : `80111K50T00`
10	Spacer Battery Part Number : `81323K25600`
11	Screw Pan 5X11.5 Part Number : `91509GE2760`
12	Screw Tapping 4X12 Part Number : `9390324310`
13	Nut Flange 6MM Part Number : `9405006000`
14	Bolt Flange 6X16 Part Number : `957010601600`
15	Fuse Mini 5A Part Number : `9820040500`
16	Fuse Mini 10A Part Number : `9820041000`
17	Fuse Mini 25A Part Number : `9820042500`
