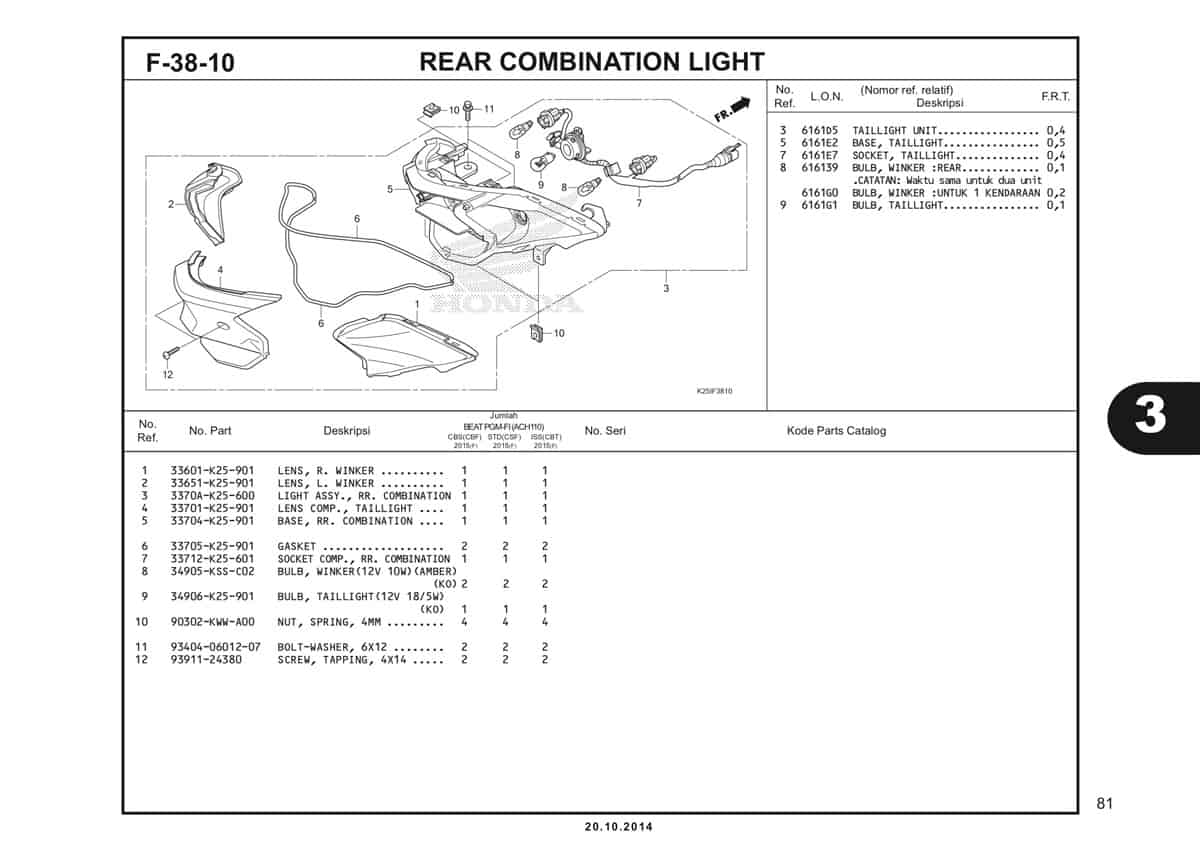

F38 – 10 – Rear Combination Light – Katalog Honda BeAT eSP K25

#	Informasi Produk	Visual
1	Lens R Winker Part Number : `33601K25901`
2	Lens L Winker Part Number : `33651K25901`
3	Light Assy RR Comb Part Number : `3370AK25600`
4	Lens Comp Taillight Part Number : `33701K25901`
5	Base RR Combination Part Number : `33704K25901`
6	Gasket Part Number : `33705K25901`
7	Socket Comb RR Combination Part Number : `33712K25601`
8	Bulb Winker (12V10W)(AMBER) Part Number : `34905KSSC02`
9	Bulb Taillight (12V 18/5W) Part Number : `34906K25901`
9	Bulb Taillight Part Number : `34906GB6921`
10	Nut Spring 4MM Part Number : `90302KWWA00`
11	Bolt Washer 6X12 Part Number : `934040601207`
12	Screw Tapping 4X14 Part Number : `9391124380`
