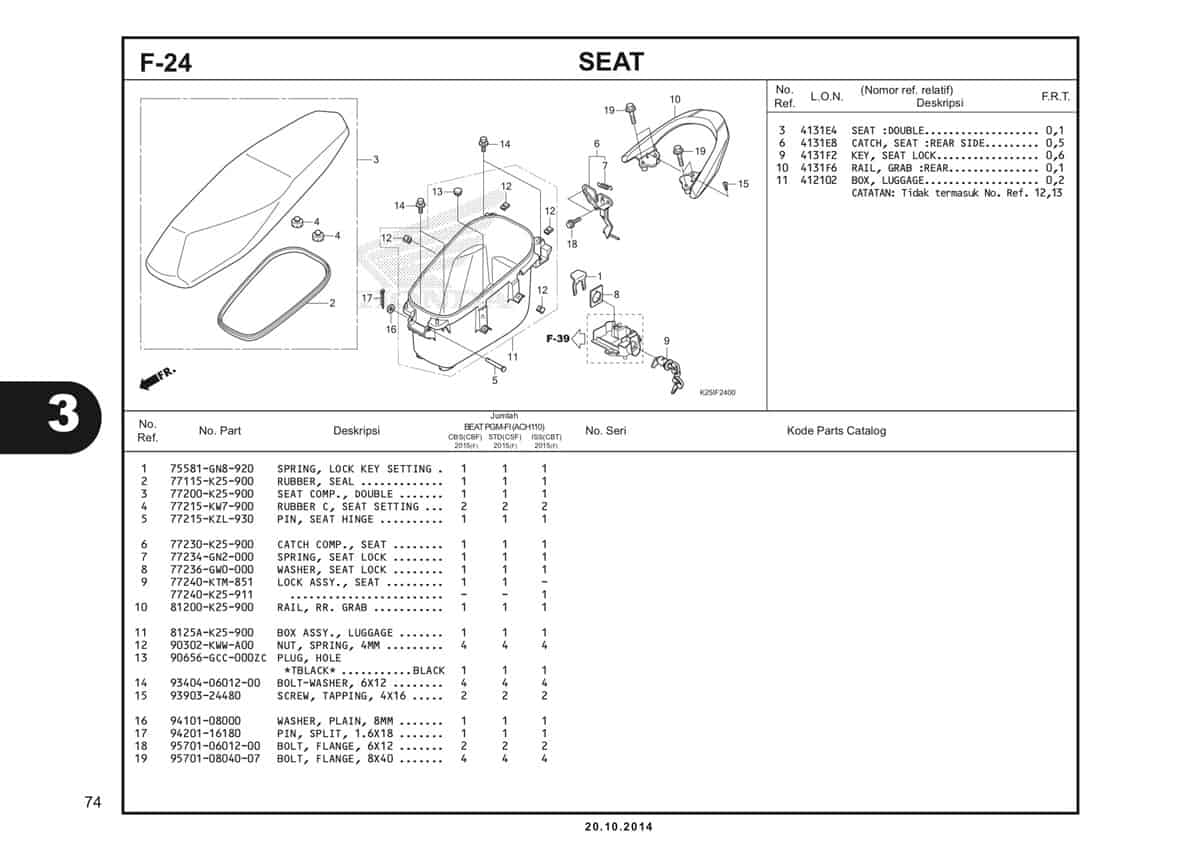

F24 – Seat – Katalog Honda BeAT eSP K25

#	Informasi Produk	Visual
1	Spring Lock Key Part Number : `75581GN8920`
2	Rubber Seal Part Number : `77115K25900`
3	Seat Comp Double Part Number : `77200K25900ZA`
4	Pin Seat Hinge Part Number : `77215KZL930`
5	Catch Comp Seat Part Number : `77230K25900`
6	Spring Seat Lock Part Number : `77234GN2000`
7	Washer Seat Lock Part Number : `77236GW0000`
8	Key Seat Lock Part Number : `77240KTM851`
9	Lock Assy Seat Part Number : `77240K25911`
10	Rail RR Grab Part Number : `81200K25900`
11	Box Luggage Seat Part Number : `8125AK25900`
12	Nut Spring 4MM Part Number : `90302KWWA00`
13	Plug Hole Part Number : `90656GCC000ZC`
13	Plug Hole Part Number : `90656GCC000ZE`
14	Bolt Washer 6X12 Part Number : `934040601200`
14	Bolt Washer 6X12 Part Number : `90022K40F00`
15	Screw Tapping 4X16 Part Number : `9390324480`
15	Screw Tapping 4X16 Part Number : `9390334480`
16	Washer Plain 8MM Part Number : `9410108000`
17	Pin Split 1.6X18 Part Number : `9420116180`
18	Bolt Flange 6X12 Part Number : `957010601200`
19	Bolt Flange 8X40 Part Number : `957010804007`
