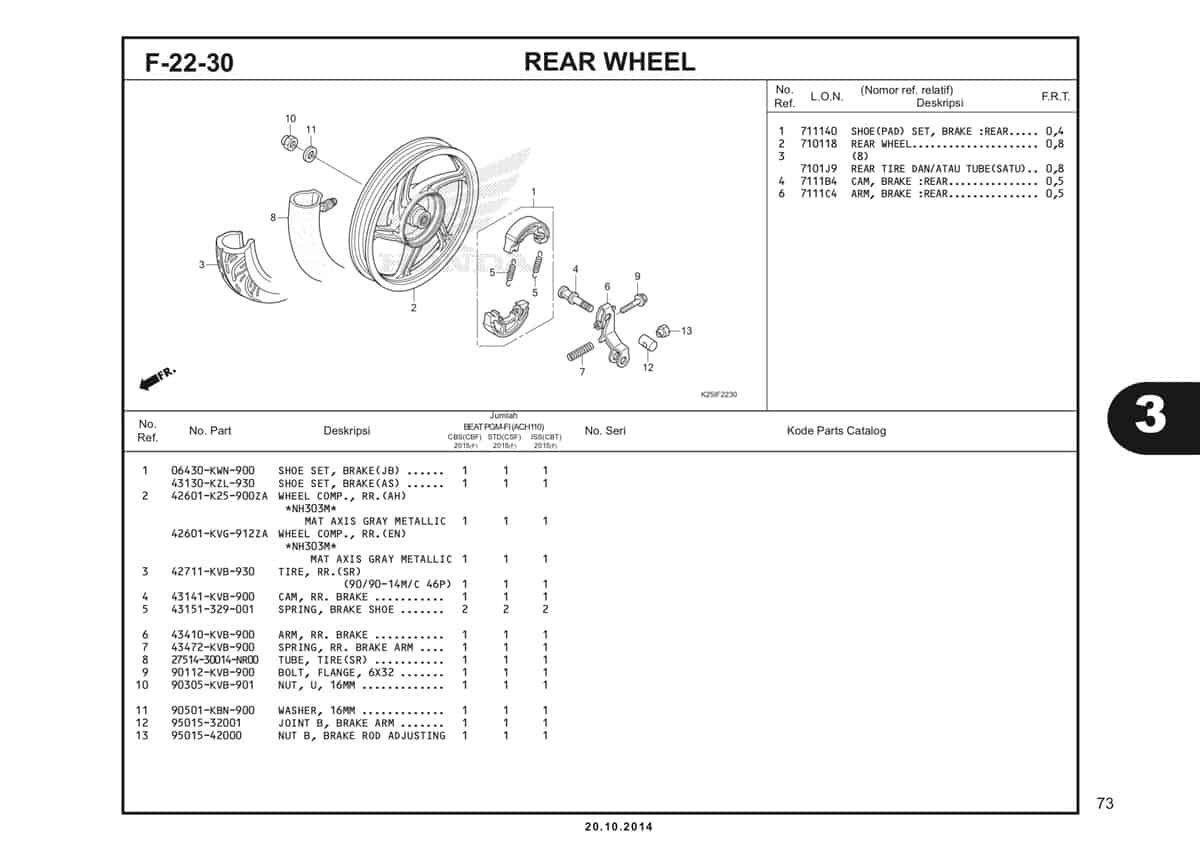

F22 – 30 – Rear Wheel – Katalog Honda BeAT eSP K25

#	Informasi Produk	Visual
1	Shoe Set Brake Part Number : `06430KWN900`
1	Shoe Set Brake Part Number : `06430KZL930`
1	Shoe Set Brake Part Number : `06430K44V80`
1	Brake Shoe Part Number : `43130KZL930`
2	Wheel Comp RR NH-255M Part Number : `42601K16A41ZB`
3	Tire RR Part Number : `42711KVB931`
4	Cam RR Brake Part Number : `43141KVB900`
5	Spring RR Brake Part Number : `43151329001`
6	Arm RR Brake Part Number : `43410KVB900`
7	Spring RR Brake Arm Part Number : `43472KVB900`
8	Tube Tire Part Number : `44712KZT901`
9	Bolt Flange 6X32 Part Number : `90112KVB900`
10	Nut U 16MM Part Number : `90305KVB901`
11	Washer 16MM Part Number : `90501KBN900`
12	Joint Brake Arm Part Number : `9501532001`
13	Nut Adjusting Part Number : `9501542000`
