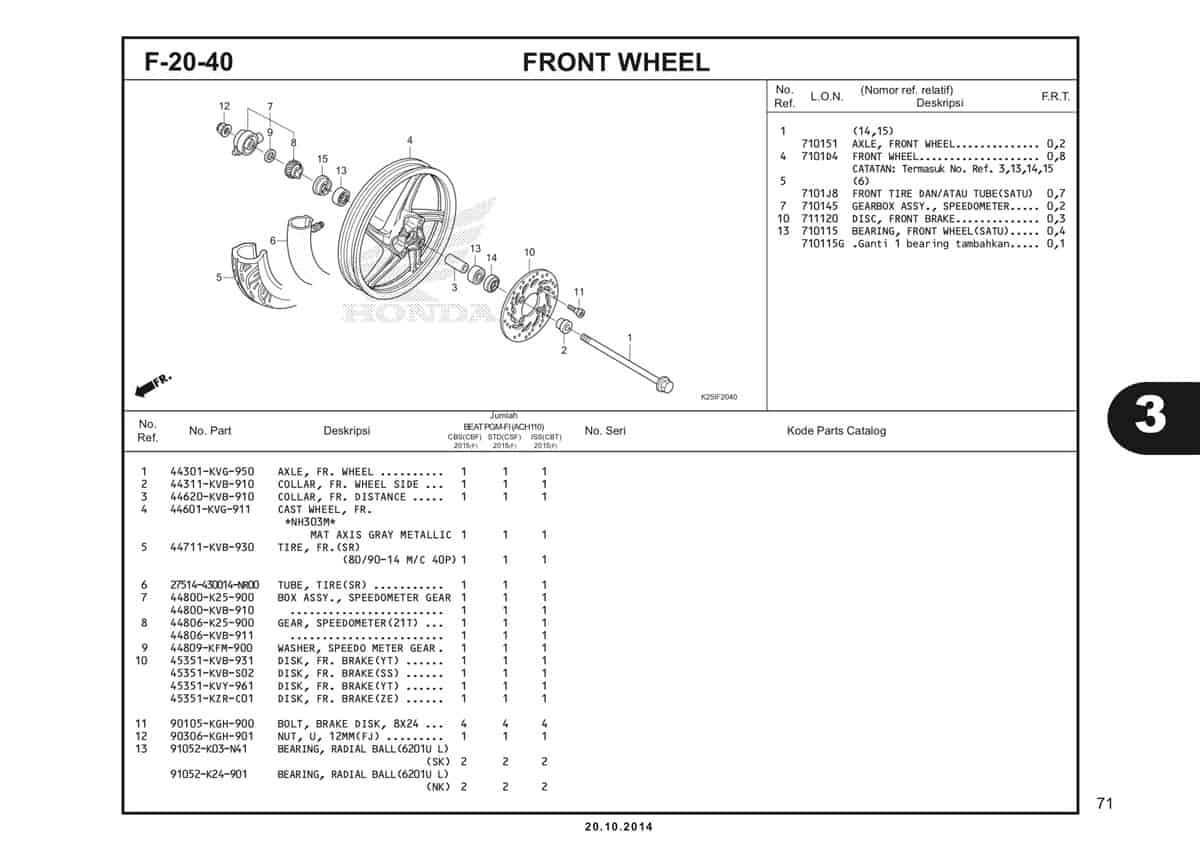

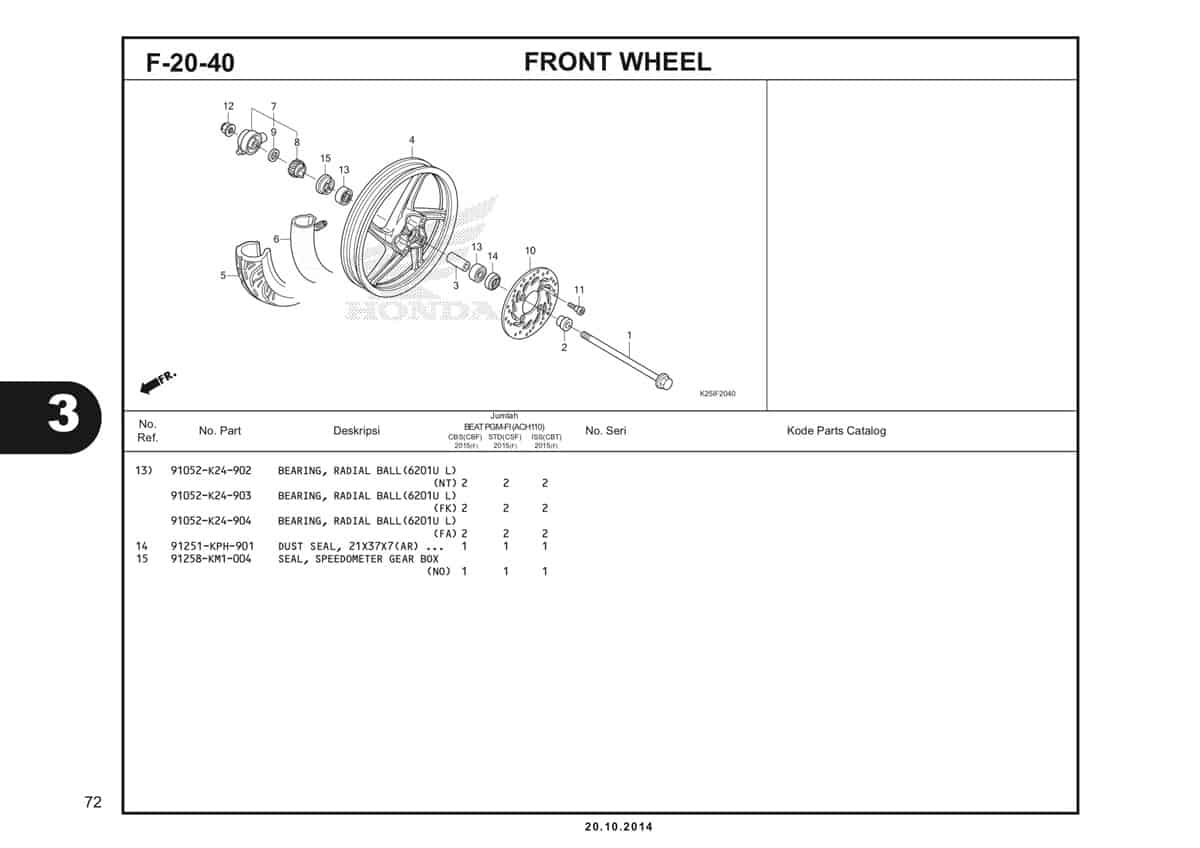

F20 – 40 – Front Wheel – Katalog Honda BeAT eSP K25

#	Informasi Produk	Visual
1	Axle FR Wheel Part Number : `44301KVG950`
2	Collar FR Wheel Side Part Number : `44311KVB910`
3	Collar FR Distance Part Number : `44620KVB910`
4	Cast Wheel FR (MA AX GY) Part Number : `44601KVG911`
5	Tire FR Part Number : `44711KVB930`
5	TIRE FR TT (80/90-14) Part Number : `44711KVB931`
7	Box Assy Speedometer Gear Part Number : `44800K25900`
7	Box Assy Speedometer Gear Part Number : `44800KVB910`
8	Gear Speedometer (21T) Part Number : `44806K25900`
8	Gear Speedometer (21T) Part Number : `44806KVB910`
9	Gear Speedometer Washer Part Number : `44809KFM900`
10	Disk FR Brake Part Number : `45351KVB931`
10	Disk FR Brake Part Number : `45351KVBS02`
10	Disk FR Brake Part Number : `45351KVY961`
11	Bolt Brake Disk 8X24 Part Number : `90105KGH900`
12	Nut U 12MM Part Number : `90306KGH901`
12	Nut U 12MM Part Number : `90306KTZD01`
13	Bearing Radial Ball 6201U L Part Number : `91052K03N41`
13	Bearing Radial Ball 6201U L Part Number : `91052K24903`
13	Bearing Radial Ball 6201U L Part Number : `91052K24904`
14	Dust Seal 21X37X7 Part Number : `91251KPH901`
14	Dust Seal 21X37X7 Part Number : `91251K35V01`
15	Seal Speedometer Gear Box Part Number : `91258KM1004`
