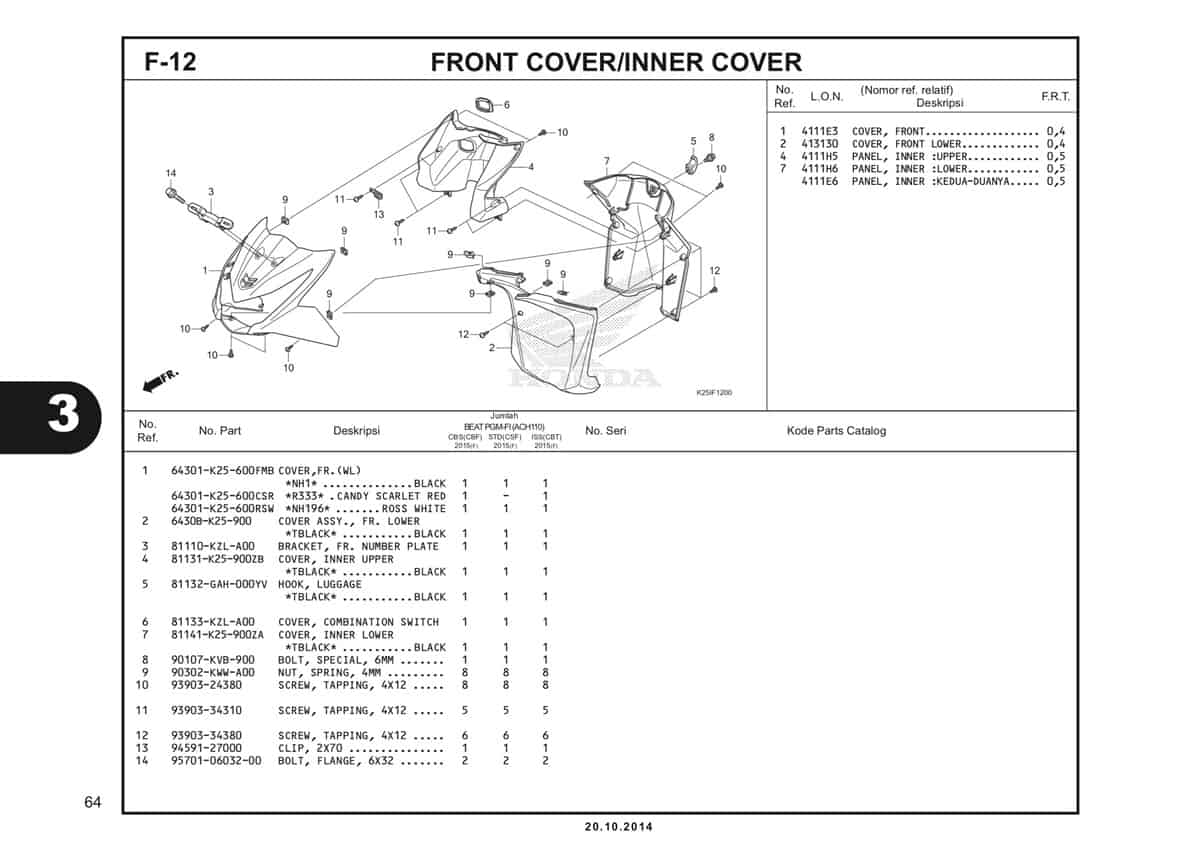

F12 – Front Cover/Inner Cover – Katalog Honda BeAT eSP K25

#	Informasi Produk	Visual
1	Cover FR (BLK) Part Number : `64301K25900FMB`
1	Cover FR (CN SC RD) Part Number : `64301K25900CSR`
1	Cover FR (RO WH) Part Number : `64301K25600RSW`
1	Cover FR (AF BK MT) Part Number : `64301K25900AFB`
1	Cover FR (BR LM GR) Part Number : `64301K25900BLG`
1	Cover FR (NI OR) Part Number : `64301K25900NOR`
1	Cover FR (PL FD WH) Part Number : `64301K25900PFW`
1	Cover FR (VD BL MT) Part Number : `64301K25900VBM`
2	Cover FR LOWER ASSY Part Number : `6430BK25900`
3	Bracket FR Number Plate Part Number : `81110KZLA00`
4	Cover Inner Upper Part Number : `81131K25900ZB`
5	Hook Luggage Part Number : `81132GAH000YV`
6	Cover Combination Switch Part Number : `81133KZLA00`
7	Cover Inner Lower Part Number : `81141K25900ZA`
8	Bolt Special 6MM Part Number : `90107KVB900`
9	Nut Spring 4MM Part Number : `90302KWWA00`
10	Screw Tapping 4X12 Part Number : `9390324380`
11	Screw Tapping 4X12 Part Number : `9390334310`
12	Screw Tapping 4X12 Part Number : `9390334380`
13	Clip 2X70 Part Number : `9459127000`
14	Bolt Flange 6X32 Part Number : `957010603200`
