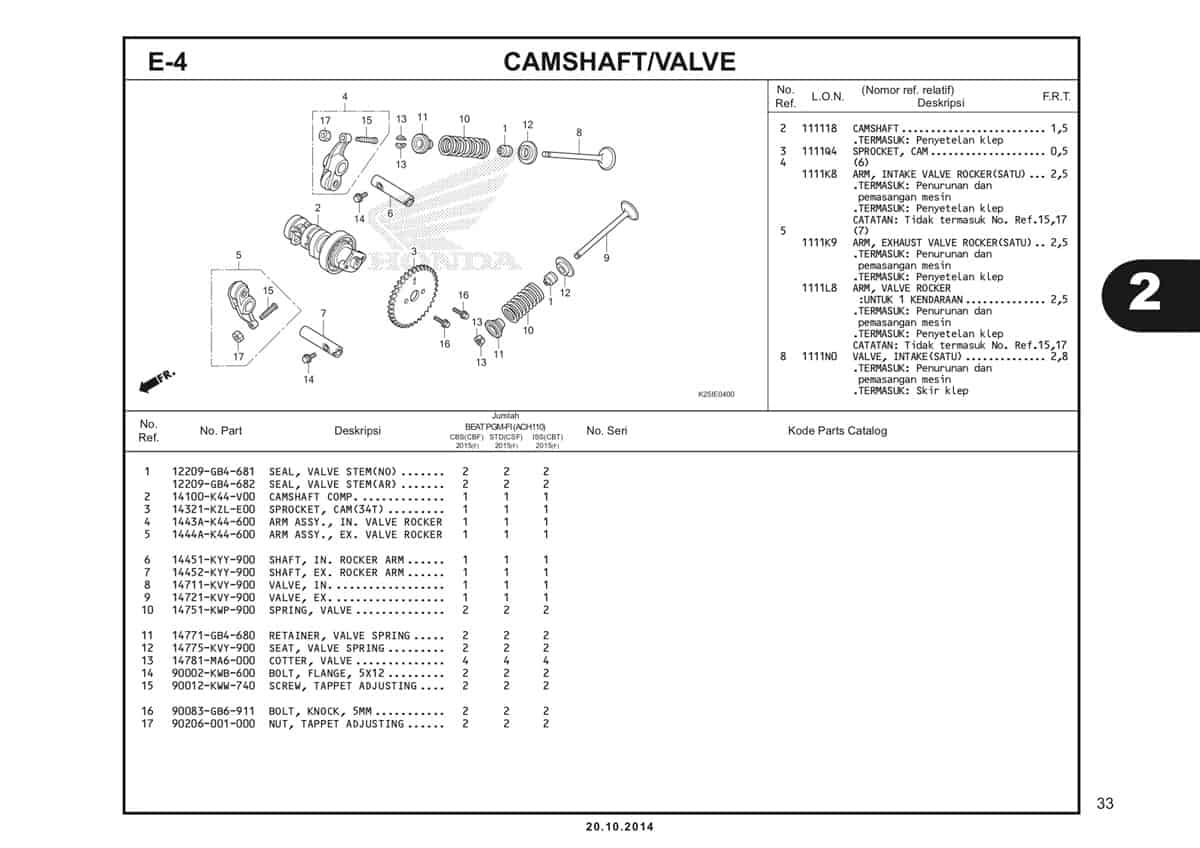

E4 – Camshaft / Valve – Katalog Honda BeAT eSP K25

#	Informasi Produk	Visual
1	Seal Valve Stem Part Number : `12209GB4681`
1	Seal Valve Stem Part Number : `12209GB4682`
2	Camshaft Comp Part Number : `14100K50T00`
3	Sprocket Cam (34T) Part Number : `14321KZLE00`
4	Arm Assy In Valve Rocker Part Number : `14430K93N00`
5	Arm Assy Ex Valve Rocker Part Number : `14440K93N00`
6	Shaft In Rocker Arm Part Number : `14451KYY900`
7	Shaft Ex Rocker Arm Part Number : `14452KYY900`
8	Valve Inlet Part Number : `14711KVY900`
9	Valve Exhaust Part Number : `14721KVY900`
10	Spring Valve Part Number : `14751KWP900`
11	Retainer Part Number : `14771GB4680`
12	Seat Valve Spring Part Number : `14775KVY900`
13	Cotter Valve Part Number : `14781MA6000`
14	Bolt Flange 5X12 Part Number : `90002KWB600`
15	Screw Tappet Adjusting Part Number : `90012KWW740`
16	Bolt Knock 5MM Part Number : `90083GB6911`
17	Nut Tappet Adjusting Part Number : `90206001000`
