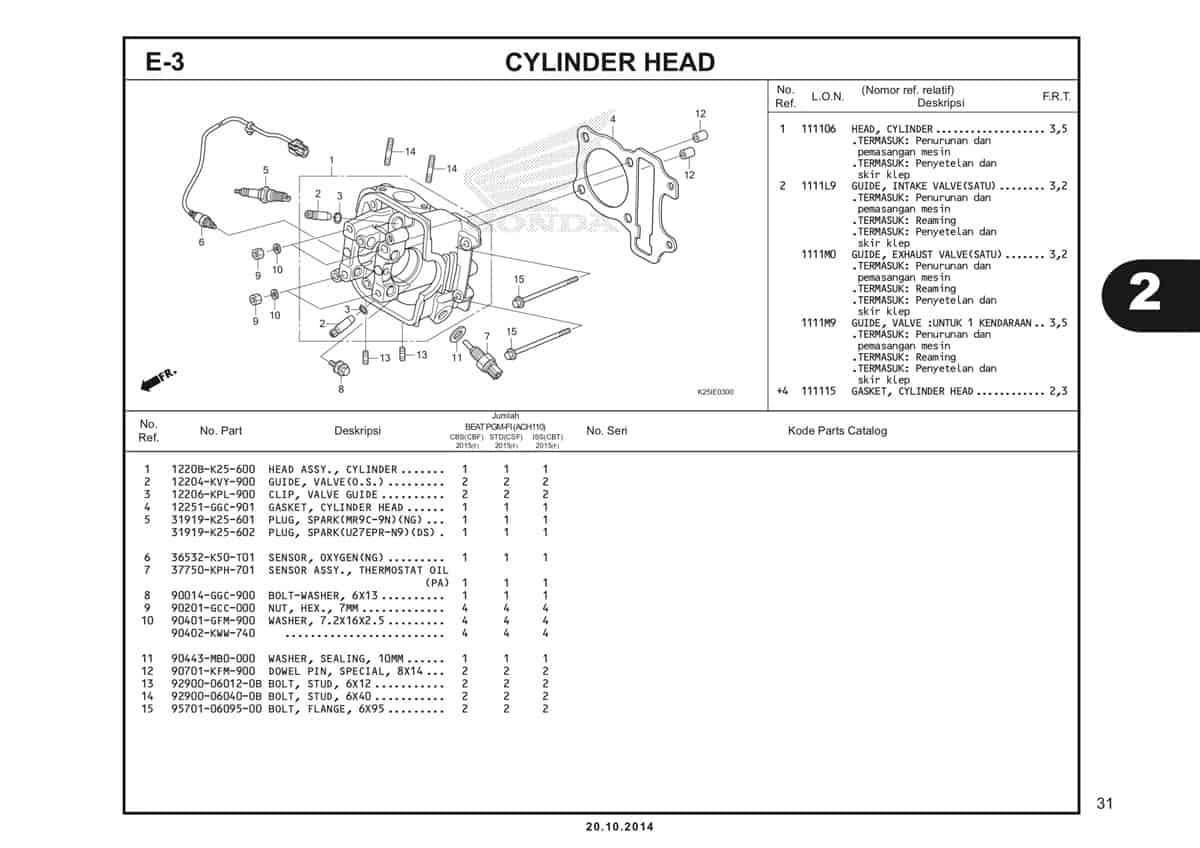

E3 – Cylinder Head – Katalog Honda BeAT eSP K25

#	Informasi Produk	Visual
1	Head Assy Cylinder Part Number : `1220BK25600`
2	Guide Valve Part Number : `12204KVY901`
3	Clip Valve Guide Part Number : `12206KPL900`
4	Gasket Cylinder Head Part Number : `12251GGC901`
5	Spark Plug MR9C9N (NGK) Part Number : `31919K25601`
5	Spark Plug U27EPR-N9 (DS) Part Number : `31919K25602`
5	Spark Plug CPR9 (NGK) Part Number : `31926KRM841`
6	Sensor Oxygen (NGK) Part Number : `36532K50T01`
7	Sensor Assy Thermostat Oil Part Number : `37750KPH701`
8	Bolt Washer 6X13 Part Number : `90014GGC900`
9	Nut Hex 7MM Part Number : `90201GCC000`
10	Washer 7.2X16X2.5 Part Number : `90401GCC000`
10	Washer 7.2X16X2.5 Part Number : `90402KWW740`
11	Washer Sealing 10MM Part Number : `90443MB0000`
12	Pin Dowe Special 8X14 Part Number : `90701KFM900`
13	Bolt Stud 6X12 Part Number : `92900060120B`
14	Bolt Stud 6X40 Part Number : `92900060400B`
15	Bolt Flange 6X95 Part Number : `957010609500`
