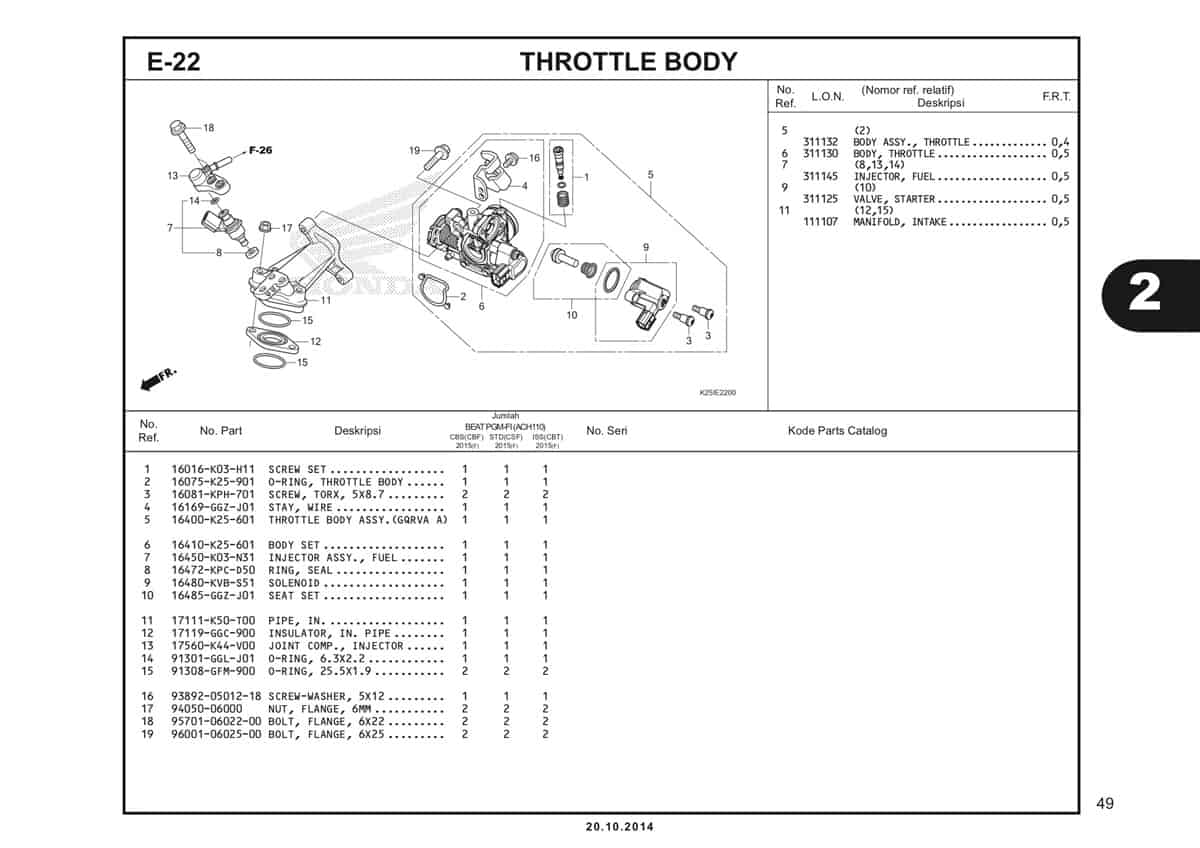

E22 – Throttle Body – Katalog Honda BeAT eSP K25

#	Informasi Produk	Visual
1	Screw Set Part Number : `16016K03H11`
2	O-Ring Throttle Body Part Number : `16075K25901`
3	Screw Torx 5X8.7 Part Number : `16081KPH701`
4	Stay Wire Part Number : `16169GGZJ01`
5	Throttle Body Assy Part Number : `16400K25601`
6	Body Set Part Number : `16410K25601`
7	Injector Assy Fuel Part Number : `16450K03N31`
8	Ring Seal Part Number : `16472KPCD50`
9	Solenoid Set Part Number : `16480KVBS51`
10	Seat Set Part Number : `16485GGZJ01`
11	Pipe Inlet Part Number : `17111K50T00`
12	Insulator Inlet Pipe Part Number : `17119GGC900`
13	Joint Comp Injector Part Number : `17560K44V00`
14	O-Ring 6.3X2.2 Part Number : `91301GGLJ02`
15	O-Ring 25.5X1.9 Part Number : `91308GFM900`
16	Screw Washer 5X12 Part Number : `938920501218`
16	Screw Washer 5X12 Part Number : `938910501208`
17	Nut Flange 6MM Part Number : `9405006000`
17	Nut Flange 6MM Part Number : `90301K64ND0`
18	Bolt Flange 6X22 Part Number : `957010602200`
18	Bolt Flange 6X22 Part Number : `90004GHB660`
19	Bolt Flange 6X25 Part Number : `960010602500`
