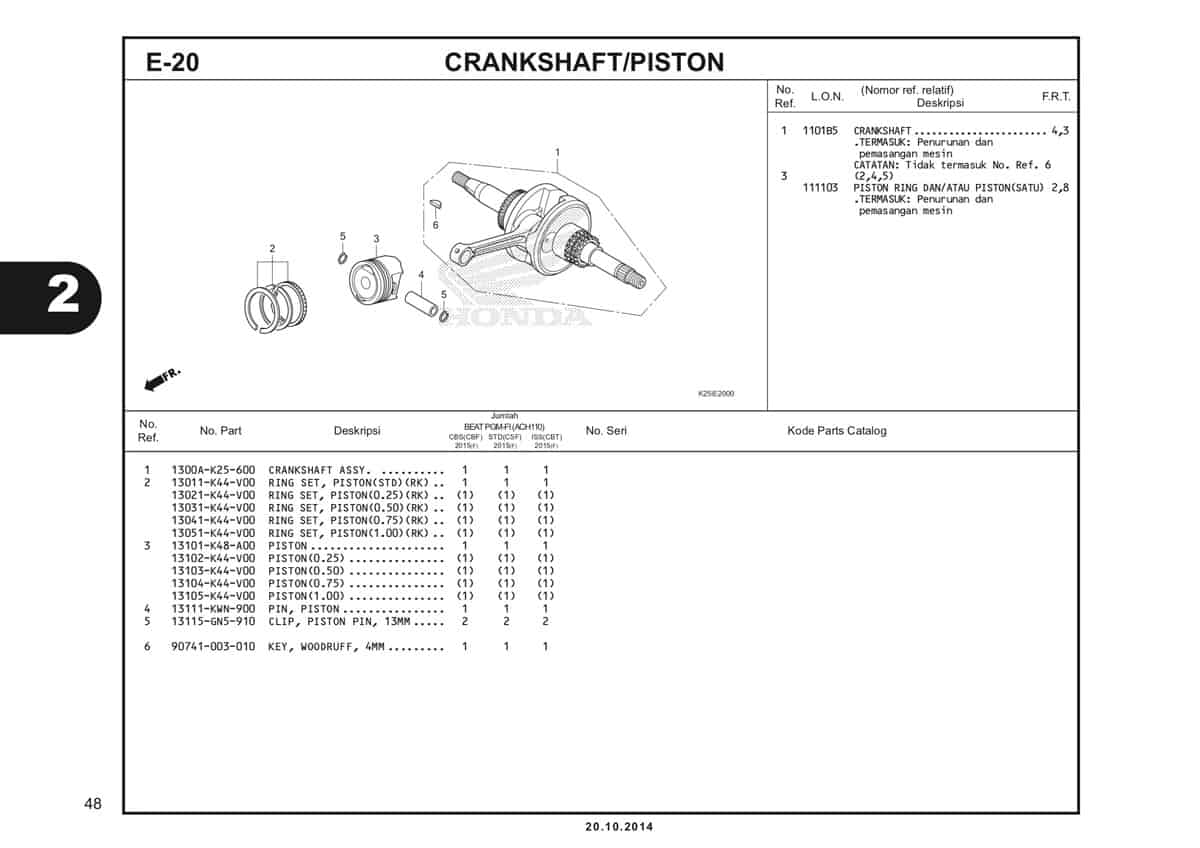

E20 – Crankshaft / Piston – Katalog Honda BeAT eSP K25

#	Informasi Produk	Visual
1	Crankshaft Assy Part Number : `1300AK25600`
1	Crankshaft Assy Part Number : `13000K81N00`
2	Ring Set Piston (STD) Part Number : `13011K44V00`
2	Ring Set Piston (0.25) Part Number : `13021K44V00`
2	Ring Set Piston (0.50) Part Number : `13031K44V00`
2	Ring Set Piston (0.75) Part Number : `13041K44V00`
2	Ring Set Piston (1.00) Part Number : `13051K44V00`
3	Piston (STD) Part Number : `13101K48A00`
3	Piston (0.25) Part Number : `13102K44V00`
3	Piston (0.50) Part Number : `13103K44V00`
3	Piston (0.75) Part Number : `13104K44V00`
3	Piston (1.00) Part Number : `13105K44V00`
4	Pin Piston Part Number : `13111KWN900`
5	Clip Piston Pin 13MM Part Number : `13115GN5910`
6	Key Woodruff 4MM Part Number : `90741003010`
