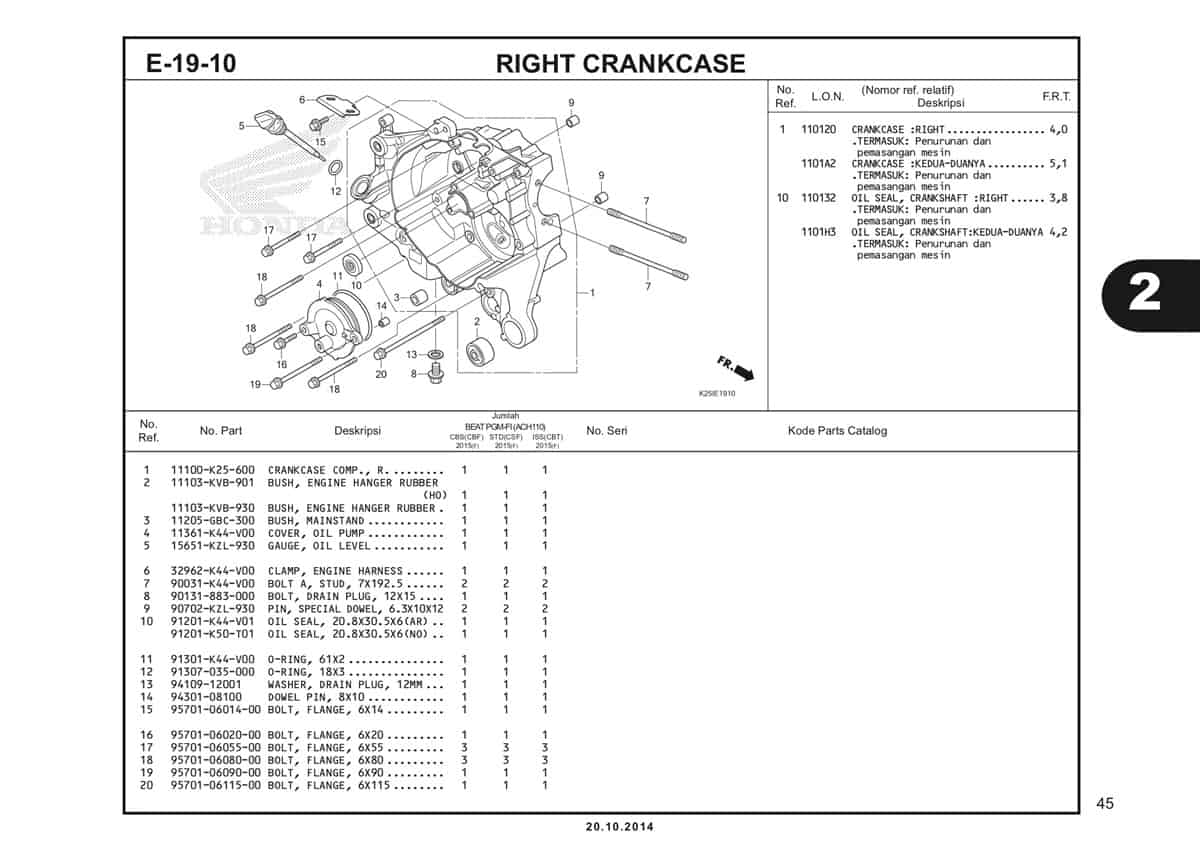

E19 – 10 – Right Crankcase – Katalog Honda BeAT eSP K25

#	Informasi Produk	Visual
1	Crankcase Comp Right Part Number : `11100K25600`
2	Bush Engine Hanger Rubber Part Number : `11103KVB930`
2	Bush Engine Hanger Rubber Part Number : `11103K0JN00`
2	Bush Engine Hanger Rubber Part Number : `11103K0JN21`
3	Bush Main Stand Part Number : `11205GBC300`
4	Cover Oil Pump Part Number : `11361K44V00`
5	Gauge Oil Level Part Number : `15651KZL930`
6	Clamp Engine Harness Part Number : `32962K44V00`
7	Bolt A Stud 7X192.5 Part Number : `90031K44V00`
8	Bolt Drain Plug 12X15 Part Number : `90131883000`
9	Pin Dowel Special 6.3X10X12 Part Number : `90702KZL930`
10	Oil Seal 20.8X30.5X6 Part Number : `91201K44V01`
10	Oil Seal 20.8X30.5X6 Part Number : `91201K50T01`
11	O-Ring 61X2 Part Number : `91301K44V00`
12	O-Ring 18X3 Part Number : `91307035000`
13	Washer Drain Plug 12MM Part Number : `9410912000`
14	Pin Dowel 8X10 Part Number : `9430108100`
15	Bolt Flange 6X14 Part Number : `957010601400`
16	Bolt Flange 6X20 Part Number : `957010602000`
17	Bolt Flange 6X55 Part Number : `957010605500`
18	Bolt Flange 6X80 Part Number : `957010608000`
19	Bolt Flange 6X90 Part Number : `957010609000`
20	Bolt Flange 6X115 Part Number : `957010611500`
