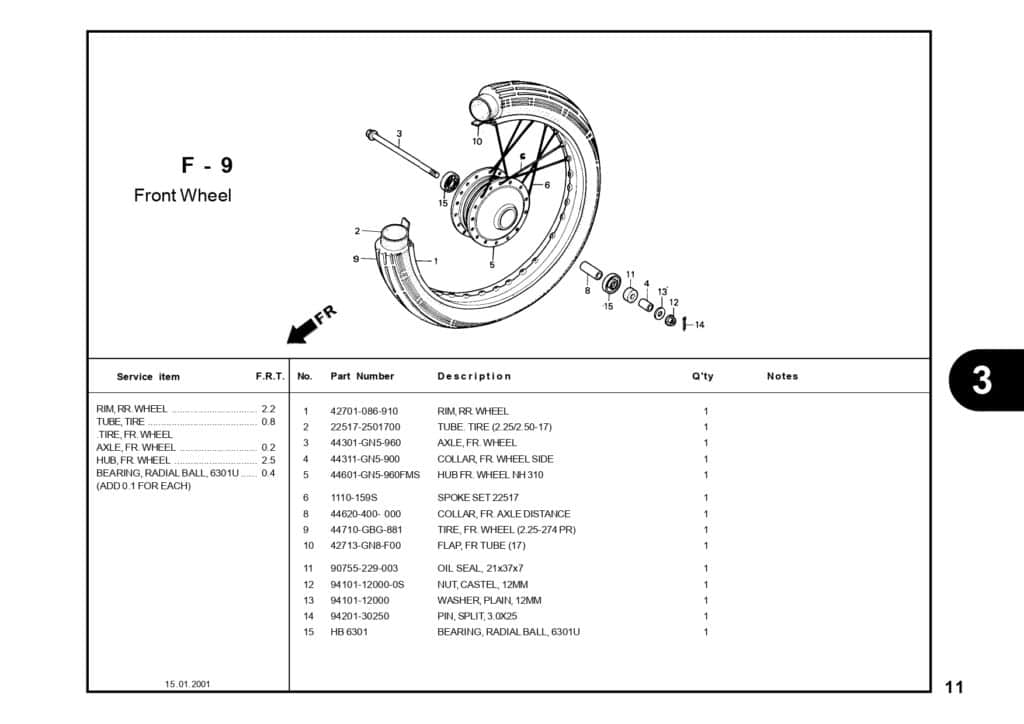

F-9 Front Wheel – Katalog Suku Cadang Honda Astrea Legenda
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
RIM WHEEL 120X17 |
42701086910 |
-
|
| 2 |
225172501700 |
225172501700 |
-
|
| 3 |
AXLE FR WHEEL |
44301GN5960 |
|
| 4 |
COLLAR FR WHEEL |
44311GN5900 |
-
|
| 5 |
44601GN5960FMS |
44601GN5960FMS |
-
|
| 6 |
1110159S |
1110159S |
-
|
| 7 |
44620400 000 |
44620400 000 |
-
|
| 8 |
44710GBG881 |
44710GBG881 |
-
|
| 9 |
42713GN8F00 |
42713GN8F00 |
-
|
| 10 |
90755229004 |
90755229003 |
-
|
| 11 |
94101120000S |
94101120000S |
-
|
| 12 |
WASHER PLAIN /K4 |
9410112000 |
|
| 13 |
PIN,SPLIT 30X25 |
9420130250 |
|
| 14 |
Bearing Ball (SET) |
AHB6301RS |
|
