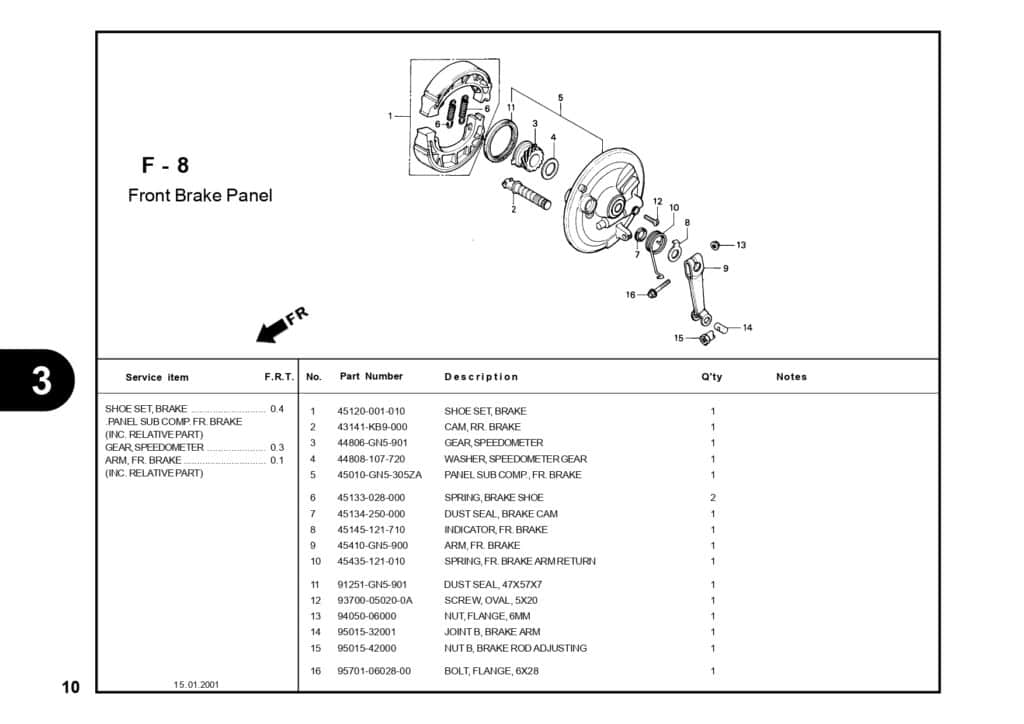

F-8 Front Brake Panel – Katalog Suku Cadang Honda Astrea Legenda
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
SHOE BRAKE SET |
45120001011 |
|
| 2 |
43141KB9000 |
43141KB9000 |
-
|
| 3 |
GEAR SPEEDOMETER |
44806GN5901 |
-
|
| 4 |
WASHER SPDMT GEAR |
44808107720 |
-
|
| 5 |
45010GN5305ZA |
45010GN5305ZA |
-
|
| 6 |
SPRING BRAKE SHOE |
45133028000 |
|
| 7 |
DUST SEAL,BRAKE |
45134250000 |
|
| 8 |
INDICATOR BRAKE |
45145121711 |
-
|
| 9 |
ARM FR BRAKE |
45410GN5900 |
-
|
| 10 |
SPRING BRAKE ARM |
45435121010 |
|
| 11 |
DUST SEAL,47X57X7 |
91251GN5901 |
-
|
| 12 |
SCREW OVAL 5X20 |
93700050200A |
-
|
| 13 |
NUT,FLANGE 6MM |
9405006000 |
|
| 14 |
JOINT BRAKE ARM |
9501532001 |
|
| 15 |
NUT ADJUST |
9501542000 |
|
| 16 |
BOLT FLANGE 6X28 |
957010602800 |
|
