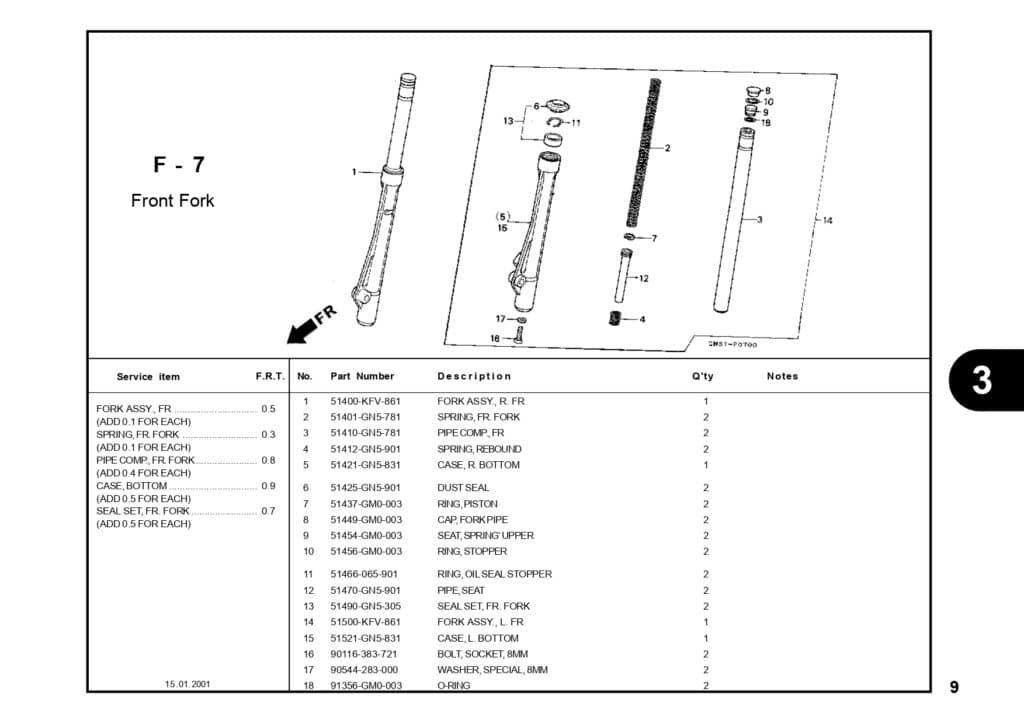

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | 51400KFV861 | 51400KFV861 | - |
| 2 | SPRING A FR FORK | 51401GN5781 |
|
| 3 | PIPE COMP FR FORK | 51410GN5781 |
|
| 4 | SPG REBOUND | 51412GN5901 |
|
| 5 | 51421GN5831 | 51421GN5831 | - |
| 6 | DUST SEAL FR FORK | 51425GN5901 |
|
| 7 | RING,PISTON | 51437GM0003 |
|
| 8 | CAP,FORK PIPE | 51449GM0003 | - |
| 9 | 51454GM0003 | 51454GM0003 | - |
| 10 | RIMG,STOPPER | 51456GM0003 | - |
| 11 | RING OIL SEAL | 51466065901 |
|
| 12 | 51470GN5901 | 51470GN5901 | - |
| 13 | SEAL SET FR FORK | 51490GN5305 |
|
| 14 | 51500KFV861 | 51500KFV861 | - |
| 15 | 51521GN5831 | 51500KFV861 | - |
| 16 | BOLT,SOCKET 8MM | 90116383721 |
|
| 17 | WASHER SPECIAL (8MM) | 90544283000 |
|
| 18 | O RING | 91356GM0003 |
|
