F-4 Steering Handle Handle Cover – Katalog Suku Cadang Honda Astrea Legenda

Gambar Bagian

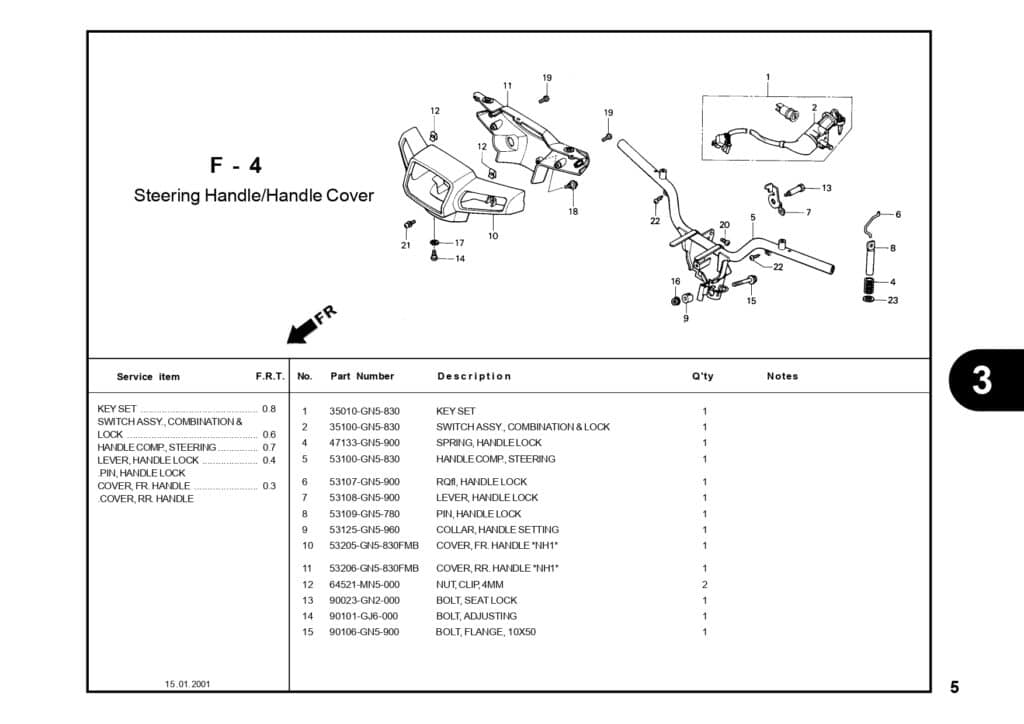

Section Image Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 KEY SET 35010GN5830 KEY SET
2 SWITCH ASSY COMB 35100GN5830 SWITCH ASSY COMB
4 47133GN5900 47133GN5900 -
5 PIPE STRG HANDLE 53100GN5830 -
6 53107GN5900 53107GN5900 -
7 53108GN5900 53108GN5900 -
8 53109GN5780 53109GN5780 -
9 COLLAR HANDLE SET 53125GN5960 -
10 COVER HDL FR(BLK) 53205GN5830FMB -
11 COVER HDL RR 53206GN5830FMB -
12 NUT CLIP 4MM 64521MN5000 NUT CLIP 4MM
13 90023GN2000 90023GN2000 -
14 BOLT ADJUSTING 90101GJ6000 BOLT ADJUSTING
15 BOLT FLANGE 10X50 90106GN5900 BOLT FLANGE 10X50
16 NUT U 10MM 90304GE8003 NUT U 10MM
17 WASHER LOCK 6MM 90307GJ6003 -
18 91508GC800 91508GC800 -
19 935000401606 935000401606 -
20 SCREW,CROSS,6X10 93500060100A -
21 93891 0502000 93891 0502000 -
22 SCREW TAPPING 4X12 9390334380 SCREW TAPPING 4X12
23 94102 10000 94102 10000 -
