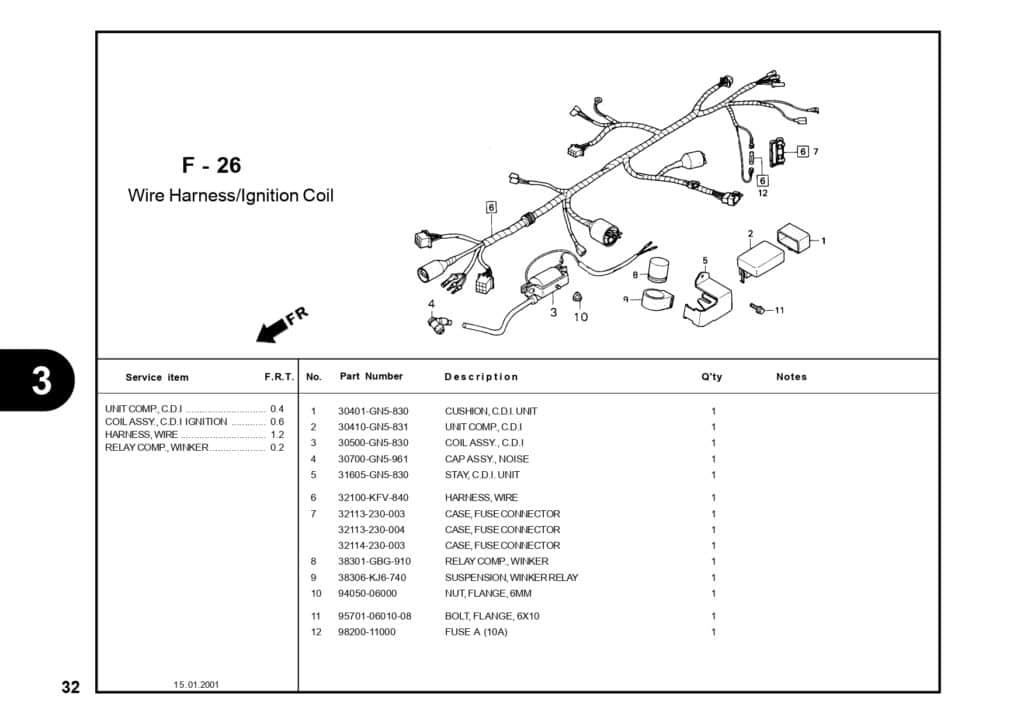

F-26 Wire Harness Ignition Coil – Katalog Suku Cadang Honda Astrea Legenda
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
30401GN5830 |
30401GN5830 |
-
|
| 2 |
30410GN5831 |
30410GN5831 |
-
|
| 3 |
COIL IGN |
30500GN5830 |
|
| 4 |
30700GN5961 |
30700GN5961 |
-
|
| 5 |
31605GN5830 |
31605GN5830 |
-
|
| 6 |
HARNESS,WIRE ASSY/M |
32100KFV840 |
-
|
| 7 |
32113230003 |
32113230003 |
-
|
| 7 |
CASE FUSE |
32113230004 |
-
|
| 7 |
CASE FUSE CONNECT |
32114230003 |
-
|
| 8 |
38301GBG910 |
38301GBG910 |
-
|
| 9 |
SUSPENSION,RELAY |
38306KJ6740 |
|
| 10 |
NUT,FLANGE 6MM |
9405006000 |
|
| 11 |
BOLT FLANGE 6X10 |
957010601008 |
|
| 12 |
FUSE A 10A 25MM |
9820011000 |
-
|
