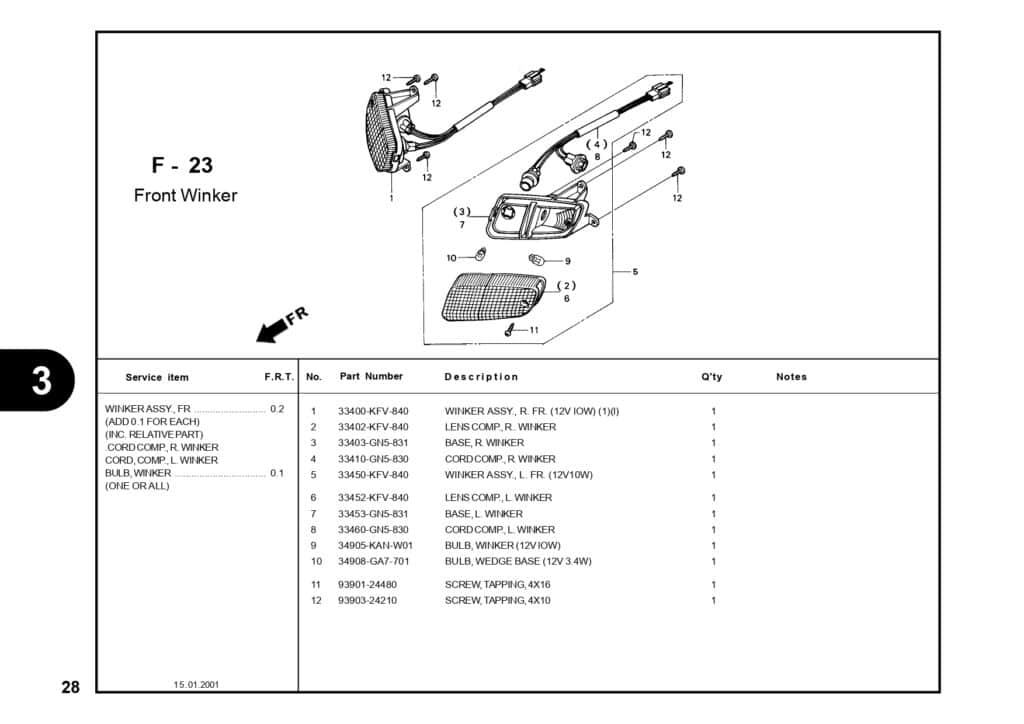

F-23 Front Winker – Katalog Suku Cadang Honda Astrea Legenda
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
WINKER ASSY R FR |
33400KFV840 |
-
|
| 2 |
33402KFV840 |
33402KFV840 |
-
|
| 3 |
33403GN5831 |
33403GN5831 |
-
|
| 4 |
33410GN5830 |
33410GN5830 |
-
|
| 5 |
WINKER ASSY L FR |
33450KFV840 |
-
|
| 6 |
LENS WINKER L FR |
33452KFV840 |
-
|
| 7 |
33453GN5831 |
33453GN5831 |
-
|
| 8 |
33460GN5830 |
33460GN5830 |
-
|
| 9 |
WB BULB (12V10W-YLT13) |
34905KANW01 |
|
| 10 |
BULB W BASE |
34908GA7701 |
|
| 11 |
SCREW,TAPP 4X16 |
9390124480 |
|
| 12 |
SCREW TAPPING 4X10 |
9390324210 |
|
