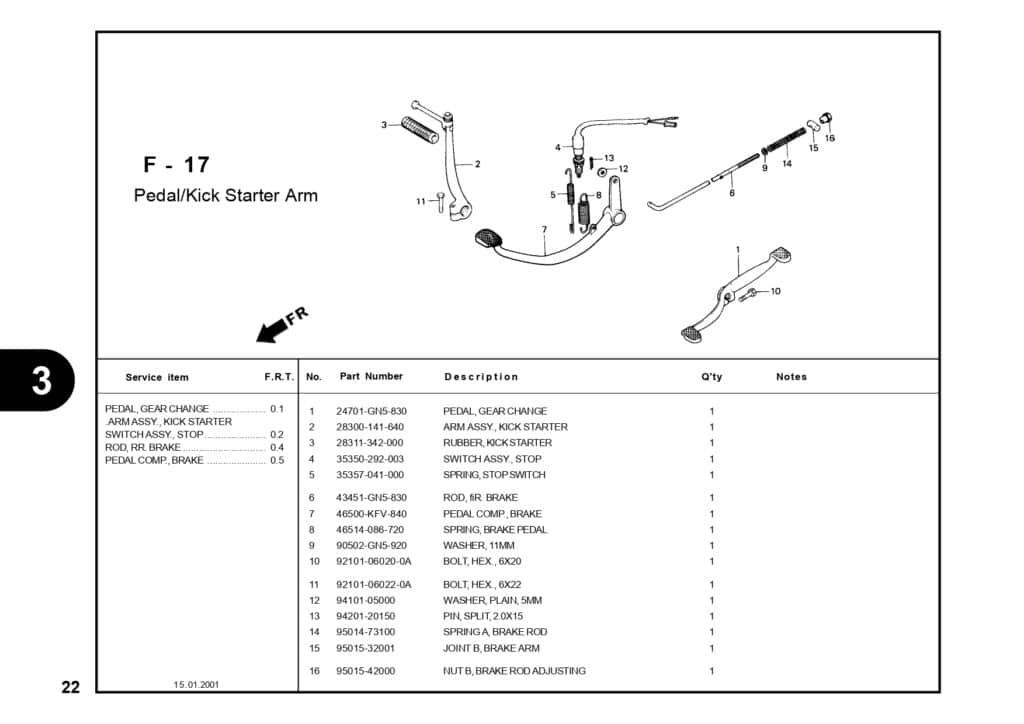

F-17 Pedal Kick Starter Arm – Katalog Suku Cadang Honda Astrea Legenda

#	Informasi Produk	Visual
1	PEDAL GEAR CHANGE Part Number : `24701GN5830`
2	ARM ASSY,KICK STARTER Part Number : `28300141640`
3	RUBBER KICK START Part Number : `28311342000`
4	SWITCH RR STOP Part Number : `35350292003`
5	SPRING SWITCH Part Number : `35357041000`
6	ROD RR BRAKE Part Number : `43451GN5830`
7	PEDAL COMP BRAKE Part Number : `46500KFV840`
8	SPRING BRAKE PEDAL Part Number : `46514086720`
9	90502GN5920 Part Number : `90502GN5920`
10	BOLT,HEX 6X20 Part Number : `92101060200A`
11	BOLT HEX 6X22 Part Number : `92101060220A`
12	WASHER PLAIN /K5 Part Number : `9410105000`
13	PIN COTTER 2.0X15 Part Number : `9420120150`
14	SPRING A BRAKEROD Part Number : `9501473100`
15	JOINT BRAKE ARM Part Number : `9501532001`
16	NUT ADJUST Part Number : `9501542000`
